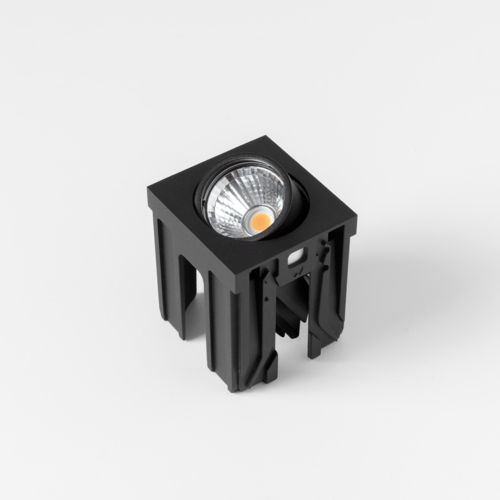

Qbini Qbini Adjustable1x

14160132
LED 2700K Medium DE Black Structure
500mA 8.8Vf 4.4W 358lm 83lm/W CRI90
Qbini Adjustable 1x
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_141601XX_V0.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
Drive Current (mA)
350 500
Delivered Lumens (lm)
269 358
LED Connected Load (W)
3 4.4
Min. LED Fwd Voltage (Vf)
7.5 7.8
Max. LED Fwd Voltage (Vf)
9.5 9.8
Efficacy (lm/W)
90 83
Glare Rating (UGR)
17 18
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
23.7
Electrical Class
III
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Adjustability
H 350° v -30°/+30°
Gross Weight (g)
175
Net Weight (g)
132
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
23.7
Electrical Class
III
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Adjustability
H 350° v -30°/+30°
Gross Weight (g)
175
Net Weight (g)
132
Drive Current (mA)
350 500
Delivered Lumens (lm)
269 358
LED Connected Load (W)
3 4.4
Min. LED Fwd Voltage (Vf)
7.5 7.8
Max. LED Fwd Voltage (Vf)
9.5 9.8
Efficacy (lm/W)
90 83
Glare Rating (UGR)
17 18
Modular logo Go to top Driver 1. Installation Accessories 2. Optical Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Driver

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 4 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 4 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 10
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 10
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 2 3 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 4 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 7 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 3 4 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 2 2 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 2 5 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 7 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 7 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 7 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 7 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 2 5 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 4 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 4 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 11 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 4 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 4 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 4 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 11 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 2 2 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 2 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 2 5 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 7 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 2 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 2 2 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 2 2 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 7 124 x 79 x 22
Show more

2. Installation Accessories

Required
Required
Qbini Box Surface 1x

Qbini Box Surface 1x

13120009
Qbini Box Surface 1x DE White Structure
13120032
Qbini Box Surface 1x DE Black Structure
Qbini Box Surface 2x

Qbini Box Surface 2x

13120109
Qbini Box Surface 2x DE White Structure
13120132
Qbini Box Surface 2x DE Black Structure
13120209
Qbini Box Surface 2x Trailing Edge DI 500mA White Structure
13120232
Qbini Box Surface 2x Trailing Edge DI 500mA Black Structure
13120309
Qbini Box Surface 2x 1-10V/Push-Dim DI 500mA White Structure
13120332
Qbini Box Surface 2x 1-10V/Push-Dim DI 500mA Black Structure
13120409
Qbini Box Surface 2x DALI DI 500mA White Structure
13120432
Qbini Box Surface 2x DALI DI 500mA Black Structure
13120509
Qbini Box Surface 2x 1800-3000K WD Trailing Edge DI 250mA White Structure
13120532
Qbini Box Surface 2x 1800-3000K WD Trailing Edge DI 250mA Black Structure
Qbini Frame Recessed 1x

Qbini Frame Recessed 1x

14171009
Qbini Frame Recessed 1x White Structure
14171032
Qbini Frame Recessed 1x Black Structure
Qbini Frame Recessed 2x

Qbini Frame Recessed 2x

14172009
Qbini Frame Recessed 2x White Structure
14172032
Qbini Frame Recessed 2x Black Structure
Qbini Frame Recessed 3x

Qbini Frame Recessed 3x

14173009
Qbini Frame Recessed 3x White Structure
14173032
Qbini Frame Recessed 3x Black Structure
Qbini Frame Recessed 4x

Qbini Frame Recessed 4x

14174009
Qbini Frame Recessed 4x White Structure
14174032
Qbini Frame Recessed 4x Black Structure
Qbini Frame Recessed Trimless 1x

Qbini Frame Recessed Trimless 1x

14180009
Qbini Frame Recessed Trimless 1x White Matt
14180032
Qbini Frame Recessed Trimless 1x Black Matt
Qbini Frame Recessed Trimless 2x

Qbini Frame Recessed Trimless 2x

14180109
Qbini Frame Recessed Trimless 2x White Matt
14180132
Qbini Frame Recessed Trimless 2x Black Matt
Qbini Frame Recessed Trimless 3x

Qbini Frame Recessed Trimless 3x

14180209
Qbini Frame Recessed Trimless 3x White Matt
14180232
Qbini Frame Recessed Trimless 3x Black Matt
Qbini Frame Recessed Trimless 4x

Qbini Frame Recessed Trimless 4x

14180309
Qbini Frame Recessed Trimless 4x White Matt
14180332
Qbini Frame Recessed Trimless 4x Black Matt

3. Optical Accessories

Crossblade 26

Crossblade 26

14193032
Crossblade 26 Black Matt
Honeycomb 26

Honeycomb 26

14191032
Honeycomb 26 Black Matt
Snoot 26

Snoot 26

14192032
Snoot 26 Black Matt

4. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
    • INST_1410XXXX_1411XXXX_1412XXXX_1413XXXX_1414XXXX_1415XXXX_1416XXXX_1148XXXX_1147XXXX_05.pdf
    • INST_141601XX_141602XX_141603XX_141604XX_141605XX_141606XX_141607XX_141608XX_03.pdf
  • LDT files
  • IES files
  • POLAR files
    • CRI_1012905_CREE1304_935.jpg
    • CRI_1012903_CREE1304_927_01.JPG
    • CRI_1012906_CREE1304_940_01.JPG
    • CRI_1012904_CREE1304_930_01.jpg
    • TM30_1012905_CREE1304_935.jpg
    • TM30_1012904_CREE1304_930_01.jpg
    • TM30_1012906_CREE1304_940_01.JPG
    • TM30_1012903_CREE1304_927_01.JPG
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_141601XX_REC_QBINI-ADJUSTABLE_V0.dwg
    • OBJ_141601XX_REC_QBINI-ADJUSTABLE_01.obj
    • SKP_141601XX_REC_QBINI-ADJUSTABLE_01.skp
    • 3DS_141601XX_REC_QBINI-ADJUSTABLE_01.3ds
    • FBX_141601XX_REC_QBINI-ADJUSTABLE_01.fbx
    • ELABEL_Cree1304_2700K.pdf
    • ELABEL_Cree1304_3000K.pdf
    • ELABEL_Cree1304_4000K.pdf
    • ELABEL_Cree1304_3500K.pdf
    • CE_14160132_04.pdf
    • UKCA_14160132_02.pdf

Compatible with

Show
Show

Qbini Box Surface

Qbini Frame Recessed

Qbini Frame Recessed Trimless

Like what you see and want more?

If you are an interior professional who is looking for lighting to complement their concept, get in touch to request a lighting design or a quote. Are you a consumer? Visit Where to buy to find one of our partners who can provide all the support you require locally.

Request a lighting designRequest a quote

Where to buy

Looking for something?

Type a keyword in the search field and we’ll help you find it

Modular Lighting Instruments logo white

Products

  • Surface mounted lighting for ceiling
  • Recessed lighting for ceiling
  • Suspended lighting for ceiling
  • Profile systems for ceiling
  • Track systems
  • All ceiling lighting
  • Surface mounted lighting for wall
  • Recessed lighting for wall
  • All wall lighting

Projects

  • Residential
  • Office
  • Hospitality
  • Retail
  • Healthcare
  • All projects

Modular Lighting Instruments

  • Services
  • Where to buy
  • Personalised Project Consultation
  • Resources
  • Local offices
  • Showrooms
  • Sustainability
  • Jobs
  • Sitemap

Subscribe to our newsletter

Subscribe ;

Follow us on

  • Privacy notice
  • Cookie notice
  • Terms of use
  • About
  • Global | EN
