Track 48V accessories Track 48V ProfileSurface High

Article numberUS_13455732

Ordering codeT48V-PROF-H-78.7-BLS

Track 48V High Profile Surface 78.7 Black Structure

MATRIX

Spec sheet

SPECSHEET_US_PISTA TRACK 48V HIGH SUSPENDED_05.pdf
SPECSHEET_US_PISTA TRACK 48V HIGH SURFACE_03.pdf

Technical support

Request a quote

Specifications Track system components Downloads

Specifications

Input Voltage: 48vdc

Electrical Class: III
Location Rating: Dry Location
Gross Weight (lb): 6.268
Net Weight (lb): 4.815

Input Voltage: 48vdc

Electrical Class: III
Location Rating: Dry Location
Gross Weight (lb): 6.268
Net Weight (lb): 4.815

1. Track system components

Power Feeds
Endplates
Profile Covers
Connections
Drivers

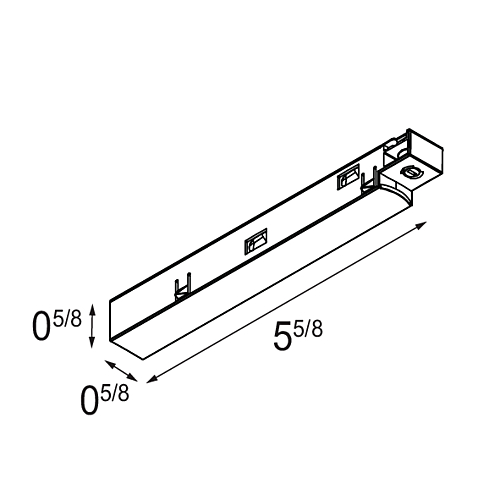

Track 48V Power Feed

US_13410832

Track 48V Power Feed Left Black Structure

US_13410932

Track 48V Power Feed Right Black Structure

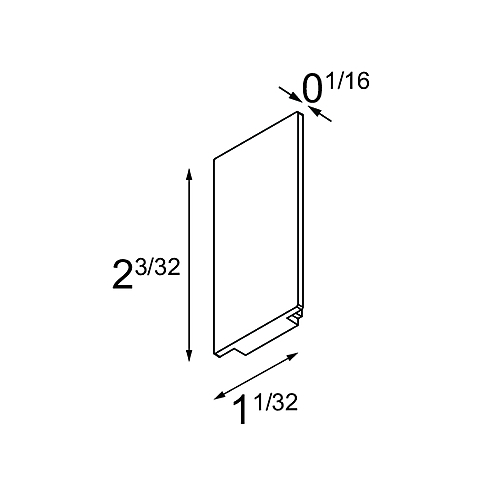

Track 48V Endplate Up/Down

US_12360632

Track 48V High Endplate (2) Black Structure

US_12360832

Track 48V High Endplate Round (2) Black Structure

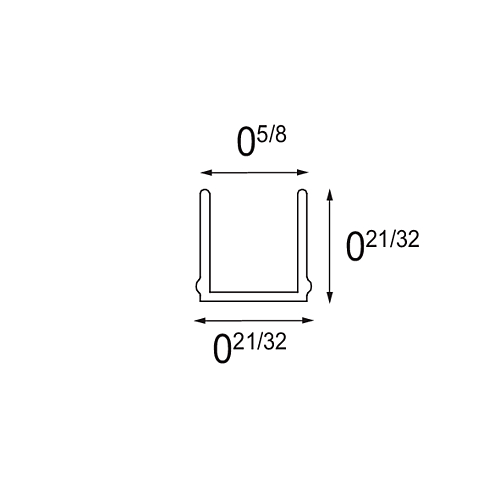

Track 48V Profile Cover

US_13410632

Track 48V Cover 39.4 Black Structure

US_13410732

Track 48V Cover 78.7 Black Structure

US_13456832

Track 48V Cover 39.4 Round Black Structure

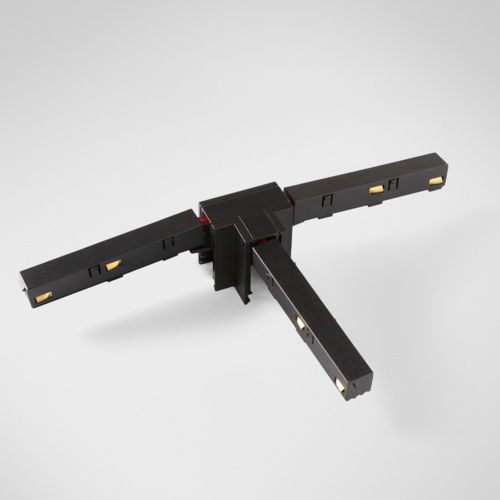

Track 48V Electrical/Mechanical High Connection T

US_13454932

Track 48V Electrical/Mechanical Connection T High Left Black Structure

US_13455032

Track 48V Electrical/Mechanical Connection T High Right Black Structure

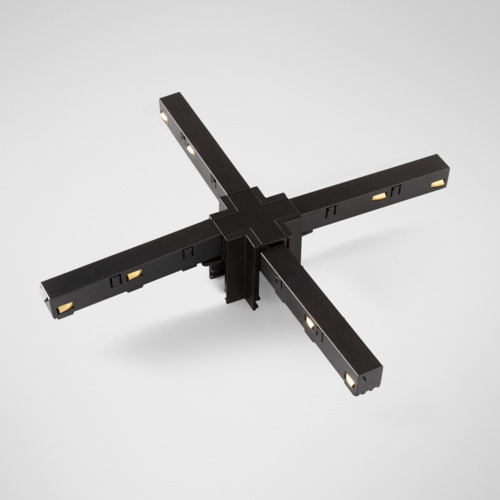

Track 48V Electrical/Mechanical High Connection X

US_13455132

Track 48V Electrical/Mechanical Connection X High Black Structure

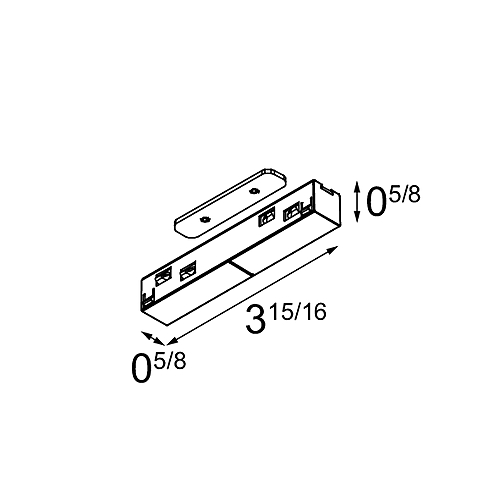

Track 48V Electrical/Mechanical Recessed Connection 180°

US_13411932

Track 48V Connection 180° Electrical/Mechanical (For Recessed Mounting) Black Structure

Track 48V Remote LED Driver 48V

US_13419100

LED Driver Constant Voltage 48V 96W

US_13419200

LED Driver Constant Voltage 48V 60W

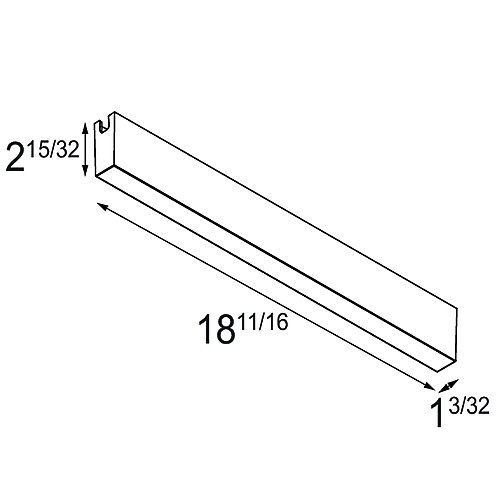

Track 48V Surface Mounted Gear For Surface Installation

US_13418432

LED Driver Constant Voltage 48V Surface (For Surface Mounting) 96W Black Structure

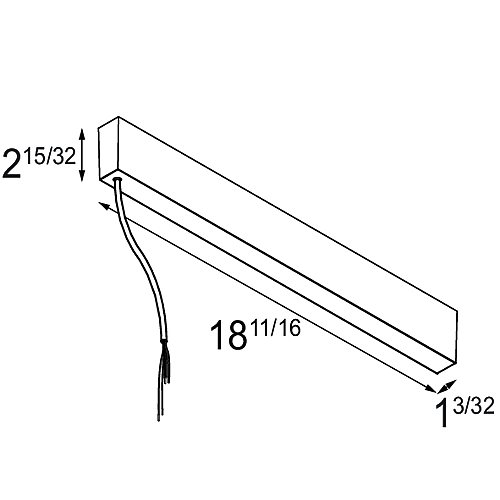

Track 48V Surface Mounted Gear For Suspended Installation

US_13418532

LED Driver Constant Voltage 48V Surface (For Suspended Mounting) 96W Black Structure

Downloads

Download all

General

- SPECSHEET_US_PISTA TRACK 48V HIGH SUSPENDED_05.pdf
- SPECSHEET_US_PISTA TRACK 48V HIGH SURFACE_03.pdf
- INST_US_134556XX_US_134557XX_US_134558XX_01.pdf
- INST_US_OVERVIEW_PISTA HIGH SUSPENDED_01.pdf
Line drawings
- INST_US_OVERVIEW_PISTA HIGH SURFACE_03.pdf
- INST_US_OVERVIEW_PISTA HIGH SUSPENDED_05.pdf

2D – 3D files

3DS files
FBX files
OBJ files
SKP files
- CAD3D_123601XX_PISTA-UP-DOWN-TRACK-2M_01.dwg
- CAD2D_SURF_PISTA-PROFILES_01.dwg
