12411432

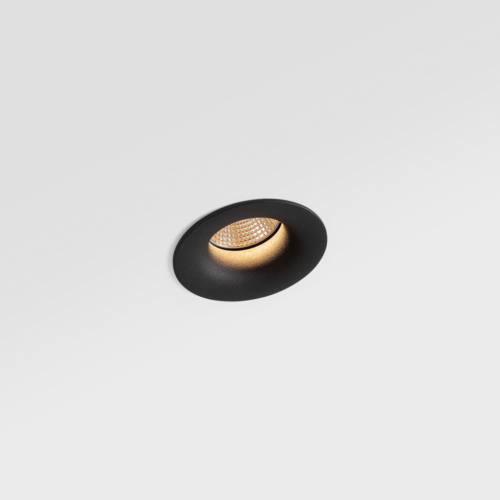

LED 3000K Medium DE Black Structure

500mA 14.4Vf 7.2W 627lm 87lm/W CRI90

Especificaciones

LINED_12411XXX_SURF_SMART CAKE_LED_V0.pdf

Cut-Out Size (mm): ø70
Mounting Depth (mm): 100
Light Source Type: LED
Lamp Included: Sí
Input Voltage: Driver de corriente constante requerido
IP Rating: 20

Drive Current (mA)

350

500

700

Delivered Lumens (lm)

468

627

807

LED Connected Load (W)

7.2

10.6

Min. LED Fwd Voltage (Vf)

13.2

13.7

14.2

Max. LED Fwd Voltage (Vf)

15.4

Efficacy (lm/W)

Glare Rating (UGR)

3500K bajo pedido

LED Type: COB LED
Light Sources: 1
Colour Temperature: 3000K
Binning (SDCM): 2
Lifetime: L80B10 @50.000 horas
Measured Beam Angle (°): 22

CIE Flux Code: 100, 100, 100, 100, 81
Electrical Class: III
Glow Wire Rating: 960°C
Interio/Exterior: Interior
Adjustability: Not applicable
Gross Weight (g): 260

Net Weight (g): 165

Cut-Out Size (mm): ø70
Mounting Depth (mm): 100
Light Source Type: LED
Lamp Included: Sí
Input Voltage: Driver de corriente constante requerido
IP Rating: 20

LED Type: COB LED
Light Sources: 1
Colour Temperature: 3000K
Binning (SDCM): 2
Lifetime: L80B10 @50.000 horas
Measured Beam Angle (°): 22

CIE Flux Code: 100, 100, 100, 100, 81
Electrical Class: III
Glow Wire Rating: 960°C
Interio/Exterior: Interior
Adjustability: Not applicable
Gross Weight (g): 260

Net Weight (g): 165

3500K bajo pedido

Drive Current (mA)

350

500

700

Delivered Lumens (lm)

468

627

807

LED Connected Load (W)

7.2

10.6

Min. LED Fwd Voltage (Vf)

13.2

13.7

14.2

Max. LED Fwd Voltage (Vf)

15.4

Efficacy (lm/W)

Glare Rating (UGR)

1. Drivers

500mA

Article no.	Driver	Productos mínimos	Productos máximos	Dimensión
11630130	LED Driver Constant Current Deep Dim DALI 500mA 20W	1	2	160 x 41.5 x 30.5
11630430	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W	1	2	160 x 41.5 x 30.5
11630730	LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output	1	6	152.5 x 76.2 x 30.1
11631030	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD	1	6	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	1	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	3	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	4	124 x 79 x 22
12404330	LED Driver Constant Current Trailing Edge 500mA 20W	2	2	111 x 52 x 22
12404930	LED Driver Constant Current Trailing Edge 500mA 5-10W	1	1	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	3	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	4	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	4	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	4	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	4	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	3	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-700mA 10-20W	1	2	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	2	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	7	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	2	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	2	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	3	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	7	124 x 79 x 22
12409130	LED Driver Constant Current 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
12409430	LED Driver Constant Current DALI 500mA 10W	1	1	145 x 31 x 21
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	3	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	4	124 x 79 x 22
13550030	LED Driver Constant Current Non-Dim 500mA 12W	1	1	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	1	1	128.8 x 32 x 25.7
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	4	124 x 79 x 22

Adecuado para esta aplicación. No se requieren accesorios de instalación. Siga las instrucciones de instalación para ver cómo empotrar el producto.

Recessed Ring

12500230

Ring Recessed 82 1x

Adecuado para esta aplicación. No se requieren accesorios de instalación. Siga las instrucciones de instalación para ver cómo empotrar el producto.

Ladrillo visto
Hormigón expuesto
Ladrillo/Hormigón enlucido

Adecuado para esta aplicación. No se requieren accesorios de instalación. Siga las instrucciones de instalación para ver cómo empotrar el producto.

Installation Housing

10889830

Installation Housing 192x190x130

Plaster Kit

12290130

Plaster Kit 190X190 - 70 1x

12291030

Plaster Kit 210x190 - 70 2x

Hormigón
Azulejo
Madera

¡Cuidado! No apto para 'Hormigón'

¡Cuidado! No apto para 'Azulejo'

¡Cuidado! No apto para 'Madera'

3. Accesorios Decorativo

Smart Mask 82 1x

12500009

Mask Smart 82 1x White Structure

12500014

Mask Smart 82 1x Bronze Brushed

12500015

Mask Smart 82 1x Champagne Brushed

12500016

Mask Smart 82 1x Silver Bronze Brushed

12500032

Mask Smart 82 1x Black Structure

12500043

Mask Smart 82 1x Black Brushed

12500046

Mask Smart 82 1x Gold Matt

Smart Mask 82 2x

12500109

Mask Smart 82 2x White Structure

12500114

Mask Smart 82 2x Bronze Brushed

12500115

Mask Smart 82 2x Champagne Brushed

12500116

Mask Smart 82 2x Silver Bronze Brushed

12500132

Mask Smart 82 2x Black Structure

12500143

Mask Smart 82 2x Black Brushed

12500146

Mask Smart 82 2x Gold Matt

4. Accesorios Iluminación Inteligente

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

5. Unidades de Respaldo de Emergencia

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
