13333209

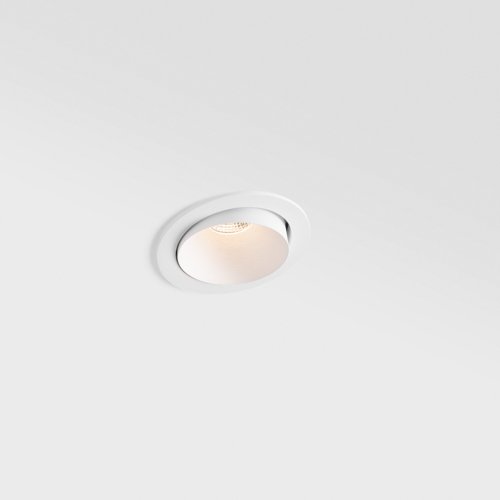

LED 1800-3000K WD Flood DE White Structure

350mA 17Vf 6W 489lm 81lm/W CRI95

Specifications

Cut-Out Size (mm): ø76
Mounting Depth (mm): 100
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

Drive Current (mA)

350

Delivered Lumens (lm)

489

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

15.5

Max. LED Fwd Voltage (Vf)

18.5

Efficacy (lm/W)

Glare Rating (UGR)

3500K on request

LED Type: LED COB
Light Sources: 1
Colour Temperature: 1800-3000K (Warm Dim)
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 45.5

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 355° v 25°
Gross Weight (g): 235
Net Weight (g): 165

Cut-Out Size (mm): ø76
Mounting Depth (mm): 100
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED COB
Light Sources: 1
Colour Temperature: 1800-3000K (Warm Dim)
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 45.5

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 355° v 25°
Gross Weight (g): 235
Net Weight (g): 165

3500K on request

Drive Current (mA)

350

Delivered Lumens (lm)

489

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

15.5

Max. LED Fwd Voltage (Vf)

18.5

Efficacy (lm/W)

Glare Rating (UGR)

1. Drivers

350mA

Article no.	Driver	Min products	Max products	Dimension
11630030	LED Driver Constant Current Deep Dim DALI 350mA 20W	1	2	160 x 41.5 x 30.5
11630330	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W	1	2	160 x 41.5 x 30.5
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	2	111 x 35 x 20
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	2	2	111 x 52 x 22
12404830	LED Driver Constant Current Trailing Edge 350mA 5-10W	1	1	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	4	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	4	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	2	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	2	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	2	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	2	6	124 x 79 x 22
12409130	LED Driver Constant Current 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
12409330	LED Driver Constant Current DALI 350mA 10W	1	1	145 x 31 x 21
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	2	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	4	124 x 79 x 22
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13551930	LED Driver Constant Current Trailing Edge 200-350mA 4-14W	2	2	128.8 x 32 x 25.7
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	1	1	128.8 x 32 x 25.7
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	4	124 x 79 x 22

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Recessed Ring

12500230

Ring Recessed 82 1x

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Exposed Brick
Exposed Concrete
Plastered Brick/Concrete

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Installation Housing

10889830

Installation Housing 192x190x130

Plaster Kit

12290830

Plaster Kit 190X190 - 76 1x

12291430

Plaster Kit 210x190 - 76 2x

Concrete
Tile
Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Decorative Accessories

Smart Mask 82 1x

12500009

Mask Smart 82 1x White Structure

12500014

Mask Smart 82 1x Bronze Brushed

12500015

Mask Smart 82 1x Champagne Brushed

12500016

Mask Smart 82 1x Silver Bronze Brushed

12500032

Mask Smart 82 1x Black Structure

12500043

Mask Smart 82 1x Black Brushed

12500046

Mask Smart 82 1x Gold Matt

Smart Mask 82 2x

12500109

Mask Smart 82 2x White Structure

12500114

Mask Smart 82 2x Bronze Brushed

12500115

Mask Smart 82 2x Champagne Brushed

12500116

Mask Smart 82 2x Silver Bronze Brushed

12500132

Mask Smart 82 2x Black Structure

12500143

Mask Smart 82 2x Black Brushed

12500146

Mask Smart 82 2x Gold Matt

4. Smart Lighting Accessories

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
