Smart Smart Kup Recessed115 1x

12761409
LED 3000K Spot DE White Structure
500mA 31.3Vf 15.7W 1819lm 116lm/W CRI90
Smart Kup Recessed 115 1x
Data sheet Technical support
Request a quote
Specifications
1 Drivers 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Downloads

Specifications
LINED_127610XX_REC_SMART-KUP-115_LED_V0.pdf
Cut-Out Size (mm)
ø108
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
Drive Current (mA)
350 500 700
Luminous flux per lamp (lm)
1333 1819 2380
LED Connected Load (W)
10.7 15.7 22.5
Min. LED Fwd Voltage (Vf)
28.3 29 29.7
Max. LED Fwd Voltage (Vf)
32.9 33.6 34.5
Efficacy (lm/W)
125 116 106
Glare Rating (UGR)
18 19 20
  • 3500K on request
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours

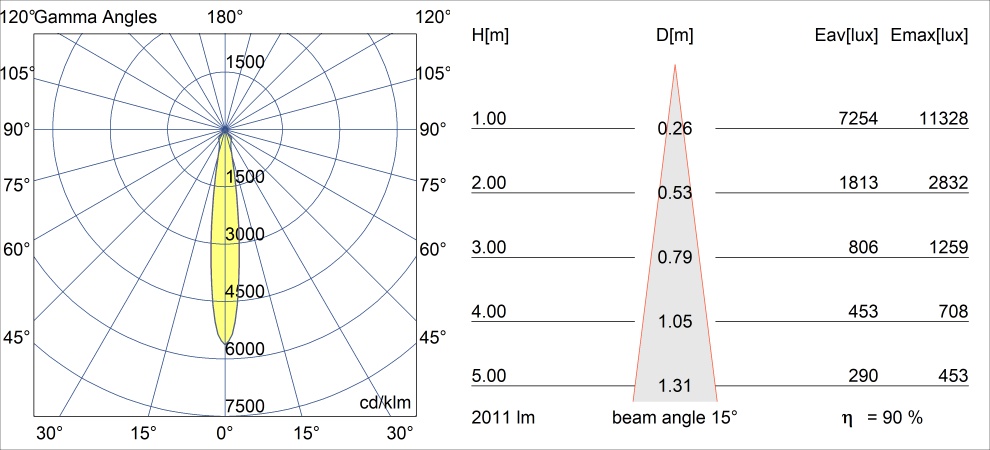

Measured Beam Angle (°)
15
CIE Flux Code
97, 99, 100, 100, 90
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
463
Net Weight (g)
373
Cut-Out Size (mm)
ø108
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
15
CIE Flux Code
97, 99, 100, 100, 90
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
463
Net Weight (g)
373
  • 3500K on request
Drive Current (mA)
350 500 700
Luminous flux per lamp (lm)
1333 1819 2380
LED Connected Load (W)
10.7 15.7 22.5
Min. LED Fwd Voltage (Vf)
28.3 29 29.7
Max. LED Fwd Voltage (Vf)
32.9 33.6 34.5
Efficacy (lm/W)
125 116 106
Glare Rating (UGR)
18 19 20
Modular logo Go to top Drivers 1. Installation Accessories 2. Decorative Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Drivers

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 1 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 1 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 2
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 2
152.5 x 76.2 x 30.1
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 1 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 2 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 1 1 111 x 52 x 22
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 1 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 2 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 2 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 2 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 2 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 1 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 1 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 1 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 3 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 1 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 1 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 1 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 3 124 x 79 x 22
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 1 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 2 124 x 79 x 22
13553030 LED Driver Constant Current Non-Dim 450-600mA 25W 1 1 129 x 43 x 23
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 2 124 x 79 x 22
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Recessed Ring

Recessed Ring

12810230
Ring Recessed 115 1x
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. In-situ concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Installation Housing

Installation Housing

10889830
Installation Housing 192x190x130
Plaster Kit

Plaster Kit

12290530
Plaster Kit 190X190 - 108 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Decorative Accessories

Smart Mask 115 1x

Smart Mask 115 1x

12810009
Mask Smart 115 1x White Structure
12810032
Mask Smart 115 1x Black Structure
12810046
Mask Smart 115 1x Gold Matt
Smart Mask 115 2x

Smart Mask 115 2x

12810109
Mask Smart 115 2x White Structure
12810132
Mask Smart 115 2x Black Structure
12810146
Mask Smart 115 2x Gold Matt

4. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE
