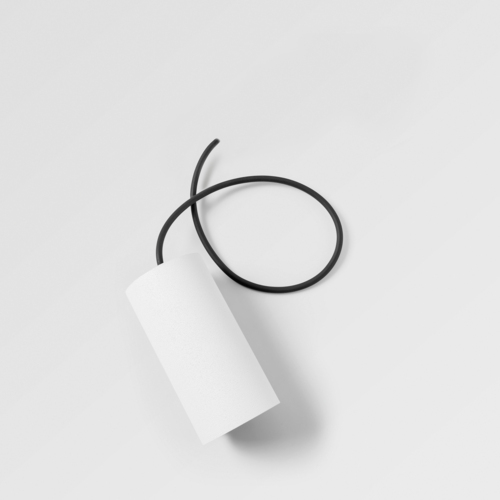

Minude Minude Kompas Suspended45 1x

11465209
LED 2700K Medium DE White Structure
500mA 16.9Vf 8.5W 598lm 70lm/W CRI90
Product compatibility matrix
Minude Kompas Suspended 45 1x
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_114652XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
Drive Current (mA)
350 500
Delivered Lumens (lm)
444 598
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
78 70
Glare Rating (UGR)
12 13
  • Longer suspension cable on request (standard length is 2 meter)
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
29.6
CIE Flux Code
98, 100, 100, 100, 62
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
291
Net Weight (g)
229
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
29.6
CIE Flux Code
98, 100, 100, 100, 62
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
291
Net Weight (g)
229
  • Longer suspension cable on request (standard length is 2 meter)
Drive Current (mA)
350 500
Delivered Lumens (lm)
444 598
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
78 70
Glare Rating (UGR)
12 13
Modular logo Go to top Driver 1. Installation Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Driver

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 2 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 2 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 4
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 1 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 2 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 3 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 2 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 3 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 3 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 6 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 2 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 6 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 2 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 3 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 1 1 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 3 124 x 79 x 22
Show more

2. Installation Accessories

Required
Required
Kompas Round Surface 340

Kompas Round Surface 340

13570009
Kompas Round Surface 340 60W Trailing Edge DI 350mA White Structure
13570032
Kompas Round Surface 340 60W Trailing Edge DI 350mA Black Structure
13570109
Kompas Round Surface 340 100W 1-10V DI 350mA White Structure
13570132
Kompas Round Surface 340 100W 1-10V DI 350mA Black Structure
13570209
Kompas Round Surface 340 100W DALI DI 350mA White Structure
13570232
Kompas Round Surface 340 100W DALI DI 350mA Black Structure
13570309
Kompas Round Surface 340 60W Trailing Edge DI 500mA White Structure
13570332
Kompas Round Surface 340 60W Trailing Edge DI 500mA Black Structure
13570409
Kompas Round Surface 340 100W 1-10V DI 500mA White Structure
13570432
Kompas Round Surface 340 100W 1-10V DI 500mA Black Structure
13570509
Kompas Round Surface 340 100W DALI DI 500mA White Structure
13570532
Kompas Round Surface 340 100W DALI DI 500mA Black Structure
13570609
Kompas Round Surface 340 DE White Structure
13570632
Kompas Round Surface 340 DE Black Structure
13570809
Kompas Round Surface 340 30W Trailing Edge DI 350mA White Structure
13570832
Kompas Round Surface 340 30W Trailing Edge DI 350mA Black Structure
13570909
Kompas Round Surface 340 50W 1-10V DI 350mA White Structure
13570932
Kompas Round Surface 340 50W 1-10V DI 350mA Black Structure
13571009
Kompas Round Surface 340 50W DALI DI 350mA White Structure
13571032
Kompas Round Surface 340 50W DALI DI 350mA Black Structure
13571109
Kompas Round Surface 340 30W Trailing Edge DI 500mA White Structure
13571132
Kompas Round Surface 340 30W Trailing Edge DI 500mA Black Structure
13571209
Kompas Round Surface 340 50W 1-10V DI 500mA White Structure
13571232
Kompas Round Surface 340 50W 1-10V DI 500mA Black Structure
13571309
Kompas Round Surface 340 50W DALI DI 500mA White Structure
13571332
Kompas Round Surface 340 50W DALI DI 500mA Black Structure
13571409
Kompas Round Surface 340 100W Casambi DI 350mA White Structure
13571432
Kompas Round Surface 340 100W Casambi DI 350mA Black Structure
13571509
Kompas Round Surface 340 100W Casambi DI 500mA White Structure
13571532
Kompas Round Surface 340 100W Casambi DI 500mA Black Structure
13571609
Kompas Round Surface 340 50W Casambi DI 350mA White Structure
13571632
Kompas Round Surface 340 50W Casambi DI 350mA Black Structure
13571709
Kompas Round Surface 340 50W Casambi DI 500mA White Structure
13571732
Kompas Round Surface 340 50W Casambi DI 500mA Black Structure

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD2D_MINUDE-SUSP-KOMPAS_01.dwg
    • CAD3D_114652XX_MINUDE-45-KOMPAS_01.dwg
    • FBX_114652XX_MINUDE-45-KOMPAS_01.fbx
    • OBJ_114652XX_MINUDE-45-KOMPAS_01.obj
    • SKP_114652XX_MINUDE-45-KOMPAS_01.skp
    • 3DS_114652XX_MINUDE-45-KOMPAS_01.3ds
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf
    • REACH_MINUDE_06.pdf
    • CE_11465209_04.pdf
    • UKCA_11465209_01.pdf
    • UKCA_11465209_02.pdf
  • Product compatibility matrix

Compatible with

Show
Show

Kompas Round Surface

Like what you see and want more?

If you are an interior professional who is looking for lighting to complement their concept, get in touch to request a lighting design or a quote. Are you a consumer? Visit Where to buy to find one of our partners who can provide all the support you require locally.

Request a lighting designRequest a quote

Where to buy

Looking for something?

Type a keyword in the search field and we’ll help you find it

Modular Lighting Instruments logo white

Products

  • Surface mounted lighting for ceiling
  • Recessed lighting for ceiling
  • Suspended lighting for ceiling
  • Profile systems for ceiling
  • Track systems
  • All ceiling lighting
  • Surface mounted lighting for wall
  • Recessed lighting for wall
  • All wall lighting

Projects

  • Residential
  • Office
  • Hospitality
  • Retail
  • Healthcare
  • All projects

Modular Lighting Instruments

  • Services
  • Where to buy
  • Personalised Project Consultation
  • Resources
  • Local offices
  • Showrooms
  • Sustainability
  • Jobs
  • Sitemap

Subscribe to our newsletter

Subscribe ;

Follow us on

  • Privacy notice
  • Cookie notice
  • Terms of use
  • About
  • Global | EN
