Track 48V accessories Track 48V ProfileRecessed

Article numberUS_13412932

Ordering codeT48V-PROF-RFL-78.7-BLS

78.7 Black Structure

MATRIX

Spec sheet Technical support

Request a quote

Specifications Track system components Downloads

Specifications

LINED_US_134124XX_US_134129XX_US_134134XX_01.pdf

Cut-Out Size (in): W 1 7/32
Input Voltage: 48vdc

Location Rating: Dry Location
Gross weight (g): 3081
Gross Weight (lb): 6.792
Net Weight (g): 2076
Net Weight (lb): 4.577

Cut-Out Size (in): W 1 7/32
Input Voltage: 48vdc

Location Rating: Dry Location
Gross weight (g): 3081
Gross Weight (lb): 6.792
Net Weight (g): 2076
Net Weight (lb): 4.577

1. Track system components

Power Feeds
Endplates
Profile Covers
Connections
Drivers

Track 48V Power Feed

US_13410832

Track 48V Power Feed Left Black Structure

US_13410932

Track 48V Power Feed Right Black Structure

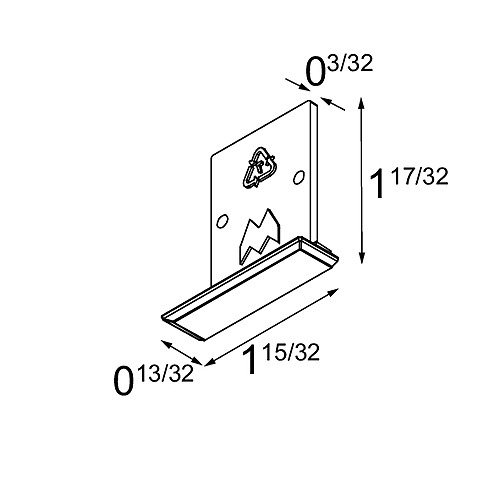

Track 48V Endplate Recessed

US_13413932

Track 48V Endplate Recessed (2) Black Structure

US_13456532

Track 48V Endplate Round (For Recessed Mounting) (2) Black Structure

Track 48V Profile Cover

US_13410632

Track 48V Cover 39.4 Black Structure

US_13410732

Track 48V Cover 78.7 Black Structure

US_13456832

Track 48V Cover 39.4 Round Black Structure

Track 48V Electrical/Mechanical Recessed Connection 180°

US_13411932

Track 48V Connection 180° Electrical/Mechanical (For Recessed Mounting) Black Structure

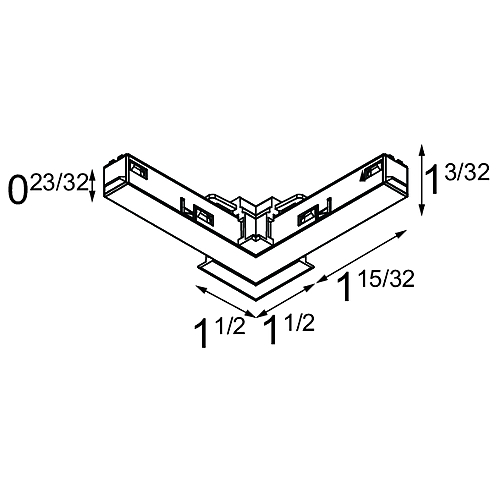

Track 48V Electrical/Mechanical Recessed Connection 90°

US_13414432

Track 48V Connection 90° Electrical/Mechanical (For Recessed Mounting) Inside Black Structure

US_13414932

Track 48V Connection 90° Electrical/Mechanical (For Recessed Mounting) Outside Black Structure

Track 48V Remote LED Driver 48V

US_13419100

LED Driver Constant Voltage 48V 96W

US_13419200

LED Driver Constant Voltage 48V 60W

Downloads

Download all

General

Data sheets
Installation instructions
Line drawings
Matrix

2D – 3D files

- CAD2D_SURF_PISTA-PROFILES_01.dwg
- CAD3D_134192XX_PISTA-REC-2M_01.dwg
