Smart Tube Smart Tube Surface3.2 XL 1x

Article numberUS_12843132

Ordering codeSMARU-S-3.2-XL-1X-DP-010P-DI-500-BLS

Damp Location 0-10V and phase (LE + TE) DI 500mA Black Structure

Spec sheet

SPECSHEET_US_SMART LOTIS TUBE SURFACE 3.2_06.pdf
SPECSHEET_US_SMART CAKE TUBE SURFACE 3.2_06.pdf
SPECSHEET_US_SMART KUP TUBE SURFACE 3.2_06.pdf

Technical support

Request a quote

Specifications Installation Accessories Downloads

Specifications

Lamp Included: No
Input Voltage: 120-277v universal

Dimming Protocol: 0-10v and phase (le + te)
Driver Current Set: 500mA
Location Rating: Damp Location
Gross Weight (lb): 3
Net Weight (lb): 2.7

Lamp Included: No
Input Voltage: 120-277v universal

Dimming Protocol: 0-10v and phase (le + te)
Driver Current Set: 500mA
Location Rating: Damp Location
Gross Weight (lb): 3
Net Weight (lb): 2.7

1. Installation Accessories

Backplate 3x2

US_12054209

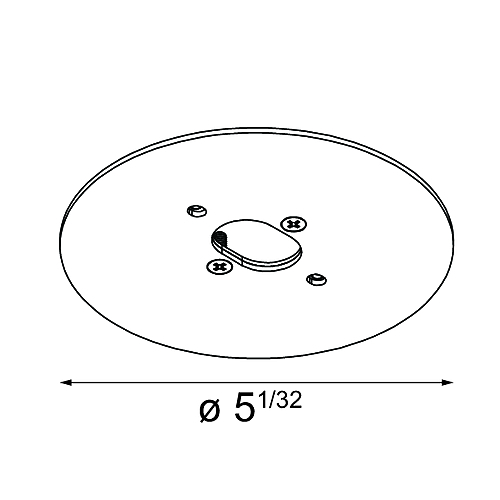

Backplate 3X2 Smart surface tubed 3.2 X-large white struc

US_12054232

Backplate 3X2 Smart surface tubed 3.2 X-large black struc

Backplate 4x4

US_12054909

Backplate 4X4 Smart surface tubed 3.2 X-large/tubed suspension 3.2-4.5 white struc

US_12054932

Backplate 4X4 Smart surface tubed 3.2 X-large/tubed suspension 3.2-4.5 black struc

Downloads

Download all

Installation instructions

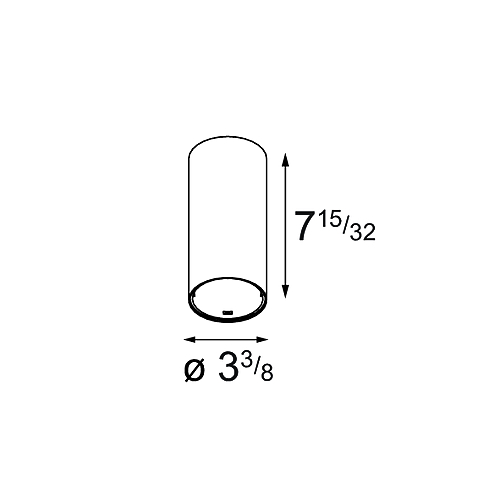

Line drawings
- CAD2D_REC_US_SMART-LOTIS_01.dwg
- CAD2D_US_SMART-SURFACE-TUBED-3-2_V0.dwg
