Smart Smart Lotis Recessed3.2 1x

Article numberUS_12440146
Ordering codeDST_SMART-L-R-3.2-1X-FG-35F-WT-DE-GOMT
Frosted Glass LED 3500K Flood Wet Location DE Gold Matt
500mA 14.4Vf 7.2W 702lm 98lm/W CRI90

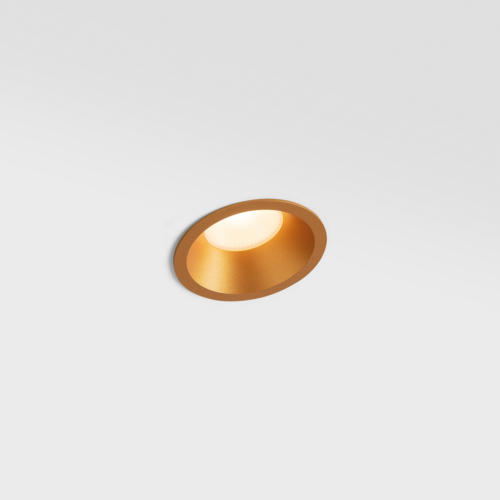

Smart Lotis Recessed 3.2 1x
Data sheet IES file download
Request a quote
Specifications
1 Installation Accessories 2 Decorative Accessories
Downloads

Specifications

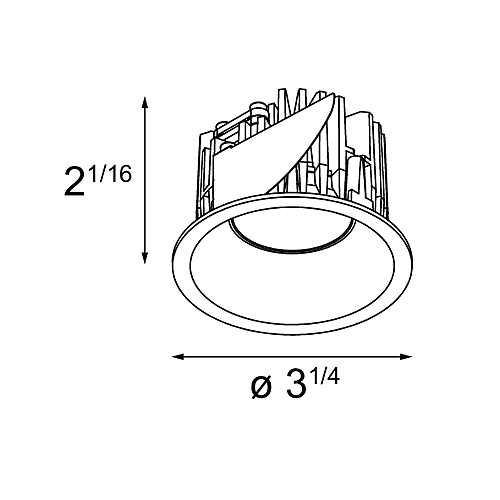

LINED_US_1244XXXX_REC_SMART LOTIS_LED 900lm_V0.pdf
Cut-Out Size (in)
Ø 3
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
Driver Current (mA)
350 500 700
Luminous flux per lamp (lm)
522 702 794
LED Connected Load (W)
5 7.2 10.6
Min. LED Fwd Voltage (Vf)
13.2 13.7 14.2
Max. LED Fwd Voltage (Vf)
15 15.4 16
Efficacy (lm/W)
104 98 75
Glare Rating (UGR)
21 23 23
LED Type
LED COB
Number of Light Sources
1
CCT
3500K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
productCIEFluxCode
89, 100, 100, 100, 77
Location Rating
Wet Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (lb)
0.6
Net Weight (lb)
0.54
Cut-Out Size (in)
Ø 3
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
LED Type
LED COB
Number of Light Sources
1
CCT
3500K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
productCIEFluxCode
89, 100, 100, 100, 77
Location Rating
Wet Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (lb)
0.6
Net Weight (lb)
0.54
Driver Current (mA)
350 500 700
Luminous flux per lamp (lm)
522 702 794
LED Connected Load (W)
5 7.2 10.6
Min. LED Fwd Voltage (Vf)
13.2 13.7 14.2
Max. LED Fwd Voltage (Vf)
15 15.4 16
Efficacy (lm/W)
104 98 75
Glare Rating (UGR)
21 23 23
Modular logo Go to top Installation Accessories 1. Decorative Accessories 2.

1. Installation Accessories

Recessed Ring

Recessed Ring

US_12500230
Recessed Ring Ø3.2

2. Decorative Accessories

Smart Mask 3.2 1x

Smart Mask 3.2 1x

US_12500009
Smart mask 3.2 1x white struc
US_12500014
Smart Mask 3.2 1x Bronze Brushed
US_12500015
Smart Mask 3.2 1x Champagne Brushed
US_12500016
Smart Mask 3.2 1x Silver Bronze Brushed
US_12500032
Smart mask 3.2 1x black struc
US_12500043
Smart Mask 3.2 1x Black Brushed
US_12500046
Smart mask 3.2 1x gold
Smart Mask 3.2 2x

Smart Mask 3.2 2x

US_12500109
Smart mask 3.2 2x white struc
US_12500114
Smart Mask 3.2 2x Bronze Brushed
US_12500115
Smart Mask 3.2 2x Champagne Brushed
US_12500116
Smart Mask 3.2 2x Silver Bronze Brushed
US_12500132
Smart mask 3.2 2x black struc
US_12500143
Smart Mask 3.2 2x Black Brushed
US_12500146
Smart mask 3.2 2x gold

Downloads

Download all ;
General
  • Data sheets
  • Installation instructions
  • Line drawings
    • ELABEL_BridgeluxV8G8_4000K.pdf
    • ELABEL_BridgeluxV8G8_3000K.pdf
    • ELABEL_BridgeluxV8G8_2700K.pdf
    • ELABEL_Bridgelux_V8GEN8_3500K.pdf
Photometrics
    • TM30_1014994_V8-G8 927.jpg
    • TM30_1014995_V8-G8 930.JPG
    • TM30_1014997_V8-G8 940.JPG
    • TM30_1014996_V8-G8 935.JPG
    • CRI_1014994_V8-G8 927.JPG
    • CRI_1014997_V8-G8 940.JPG
    • CRI_1014996_V8-G8 935.JPG
    • CRI_1014995_V8-G8 930.JPG
  • LDT files
  • IES files
  • Polar files
2D – 3D files
    • 3DS_124410XX_SMART-82-LOTIS_LED-900LM_01.3ds
    • 3DS_124420XX_SMART-82-LOTIS_LED-900LM_01.3ds
    • FBX_124410XX_SMART-82-LOTIS_LED-900LM_01.fbx
    • FBX_124420XX_SMART-82-LOTIS_LED-900LM_01.fbx
    • OBJ_124410XX_SMART-82-LOTIS_LED-900LM_01.obj
    • OBJ_124420XX_SMART-82-LOTIS_LED-900LM_01.obj
    • SKP_124410XX_SMART-82-LOTIS_LED-900LM_01.skp
    • SKP_124420XX_SMART-82-LOTIS_LED-900LM_01.skp
    • CAD2D_REC_US_SMART-LOTIS_01.dwg
    • CAD3D_124410XX_SMART-82-LOTIS_LED-900LM_V0.dwg
