Qbini Qbini General4x

Article numberUS_11480446
Ordering codeFFD_QBINI-GE-4X-30-DP-DE-GOMT
FFD_ LED 3000K Damp Location DE Gold Matt
500mA 24Vf 12W 1134lm 95lm/W CRI90
Qbini General 4x
IES file download
Request a quote
Specifications Compatible with Downloads

Specifications

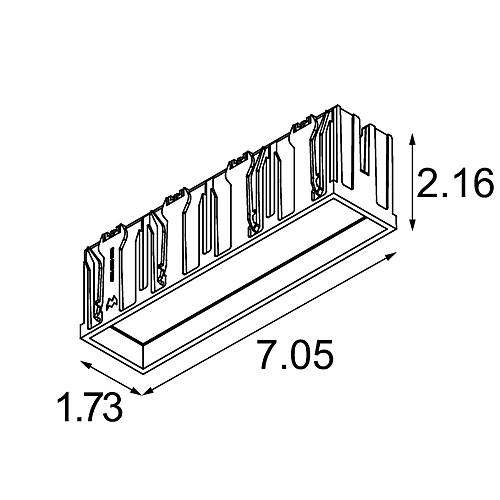

LINED_US_114803XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
815 1134
LED Connected Load (W)
8.4 12
Min. LED Fwd Voltage (Vf)
23.8 23.8
Max. LED Fwd Voltage (Vf)
24.4 24.4
Efficacy (lm/W)
97 95
Glare Rating (UGR)
33 34
LED Type
LED PCB
Number of Light Sources
4
CCT
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross weight (g)
647
Gross Weight (lb)
1.426
Net Weight (g)
565
Net Weight (lb)
1.246
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
LED Type
LED PCB
Number of Light Sources
4
CCT
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross weight (g)
647
Gross Weight (lb)
1.426
Net Weight (g)
565
Net Weight (lb)
1.246
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
815 1134
LED Connected Load (W)
8.4 12
Min. LED Fwd Voltage (Vf)
23.8 23.8
Max. LED Fwd Voltage (Vf)
24.4 24.4
Efficacy (lm/W)
97 95
Glare Rating (UGR)
33 34

Downloads

Download all ;
General
  • Installation instructions
  • Line drawings
    • ELABEL_QbiniGeneral4x_3000K.pdf
    • ELABEL_QbiniGeneral4x_2700K.pdf

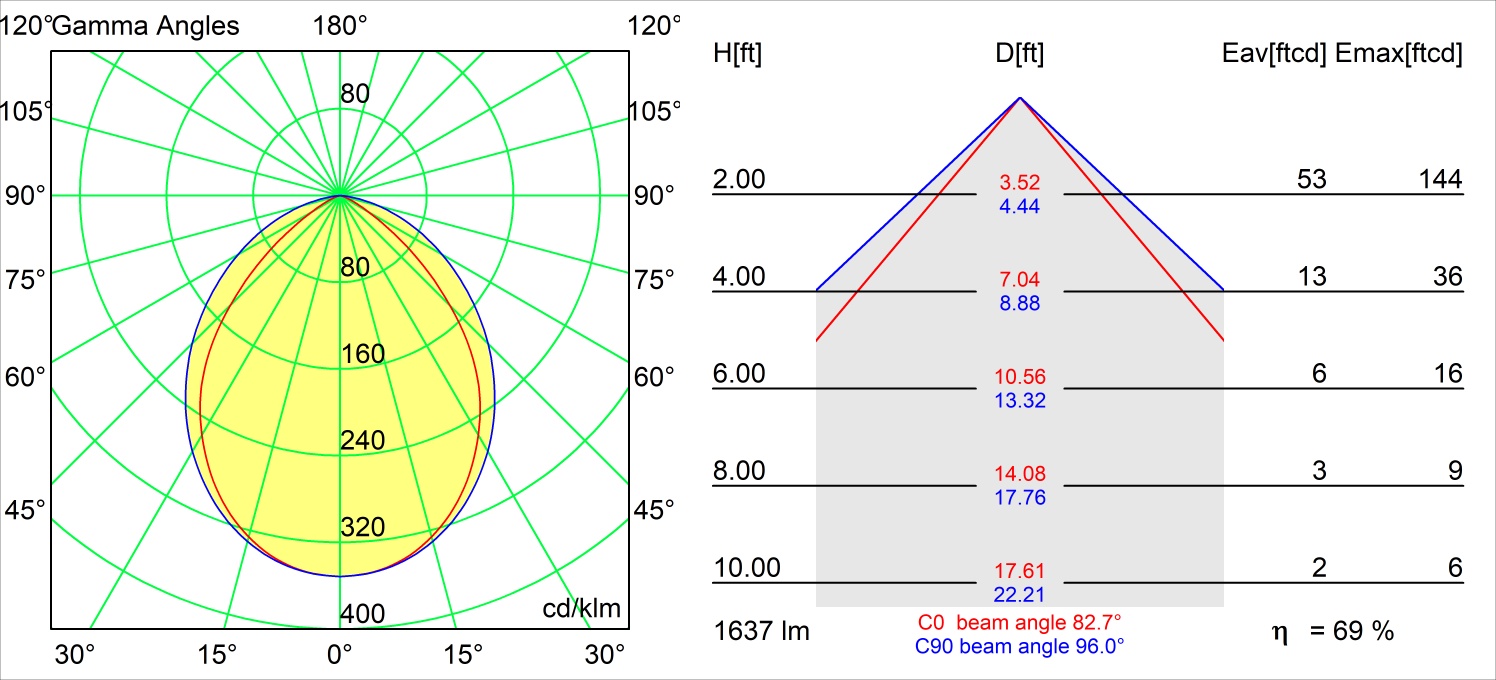

Photometrics
    • TM30_1013270_TCI-128441_927.jpg
    • TM30_1013271_TCI-128441_930.jpg
    • CRI_1013270_TCI-128441_927.jpg
    • CRI_1013271_TCI-128441_930.jpg
  • LDT files
  • IES files
  • Polar files
2D – 3D files
  • 3DS files
  • FBX files
  • SKP files
    • CAD3D_114803XX_REC_QBINI-GENERAL-4XLED_01.dwg
    • CAD2D_REC_US_QBINI_V0.zip

Compatible with

Show
Show

Qbini Frame NIC remodel

Qbini Frame Recessed

Qbini Frame Recessed Trimless

Qbini Frame Trimless NIC remodel
