Minude Minude Semi-RecessedAdjustable 1.8 1x

Article numberUS_11461009
Ordering codeFFD_MINUD-SR-A-1.8-1X-27M-DP-DE-WHS BB
FFD_ LED 2700K Medium Damp Location DE White Structure BB
500mA 16.9Vf 8.5W 598lm 70lm/W CRI90
Minude Semi-Recessed Adjustable 1.8 1x
Spec sheet Technical support
Request a quote
Specifications Installation Accessories Compatible with Downloads

Specifications
LINED_US_114610XX_US_114611XX_US_114612XX_03.pdf
Cut-Out Size (in)
Ø 1 9/16
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
444 598
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
78 70
Glare Rating (UGR)
12 13
LED Type
LED COB
Number of Light Sources
1
CCT
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
30
productCIEFluxCode
98, 100, 100, 100, 62
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 0°/+90°
Gross Weight (lb)
0.91
Net Weight (lb)
0.819
Cut-Out Size (in)
Ø 1 9/16
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
LED Type
LED COB
Number of Light Sources
1
CCT
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
30
productCIEFluxCode
98, 100, 100, 100, 62
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 0°/+90°
Gross Weight (lb)
0.91
Net Weight (lb)
0.819
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
444 598
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
78 70
Glare Rating (UGR)
12 13

1. Installation Accessories

Downloads

Download all ;
General
  • Data sheets
  • Installation instructions

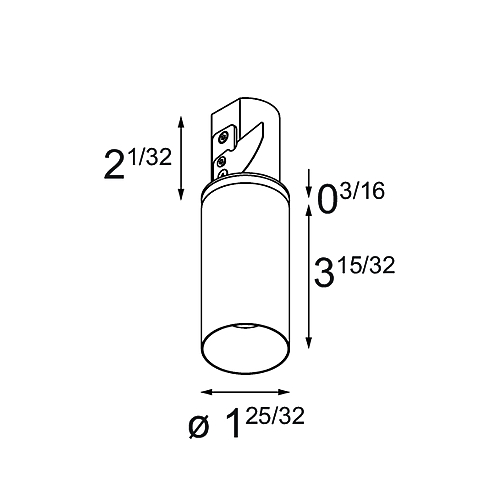

  • Line drawings
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf

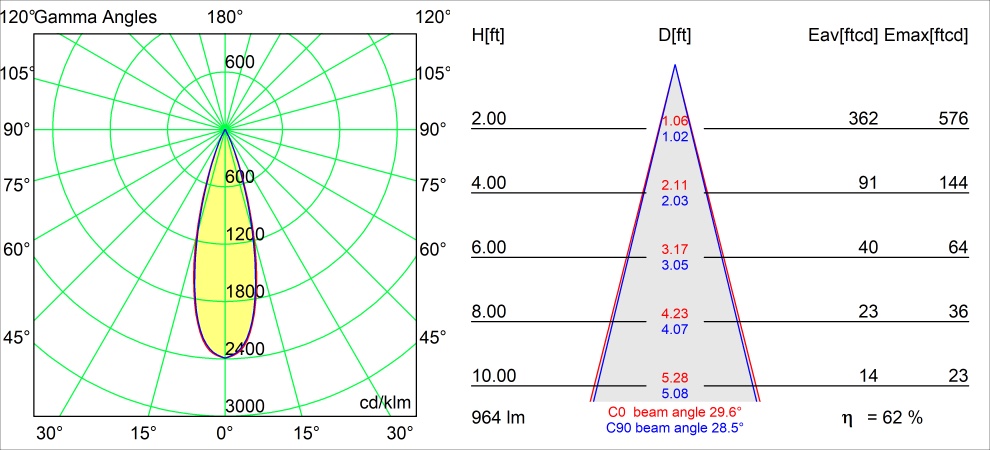

Photometrics
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
2D – 3D files
  • 3DS files
  • FBX files
  • OBJ files
  • SKP files
    • CAD2D_SURF_MINUDE_03.dwg
    • CAD3D_US_114610XX_REC_MINUDE-45-SEMI-RECESSED-1XLED_01.dwg
