Medard Medard Track 48VAdjustable 1.7 1x

Article numberUS_13430032
Ordering codeMEDAR-T48-A-1.7-1X-27M-DY-0101-BLS
LED 2700K Medium Dry Location 0-10V Dim to 1% Black Structure
10.5W 657lm 62lm/W CRI90
Medard Track 48V Adjustable 1.7 1x
Spec sheet IES file download
Request a quote
Specifications Compatible with Downloads

Specifications
LINED_US_134300XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
Luminous flux per lamp (lm)
657
Luminaire Power (W)
10.5
Efficacy (lm/W)
62
Glare Rating (UGR)
11
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
LED Type
LED COB
Number of Light Sources
1
CCT
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Dimming Protocol
0-10v/1%
Location Rating
Dry Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 360°
Gross Weight (lb)
0.8
Net Weight (lb)
0.72
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
LED Type
LED COB
Number of Light Sources
1
CCT
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Dimming Protocol
0-10v/1%
Location Rating
Dry Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 360°
Gross Weight (lb)
0.8
Net Weight (lb)
0.72
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
Luminous flux per lamp (lm)
657
Luminaire Power (W)
10.5
Efficacy (lm/W)
62
Glare Rating (UGR)
11

Downloads

Download all ;
General
  • Data sheets
  • Installation instructions

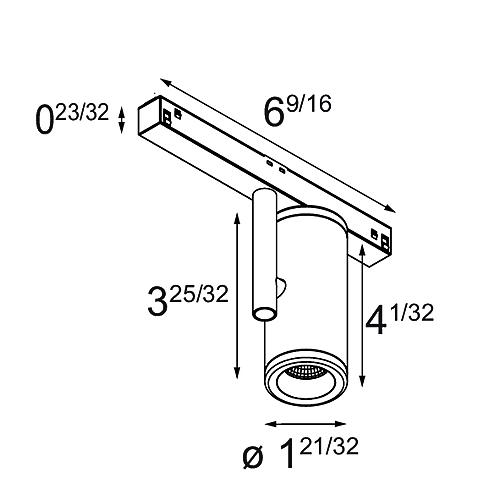

  • Line drawings
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf

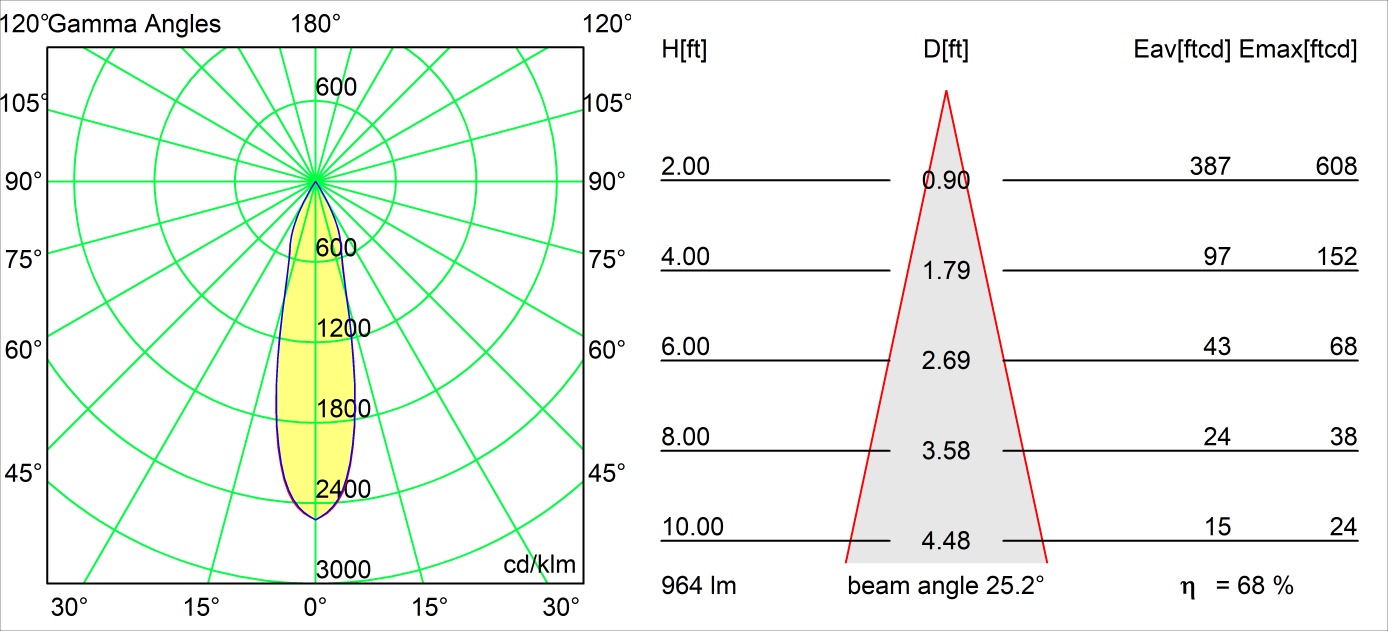

Photometrics
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
  • LDT files
  • IES files
  • Polar files
2D – 3D files
    • CAD2D_SURF_US_PISTA-MEDARD_02.dwg
    • CAD3D_134300XX_SURF_MEDARD-42-TRACK_V0.dwg

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended
