Hollow Hollow Recessed TrimlessAdjustable 4.5 1x

Article numberUS_12170209
Ordering codeHOLLO-R-TL-A-4.5-1X-35M-DP-DE-WHS-WHS
LED 3500K Medium Damp Location DE White Structure - White Structure
500mA 16.9Vf 8.5W 503lm 59lm/W CRI90
Hollow Recessed Trimless Adjustable 4.5 1x
Spec sheet IES file download
Request a quote
Specifications Installation Accessories Compatible with Downloads

Specifications

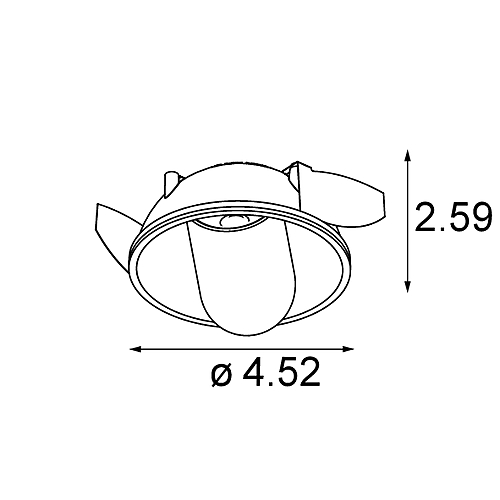

LINED_US_121700XX_US_121701XX_01.pdf
Cut-Out Size (in)
Ø 5 3/4 (recessed ring)
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
374 503
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
66 59
Glare Rating (UGR)
14 15
LED Type
LED COB
Number of Light Sources
1
CCT
3500K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 90°
Gross weight (g)
405
Gross Weight (lb)
0.893
Net Weight (g)
305
Net Weight (lb)
0.672
Cut-Out Size (in)
Ø 5 3/4 (recessed ring)
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
LED Type
LED COB
Number of Light Sources
1
CCT
3500K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
H 360° v 90°
Gross weight (g)
405
Gross Weight (lb)
0.893
Net Weight (g)
305
Net Weight (lb)
0.672
Driver Current (mA)
350 500
Luminous flux per lamp (lm)
374 503
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
66 59
Glare Rating (UGR)
14 15

1. Installation Accessories

Required
Required
Recessed Ring

Recessed Ring

US_14204030

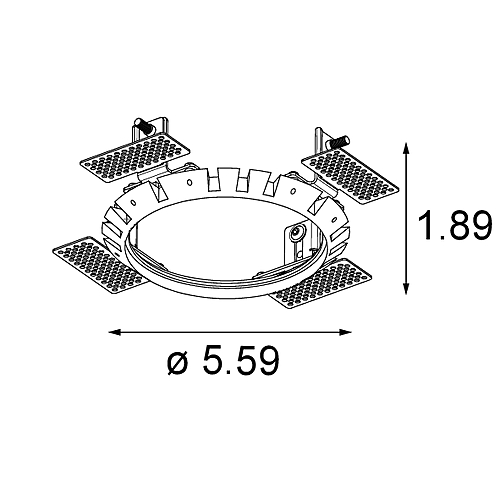

Recessed Ring Trimless Ø5.7

Downloads

Download all ;
General
  • Data sheets
  • Installation instructions
    • LINED_US_121700XX_US_121701XX_01.pdf
    • LINED_US_121700XX_US_121701XX_01.pdf
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf

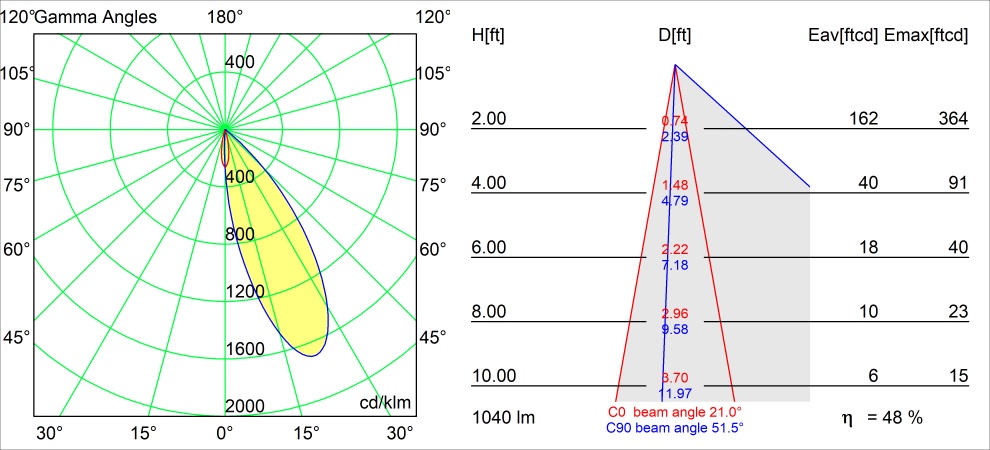

Photometrics
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
  • LDT files
  • IES files
  • Polar files
2D – 3D files
    • CAD2D_REC_HOLLOW_01.dwg
    • CAD3D_121700XX_REC_HOLLOW-115-TRIMLESS_01.dwg
