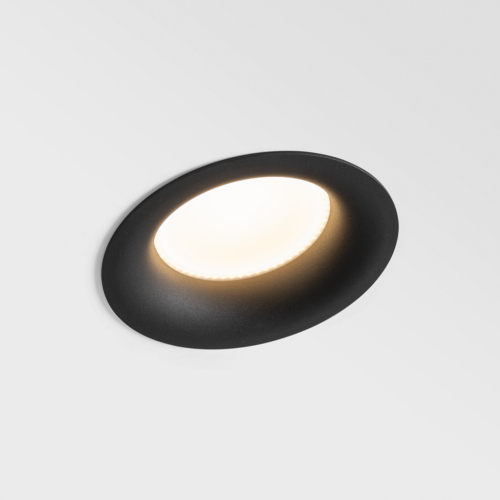

Smart Cake Recessed 160 1x IP55 Diffuse LED 4000K Wide Flood DE Black Structure

13005232

IP55 Diffuse LED 4000K Wide Flood DE Black Structure

1200mA 34.8Vf 41.8W 2890lm 68lm/W CRI90

Specifications

Cut-Out Size (mm): ø146
Mounting Depth (mm): 250
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 55

Drive Current (mA)

500

700

1050

1200

1400

Luminous flux per lamp (lm)

1316

1792

2573

2890

3327

LED Connected Load (W)

16.3

23.3

36.1

41.8

49.5

Min. LED Fwd Voltage (Vf)

30.5

31.1

32.1

32.5

Max. LED Fwd Voltage (Vf)

35.2

35.9

37.5

38.1

Efficacy (lm/W)

Glare Rating (UGR)

3500K on request

LED Type: LED COB
Light Sources: 1
Colour Temperature: 4000K
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours

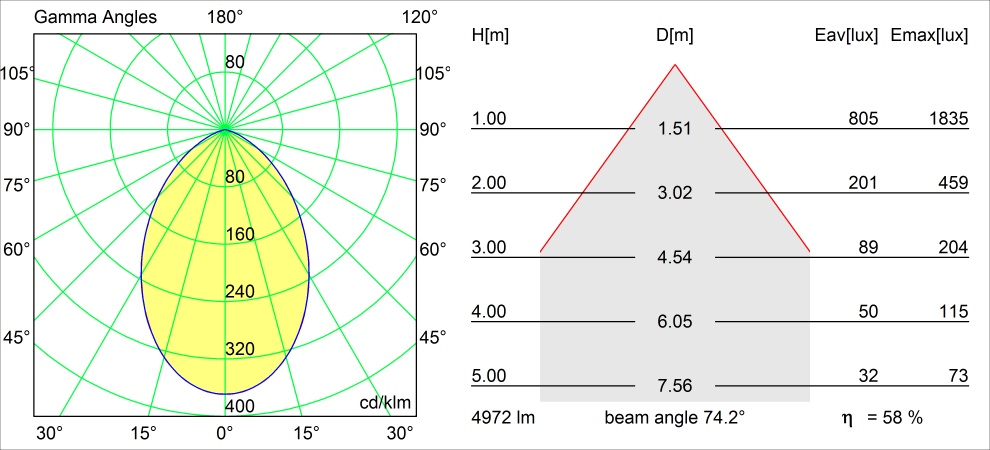

Measured Beam Angle (°): 74.2

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: Not applicable
Gross Weight (g): 984
Net Weight (g): 849

Cut-Out Size (mm): ø146
Mounting Depth (mm): 250
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 55

LED Type: LED COB
Light Sources: 1
Colour Temperature: 4000K
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 74.2

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: Not applicable
Gross Weight (g): 984
Net Weight (g): 849

3500K on request

Drive Current (mA)

500

700

1050

1200

1400

Luminous flux per lamp (lm)

1316

1792

2573

2890

3327

LED Connected Load (W)

16.3

23.3

36.1

41.8

49.5

Min. LED Fwd Voltage (Vf)

30.5

31.1

32.1

32.5

Max. LED Fwd Voltage (Vf)

35.2

35.9

37.5

38.1

Efficacy (lm/W)

Glare Rating (UGR)

1. Drivers

1200mA

Article no.	Driver	Fitting the cut-out hole	Min products	Max products	Dimension
12404030	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 1050-2100mA 45-55W		1	1	129 x 76 x 30

2. Decorative Accessories

Smart Mask 160 1x

13040009

Mask Smart 160 1x White Structure

13040032

Mask Smart 160 1x Black Structure

3. Smart Lighting Accessories

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

4. Back-Up Units

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE
