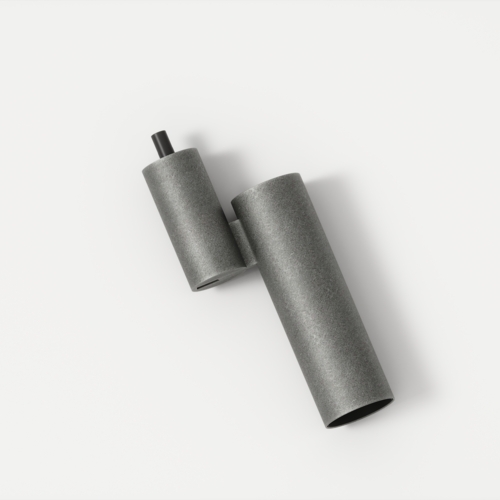

Passage Jack Adjustable 40 1x LED 1800-3000K WD Flood DE Aluminium Tumbled

13970877

LED 1800-3000K WD Flood DE Aluminium Tumbled

250mA 33Vf 8.3W 732lm 88lm/W CRI95

Matrix

Specifications

Drive Current (mA)

250

Luminous flux per lamp (lm)

732

LED Connected Load (W)

8.3

Min. LED Fwd Voltage (Vf)

29.5

Max. LED Fwd Voltage (Vf)

35.8

Efficacy (lm/W)

Glare Rating (UGR)

3500K and 4000K on request

Colour Temperature: 1800-3000K (Warm Dim)
Light Source Type: LED
Adjustability: H 360° v 0°/+90°
Lamp Included: Yes
Light Sources: 1

Input Voltage: Constant current driver required
Gross Weight (g): 440
Distance to Lighted Object (m): 0,1
Electrical Class: III
IP Rating: 20

Lifetime: L90B10 @50,000 Hours
Glow Wire Rating: 960°C
CIE Flux Code: 99, 100, 100, 100, 86
Gross Weight (g): 440
Net Weight (g): 293

Colour Temperature: 1800-3000K (Warm Dim)
Light Source Type: LED
Adjustability: H 360° v 0°/+90°
Lamp Included: Yes
Light Sources: 1

Input Voltage: Constant current driver required
Gross Weight (g): 440
Distance to Lighted Object (m): 0,1
Electrical Class: III
IP Rating: 20

Lifetime: L90B10 @50,000 Hours
Glow Wire Rating: 960°C
CIE Flux Code: 99, 100, 100, 100, 86
Gross Weight (g): 440
Net Weight (g): 293

3500K and 4000K on request

Drive Current (mA)

250

Luminous flux per lamp (lm)

732

LED Connected Load (W)

8.3

Min. LED Fwd Voltage (Vf)

29.5

Max. LED Fwd Voltage (Vf)

35.8

Efficacy (lm/W)

Glare Rating (UGR)

Downloads

Download all

General

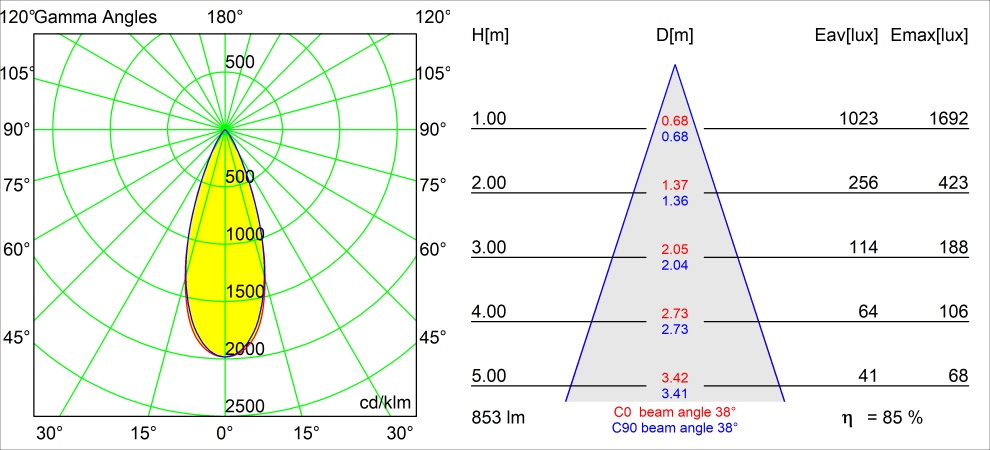

Photometrics

2D – 3D files

Declarations

0. Drivers

250mA

Article no.	Driver	Min products	Max products	Dimension
11631230	LED Driver Constant Current Deep Dim DALI 250mA 20W	1	1	160 x 41.5 x 30.5
11631330	LED Driver Constant Current Deep Dim 0-10V/1-10V 250mA 20W	1	1	160 x 41.5 x 30.5
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	1	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	1	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	1	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	3	124 x 79 x 22
12409630	LED Driver Constant Current Trailing Edge 250mA 12W	1	1	111 x 52 x 22
13551930	LED Driver Constant Current Trailing Edge 200-350mA 4-14W	1	1	128.8 x 32 x 25.7
13552130	LED Driver Constant Current DALI 250mA 13W	1	1	128.8 x 32 x 25.7

Accessories

Required

LED Driver Constant Current

12400330

LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W

12403430

LED Driver Constant Current Non-Dim 350-1050mA 25-50W

12404030

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 1050-2100mA 45-55W

12404230

LED Driver Constant Current Trailing Edge 350mA 18W

12404330

LED Driver Constant Current Trailing Edge 500mA 20W

12404830

LED Driver Constant Current Trailing Edge 350mA 5-10W

12404930

LED Driver Constant Current Trailing Edge 500mA 5-10W

12405630

LED Driver Constant Current DALI 300-1050mA 16-36W

12406530

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD

12406630

LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD

12406730

LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W

12406830

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W

12407130

LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W

12407230

LED Driver Constant Current Trailing Edge 250mA 3-7W

12407630

LED Driver Constant Current DALI 250-700mA 10-20W

12407730

LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W

12407830

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W

12407930

LED Driver Constant Current DALI 250-700mA 10-20W WD

12408030

LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD

12408130

LED Driver Constant Current DALI 250-700mA 15-32W WD

12408330

LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD

12408530

LED Driver Constant Current Trailing Edge 700mA 20W

12409630

LED Driver Constant Current Trailing Edge 250mA 12W

13550030

LED Driver Constant Current Non-Dim 500mA 12W

13550130

LED Driver Constant Current Non-Dim 350mA 15W

13551930

LED Driver Constant Current Trailing Edge 200-350mA 4-14W

13552030

LED Driver Constant Current Trailing Edge 350-700mA 4-14W

13552130

LED Driver Constant Current DALI 250mA 13W

13552230

LED Driver Constant Current DALI 350mA 13W

13552330

LED Driver Constant Current DALI 500mA 13W

13552930

LED Driver Constant Current DALI 700mA 13W

13553030

LED Driver Constant Current Non-Dim 450-600mA 25W

Required

LED Driver Constant Current Casambi

13470030

LED Driver Constant Current Casambi 300-1050mA 16-38W

13470130

LED Driver Constant Current Casambi 350-1050mA 25-60W

Required

LED Driver Constant Current Deep Dim

11630030

LED Driver Constant Current Deep Dim DALI 350mA 20W

11630130

LED Driver Constant Current Deep Dim DALI 500mA 20W

11630230

LED Driver Constant Current Deep Dim DALI 700mA 20W

11630330

LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W

11630430

LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W

11630530

LED Driver Constant Current Deep Dim 0-10V/1-10V 700mA 20W

11630630

LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD

11630730

LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output

11630830

LED Driver Constant Current Deep Dim DALI 700mA 50W 2 LED Output WD

11630930

LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD

11631030

LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD

11631130

LED Driver Constant Current Deep Dim 0-10V/1-10V 700mA 50W 2 LED Output WD

11631230

LED Driver Constant Current Deep Dim DALI 250mA 20W

11631330

LED Driver Constant Current Deep Dim 0-10V/1-10V 250mA 20W

11631430

LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W

12409130

LED Driver Constant Current Deep Dim 0-10V/1-10V 350-700mA 12W

13551630

LED Driver Constant Current Deep Dim DALI 350-700mA 12W

Required

LED Driver Constant Current Zigbee

13630100

LED Driver Constant Current Zigbee 350-1050mA 25-60W

Required

LED Driver For Jack

93009500

LED Driver Constant Current Non-Dim/Trailing Edge 350mA 10W For Jack

93009501

LED Driver Constant Current Non-Dim/Trailing Edge 500mA 10W For Jack

96009500

LED Driver Constant Current 1-10V/Push-Dim 350mA 18W For Jack

96009501

LED Driver Constant Current 1-10V/Push-Dim 500mA 26W For Jack

98009500

LED Driver Constant Current DALI 350mA 18W For Jack

98009501

LED Driver Constant Current DALI 500mA 26W For Jack

Casambi Module

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Back-Up Unit Constant Current

12400310

Back-Up Unit Constant Current 3h DE

Required

Modupoint Round Panel Mount Recessed 17 1x

13242109

Modupoint Round Panel Mount Recessed 17 1x DE White Structure

13242132

Modupoint Round Panel Mount Recessed 17 1x DE Black Structure

Required

Modupoint Round Recessed Trimless 10 1x

13240400

Modupoint Round Recessed Trimless 10 1x DE
