Nyto Surface Adjustable 30 Round 1x LED 3000K Medium DE Black Structure - Black Structure

13990432

LED 3000K Medium DE Black Structure - Black Structure

350mA 17.1Vf 6W 500lm 83lm/W CRI90

Specifications

Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

Drive Current (mA)

350

Luminous flux per lamp (lm)

500

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

15.4

Max. LED Fwd Voltage (Vf)

18.8

Efficacy (lm/W)

Glare Rating (UGR)

LED Type: LED COB
Light Sources: 1
Colour Temperature: 3000K
Binning (SDCM): 2
Lifetime: L90B10 @50,000 Hours
Measured Beam Angle (°): 25

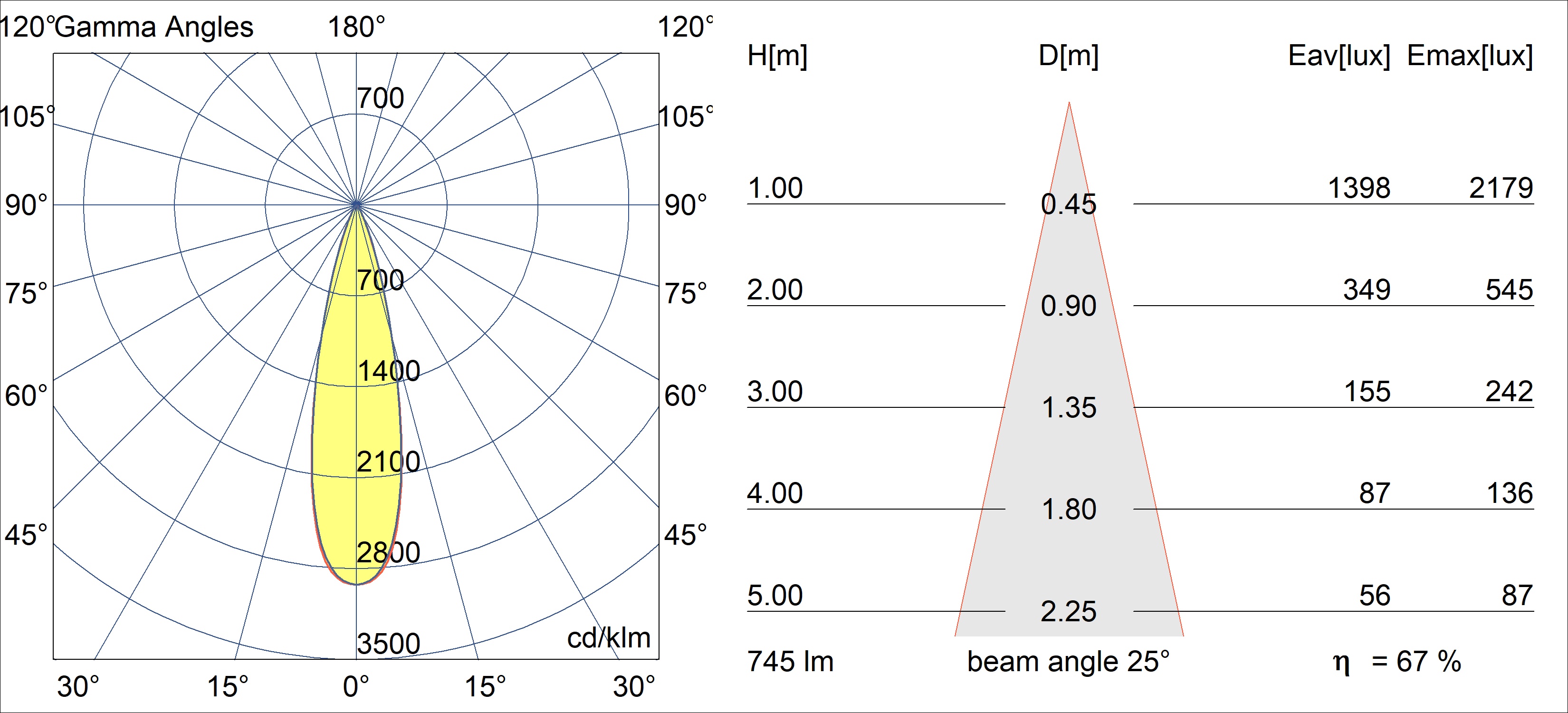

CIE Flux Code: 99, 100, 100, 100, 67
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 360° v 0°/+90°
Gross Weight (g): 201

Net Weight (g): 120

Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED COB
Light Sources: 1
Colour Temperature: 3000K
Binning (SDCM): 2
Lifetime: L90B10 @50,000 Hours
Measured Beam Angle (°): 25

CIE Flux Code: 99, 100, 100, 100, 67
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 360° v 0°/+90°
Gross Weight (g): 201

Net Weight (g): 120

Drive Current (mA)

350

Luminous flux per lamp (lm)

500

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

15.4

Max. LED Fwd Voltage (Vf)

18.8

Efficacy (lm/W)

Glare Rating (UGR)

1. Led Drivers

350mA

Article no.	Driver	Min products	Max products	Dimension
11630030	LED Driver Constant Current Deep Dim DALI 350mA 20W	1	2	160 x 41.5 x 30.5
11630330	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W	1	2	160 x 41.5 x 30.5
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	2	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	2	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	3	124 x 79 x 22
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	2	2	111 x 52 x 22
12404830	LED Driver Constant Current Trailing Edge 350mA 5-10W	1	1	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	3	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	3	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-700mA 10-20W	1	2	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	2	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	2	5	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	2	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	2	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	2	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	2	5	124 x 79 x 22
12409130	LED Driver Constant Current Deep Dim 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	2	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	3	124 x 79 x 22
13550130	LED Driver Constant Current Non-Dim 350mA 15W	1	2	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13551930	LED Driver Constant Current Trailing Edge 200-350mA 4-14W	2	2	128.8 x 32 x 25.7
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	1	1	128.8 x 32 x 25.7
13552230	LED Driver Constant Current DALI 350mA 13W	1	1	128.8 x 32 x 25.7
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	3	124 x 79 x 22

2. Smart Lighting Accessories

Casambi Module

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

3. Back-Up Units

Back-Up Unit Constant Current

12400310

Back-Up Unit Constant Current 3h DE

Downloads

Download all

General

Photometrics

2D – 3D files

Declarations
