13434009

LED 2700K Medium DE White Structure

500mA 16.9Vf 8.5W 657lm 77lm/W CRI90

Product compatibility matrix

Specifications

Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

Drive Current (mA)

350

500

700

Delivered Lumens (lm)

487

657

852

LED Connected Load (W)

5.7

8.5

12.4

Min. LED Fwd Voltage (Vf)

14.8

15.2

15.9

Max. LED Fwd Voltage (Vf)

18.6

19.5

Efficacy (lm/W)

Glare Rating (UGR)

3500K and 4000K on request

LED Type: LED COB
Light Sources: 1
Colour Temperature: 2700K
Binning (SDCM): 2
Lifetime: L80B10 @50,000 Hours

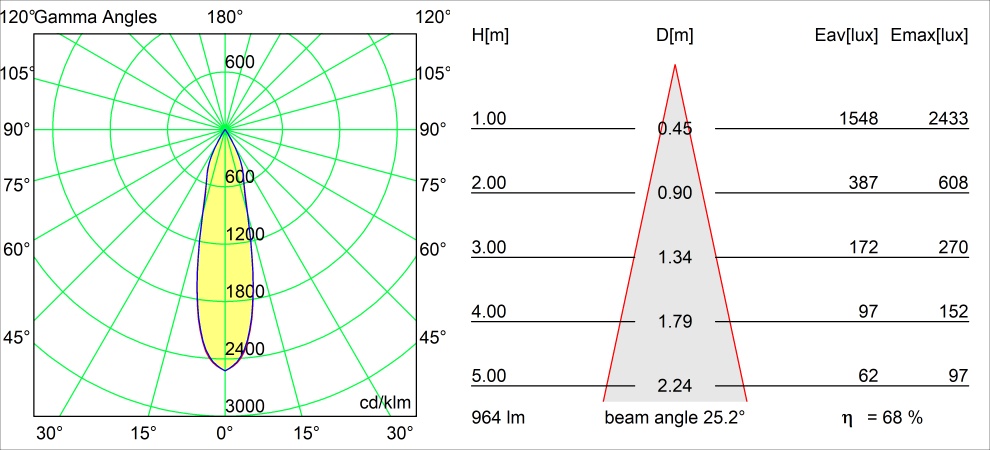

Measured Beam Angle (°): 25
CIE Flux Code: 100, 100, 100, 100, 68
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor

Adjustability: H 355° v 360°
Gross Weight (g): 190
Net Weight (g): 156

Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED COB
Light Sources: 1
Colour Temperature: 2700K
Binning (SDCM): 2
Lifetime: L80B10 @50,000 Hours
Measured Beam Angle (°): 25
CIE Flux Code: 100, 100, 100, 100, 68
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor

Adjustability: H 355° v 360°
Gross Weight (g): 190
Net Weight (g): 156

3500K and 4000K on request

Drive Current (mA)

350

500

700

Delivered Lumens (lm)

487

657

852

LED Connected Load (W)

5.7

8.5

12.4

Min. LED Fwd Voltage (Vf)

14.8

15.2

15.9

Max. LED Fwd Voltage (Vf)

18.6

19.5

Efficacy (lm/W)

Glare Rating (UGR)

1. Driver

500mA

Article no.	Driver	Min products	Max products	Dimension
11630130	LED Driver Constant Current Deep Dim DALI 500mA 20W	1	2	160 x 41.5 x 30.5
11630430	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W	1	2	160 x 41.5 x 30.5
11630730	LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output	1	4	152.5 x 76.2 x 30.1
11631030	LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD	1	4	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	1	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	2	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	3	124 x 79 x 22
12404330	LED Driver Constant Current Trailing Edge 500mA 20W	2	2	111 x 52 x 22
12404930	LED Driver Constant Current Trailing Edge 500mA 5-10W	1	1	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	3	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	3	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	3	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	2	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-700mA 10-20W	1	2	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	1	2	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	1	6	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	2	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	2	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	2	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	6	124 x 79 x 22
12409130	LED Driver Constant Current 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
12409430	LED Driver Constant Current DALI 500mA 10W	1	1	124 x 31 x 21
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	2	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	3	124 x 79 x 22
13550030	LED Driver Constant Current Non-Dim 500mA 12W	1	1	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13552030	LED Driver Constant Current Trailing Edge 350-700mA 4-14W	1	1	128.8 x 32 x 25.7
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	3	124 x 79 x 22

2. Installation Accessories

Modupoint Round Deep Recessed 90 1x

13240509

Modupoint Round Deep Recessed 90 1x DE White Structure

13240532

Modupoint Round Deep Recessed 90 1x DE Black Structure

Modupoint Round Deep Recessed 90 2x

13240709

Modupoint Round Deep Recessed 90 2x DE White Structure

13240732

Modupoint Round Deep Recessed 90 2x DE Black Structure

Modupoint Round Deep Recessed Trimless 82 1x

13240609

Modupoint Round Deep Recessed Trimless 82 1x DE White Structure

13240632

Modupoint Round Deep Recessed Trimless 82 1x DE Black Structure

Modupoint Round Deep Recessed Trimless 82 2x

13240809

Modupoint Round Deep Recessed Trimless 82 2x DE White Structure

13240832

Modupoint Round Deep Recessed Trimless 82 2x DE Black Structure

Modupoint Round Panel Mount Recessed 17 1x

13242109

Modupoint Round Panel Mount Recessed 17 1x DE White Structure

13242132

Modupoint Round Panel Mount Recessed 17 1x DE Black Structure

Modupoint Round Recessed 45 1x

13240309

Modupoint Round Recessed 45 1x DE White Structure

13240332

Modupoint Round Recessed 45 1x DE Black Structure

Modupoint Round Recessed Trimless 10 1x

13240400

Modupoint Round Recessed Trimless 10 1x DE

Modupoint Round Surface 200 3x

13492009

Modupoint Round Surface 200 3x Jack Trailing Edge DI 500mA White Structure

13492032

Modupoint Round Surface 200 3x Jack Trailing Edge DI 500mA Black Structure

13492109

Modupoint Round Surface 200 3x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure

13492132

Modupoint Round Surface 200 3x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure

13492209

Modupoint Round Surface 200 3x Jack 1-10V DI 500mA White Structure

13492232

Modupoint Round Surface 200 3x Jack 1-10V DI 500mA Black Structure

13492309

Modupoint Round Surface 200 3x Jack 1800-3000K WD 1-10V DI 350mA White Structure

13492332

Modupoint Round Surface 200 3x Jack 1800-3000K WD 1-10V DI 350mA Black Structure

13492409

Modupoint Round Surface 200 3x Jack DALI/Push-Dim DI 500mA White Structure

13492432

Modupoint Round Surface 200 3x Jack DALI/Push-Dim DI 500mA Black Structure

13492509

Modupoint Round Surface 200 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure

13492532

Modupoint Round Surface 200 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure

13495009

Modupoint Round Surface 200 3x Jack Casambi DI 500mA White Structure

13495032

Modupoint Round Surface 200 3x Jack Casambi DI 500mA Black Structure

13495109

Modupoint Round Surface 200 3x Jack 1800-3000K WD Casambi DI 350mA White Structure

13495132

Modupoint Round Surface 200 3x Jack 1800-3000K WD Casambi DI 350mA Black Structure

Modupoint Round Surface 45 1x

13242009

Modupoint Round Surface 45 1x DE White Structure

13242032

Modupoint Round Surface 45 1x DE Black Structure

13242041

Modupoint Round Surface 45 1x DE Champagne Brushed Anodised

13242080

Modupoint Round Surface 45 1x DE Black Chrome

13242081

Modupoint Round Surface 45 1x DE Black Brushed Anodised

13242082

Modupoint Round Surface 45 1x DE Bronze Brushed Anodised

13242084

Modupoint Round Surface 45 1x DE Silver Bronze Brushed Anodised

Modupoint Square Surface 320X58 2x

13490009

Modupoint Square Surface 320X58 2x Jack Trailing Edge DI 500mA White Structure

13490032

Modupoint Square Surface 320X58 2x Jack Trailing Edge DI 500mA Black Structure

13490109

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure

13490132

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure

13490209

Modupoint Square Surface 320X58 2x Jack 1-10V DI 500mA White Structure

13490232

Modupoint Square Surface 320X58 2x Jack 1-10V DI 500mA Black Structure

13490309

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD 1-10V DI 350mA White Structure

13490332

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD 1-10V DI 350mA Black Structure

13490409

Modupoint Square Surface 320X58 2x Jack DALI/Push-Dim DI 500mA White Structure

13490432

Modupoint Square Surface 320X58 2x Jack DALI/Push-Dim DI 500mA Black Structure

13490509

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure

13490532

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure

13493009

Modupoint Square Surface 320X58 2x Jack Casambi DI 500mA White Structure

13493032

Modupoint Square Surface 320X58 2x Jack Casambi DI 500mA Black Structure

13493109

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Casambi DI 350mA White Structure

13493132

Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Casambi DI 350mA Black Structure

Modupoint Square Surface 420X58 3x

13491009

Modupoint Square Surface 420X58 3x Jack Trailing Edge DI 500mA White Structure

13491032

Modupoint Square Surface 420X58 3x Jack Trailing Edge DI 500mA Black Structure

13491109

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure

13491132

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure

13491209

Modupoint Square Surface 420X58 3x Jack 1-10V DI 500mA White Structure

13491232

Modupoint Square Surface 420X58 3x Jack 1-10V DI 500mA Black Structure

13491309

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD 1-10V DI 350mA White Structure

13491332

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD 1-10V DI 350mA Black Structure

13491409

Modupoint Square Surface 420X58 3x Jack DALI/Push-Dim DI 500mA White Structure

13491432

Modupoint Square Surface 420X58 3x Jack DALI/Push-Dim DI 500mA Black Structure

13491509

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure

13491532

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure

13494009

Modupoint Square Surface 420X58 3x Jack Casambi DI 500mA White Structure

13494032

Modupoint Square Surface 420X58 3x Jack Casambi DI 500mA Black Structure

13494109

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Casambi DI 350mA White Structure

13494132

Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Casambi DI 350mA Black Structure

3. Decorative Accessories

Modupoint LED Stick

13240009

Stick Modupoint 100 White Structure

13240032

Stick Modupoint 100 Black Structure

13240109

Stick Modupoint 200 White Structure

13240132

Stick Modupoint 200 Black Structure

13240209

Stick Modupoint 300 White Structure

13240232

Stick Modupoint 300 Black Structure

Modupoint LED Stick Curved

13242209

Stick Modupoint Curved 90° White Structure

13242232

Stick Modupoint Curved 90° Black Structure

13242309

Stick Modupoint Curved 180° White Structure

13242332

Stick Modupoint Curved 180° Black Structure

4. Smart Lighting Accessories

Casambi Module

13470100

Dim Module Casambi 1-10V

13470101

Dim Module Casambi Trailing Edge

13470102

Dim Module Casambi DALI

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

12400210

Back-Up Unit Constant Current 1h DE

12400310

Back-Up Unit Constant Current 3h DE

Downloads

Download all

Compatible with

Show

Modupoint Round Deep Recessed Trimless

Modupoint Round Panel Mount Recessed

Modupoint Round Recessed Trimless

Like what you see and want more?

If you are an interior professional who is looking for lighting to complement their concept, get in touch to request a lighting design or a quote. Are you a consumer? Visit Where to buy to find one of our partners who can provide all the support you require locally.

Request a lighting design Request a quote

Where to buy

Looking for something?

Type a keyword in the search field and we’ll help you find it
