Kup Kup Recessed72 1x

14281684
IP55 LED 1800-3000K WD Flood DE Silver Bronze Brushed Anodised
250mA 33Vf 8.3W 652lm 79lm/W CRI95
Kup Recessed 72 1x
Data sheet Technical support
Request a quote
Specifications
1 Drivers 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Downloads

Specifications
LINED_142800XX_KUP_REC_72_IP55_LED_DE_01.pdf
Cut-Out Size (mm)
ø68
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
250
Luminous flux per lamp (lm)
652
LED Connected Load (W)
8.3
Min. LED Fwd Voltage (Vf)
29.5
Max. LED Fwd Voltage (Vf)
35.8
Efficacy (lm/W)
79
Glare Rating (UGR)
23
  • 2400K on request
  • CRI98 on request
LED Type
LED COB
Light Sources
1
Colour Temperature
1800-3000K (Warm Dim)
Binning (SDCM)
3
Lifetime
L90B10 @50,000 Hours

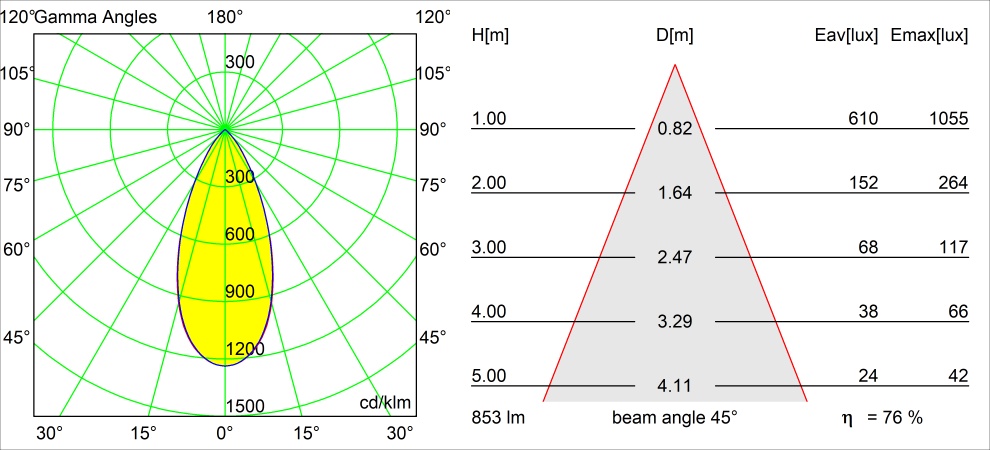

Measured Beam Angle (°)
45
CIE Flux Code
96, 100, 100, 100, 76
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
314
Net Weight (g)
219
Cut-Out Size (mm)
ø68
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
1800-3000K (Warm Dim)
Binning (SDCM)
3
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
45
CIE Flux Code
96, 100, 100, 100, 76
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
314
Net Weight (g)
219
  • 2400K on request
  • CRI98 on request
Drive Current (mA)
250
Luminous flux per lamp (lm)
652
LED Connected Load (W)
8.3
Min. LED Fwd Voltage (Vf)
29.5
Max. LED Fwd Voltage (Vf)
35.8
Efficacy (lm/W)
79
Glare Rating (UGR)
23
Modular logo Go to top Drivers 1. Installation Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Drivers

Required
Required
250mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11631230 LED Driver Constant Current Deep Dim DALI 250mA 20W 1 1 160 x 41.5 x 30.5
11631330 LED Driver Constant Current Deep Dim 0-10V/1-10V 250mA 20W 1 1 160 x 41.5 x 30.5
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 1 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 1 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 1 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 3 124 x 79 x 22
12409630 LED Driver Constant Current Trailing Edge 250mA 12W 1 1 111 x 52 x 22
13551930 LED Driver Constant Current Trailing Edge 200-350mA 4-14W 1 1 128.8 x 32 x 25.7
13552130 LED Driver Constant Current DALI 250mA 13W 1 1 128.8 x 32 x 25.7
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. In-situ concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Be aware! Not suitable for 'In-situ concrete'
Gypsum Fibreboard

Gypsum Fibreboard

12292630
Gypsum Fibreboard 150x150
Installation Housing

Installation Housing

11624030
Installation Housing 140x250x100x210
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
General
  • Datasheet
  • Installation instructions
  • Line drawings
  • Tender texts
  • Energy label
Photometrics
  • TM30 files
  • CRI Files
  • LDT files
  • IES files
  • Polar files
2D – 3D files
  • 3DS files
  • OBJ files
  • SKP files
  • CAD files
Declarations
  • UKCA declarations
  • Reach declarations
  • CE declarations
