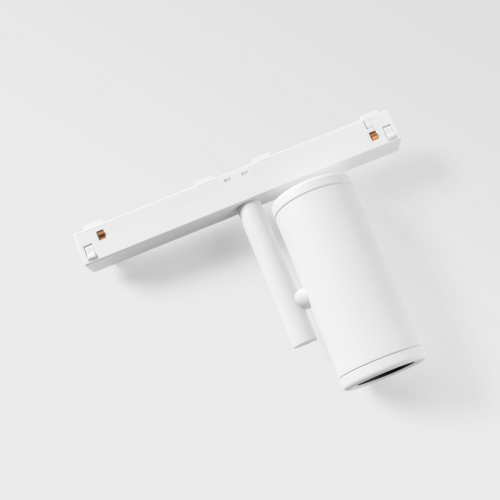

Medard Medard Track 48VAdjustable 42 1x

13430309
LED 2700K Flood DALI White Structure
10.5W 681lm 65lm/W CRI90
Medard Track 48V Adjustable 42 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_134300XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
Drive Current (mA)
500
Delivered Lumens (lm)
681
Luminaire Power (W)
10.5
Efficacy (lm/W)
65
Glare Rating (UGR)
15
  • 3500K and 4000K on request
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
37
CIE Flux Code
100, 100, 100, 100, 71
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 360°
Gross Weight (g)
320
Net Weight (g)
200
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
37
CIE Flux Code
100, 100, 100, 100, 71
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 360°
Gross Weight (g)
320
Net Weight (g)
200
  • 3500K and 4000K on request
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
Drive Current (mA)
500
Delivered Lumens (lm)
681
Luminaire Power (W)
10.5
Efficacy (lm/W)
65
Glare Rating (UGR)
15

1. Smart Lighting Accessories

Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_134300XX_SURF_MEDARD-42-TRACK_V0.dwg
    • SKP_134300XX_SURF_MEDARD-42-TRACK_01.skp
    • OBJ_134300XX_SURF_MEDARD-42-TRACK_01.obj
    • 3DS_134300XX_SURF_MEDARD-42-TRACK_01.3ds
    • FBX_134300XX_SURF_MEDARD-42-TRACK_01.fbx
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf
    • REACH_MEDARD_06.pdf
    • CE_13430309_04.pdf
    • UKCA_13430309_02.pdf

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended
