Smart Smart Lotis Asy Recessed48 1x

12892232
HO IP55 LED 4000K Medium DE Black Structure
500mA 8.8Vf 4.4W 271lm 67lm/W CRI90

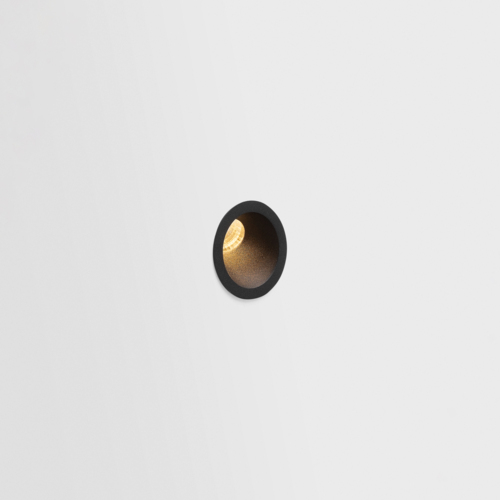

Smart Lotis Asy Recessed 48 1x
Data sheet Technical support
Request a quote
Specifications
1 Drivers 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Downloads

Specifications
LINED_128910XX_V0.pdf
Cut-Out Size (mm)
ø44
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
200 271
LED Connected Load (W)
3 4.4
Min. LED Fwd Voltage (Vf)
7.5 7.8
Max. LED Fwd Voltage (Vf)
9.5 9.8
Efficacy (lm/W)
67 67
Glare Rating (UGR)
4 4
LED Type
LED COB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
26.8
CIE Flux Code
92, 100, 100, 100, 59
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
114
Net Weight (g)
92
Cut-Out Size (mm)
ø44
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
26.8
CIE Flux Code
92, 100, 100, 100, 59
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
114
Net Weight (g)
92
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
200 271
LED Connected Load (W)
3 4.4
Min. LED Fwd Voltage (Vf)
7.5 7.8
Max. LED Fwd Voltage (Vf)
9.5 9.8
Efficacy (lm/W)
67 67
Glare Rating (UGR)
4 4
