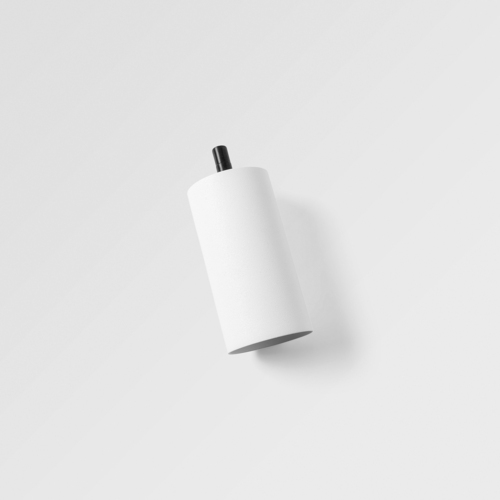

Minude Jack Adjustable 45 1x

11463109
LED 3000K Medium DE White Structure
500mA 16.9Vf 8.5W 610lm 72lm/W CRI90
3000K LED Medium (20-30°) Remote Driver Excluded
Minude Jack Adjustable 45 1x
Product compatibility matrix
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_114630XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
29.6
CIE Flux Code
98, 100, 100, 100, 62
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 0°/+90°
Gross Weight (g)
258
Net Weight (g)
198
Drive Current (mA)
350 500
Delivered Lumens (lm)
453 610
LED Connected Load (W)
5.7 8.5
Min. LED Fwd Voltage (Vf)
14.8 15.2
Max. LED Fwd Voltage (Vf)
18 18.6
Efficacy (lm/W)
79 72
Glare Rating (UGR)
12 13
  • 3500K and 4000K on request
Modular logo Go to top 1 Driver 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units

1. Driver

Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 2 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 2 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 4
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 1 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 2 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 3 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 2 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 3 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 3 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-900mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 6 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 2 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 6 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 2 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 3 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 3 124 x 79 x 22
Show more

2. Installation Accessories
Modupoint Round Deep Recessed 90 1x
Required

Modupoint Round Deep Recessed 90 1x

13240509
Modupoint Round Deep Recessed 90 1x DE White Structure
13240532
Modupoint Round Deep Recessed 90 1x DE Black Structure
Modupoint Round Deep Recessed 90 2x
Required

Modupoint Round Deep Recessed 90 2x

13240709
Modupoint Round Deep Recessed 90 2x DE White Structure
13240732
Modupoint Round Deep Recessed 90 2x DE Black Structure
Modupoint Round Deep Recessed Trimless 82 1x
Required

Modupoint Round Deep Recessed Trimless 82 1x

13240609
Modupoint Round Deep Recessed Trimless 82 1x DE White Structure
13240632
Modupoint Round Deep Recessed Trimless 82 1x DE Black Structure
Modupoint Round Deep Recessed Trimless 82 2x
Required

Modupoint Round Deep Recessed Trimless 82 2x

13240809
Modupoint Round Deep Recessed Trimless 82 2x DE White Structure
13240832
Modupoint Round Deep Recessed Trimless 82 2x DE Black Structure
Modupoint Round Panel Mount Recessed 17 1x
Required

Modupoint Round Panel Mount Recessed 17 1x

13242109
Modupoint Round Panel Mount Recessed 17 1x DE White Structure
13242132
Modupoint Round Panel Mount Recessed 17 1x DE Black Structure
Modupoint Round Recessed 45 1x
Required

Modupoint Round Recessed 45 1x

13240309
Modupoint Round Recessed 45 1x DE White Structure
13240332
Modupoint Round Recessed 45 1x DE Black Structure
Modupoint Round Recessed Trimless 10 1x
Required

Modupoint Round Recessed Trimless 10 1x

13240400
Modupoint Round Recessed Trimless 10 1x DE
Modupoint Round Surface 200 3x
Required

Modupoint Round Surface 200 3x

13492009
Modupoint Round Surface 200 3x Jack Trailing Edge DI 500mA White Structure
13492032
Modupoint Round Surface 200 3x Jack Trailing Edge DI 500mA Black Structure
13492109
Modupoint Round Surface 200 3x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure
13492132
Modupoint Round Surface 200 3x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure
13492209
Modupoint Round Surface 200 3x Jack 1-10V DI 500mA White Structure
13492232
Modupoint Round Surface 200 3x Jack 1-10V DI 500mA Black Structure
13492309
Modupoint Round Surface 200 3x Jack 1800-3000K WD 1-10V DI 350mA White Structure
13492332
Modupoint Round Surface 200 3x Jack 1800-3000K WD 1-10V DI 350mA Black Structure
13492409
Modupoint Round Surface 200 3x Jack DALI/Push-Dim DI 500mA White Structure
13492432
Modupoint Round Surface 200 3x Jack DALI/Push-Dim DI 500mA Black Structure
13492509
Modupoint Round Surface 200 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure
13492532
Modupoint Round Surface 200 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure
13495009
Modupoint Round Surface 200 3x Jack Casambi DI 500mA White Structure
13495032
Modupoint Round Surface 200 3x Jack Casambi DI 500mA Black Structure
13495109
Modupoint Round Surface 200 3x Jack 1800-3000K WD Casambi DI 350mA White Structure
13495132
Modupoint Round Surface 200 3x Jack 1800-3000K WD Casambi DI 350mA Black Structure
Modupoint Round Surface 45 1x
Required

Modupoint Round Surface 45 1x

13242009
Modupoint Round Surface 45 1x DE White Structure
13242032
Modupoint Round Surface 45 1x DE Black Structure
13242041
Modupoint Round Surface 45 1x DE Champagne Brushed Anodised
13242080
Modupoint Round Surface 45 1x DE Black Chrome
13242081
Modupoint Round Surface 45 1x DE Black Brushed Anodised
13242082
Modupoint Round Surface 45 1x DE Bronze Brushed Anodised
13242084
Modupoint Round Surface 45 1x DE Silver Bronze Brushed Anodised
Modupoint Square Surface 320X58 2x
Required

Modupoint Square Surface 320X58 2x

13490009
Modupoint Square Surface 320X58 2x Jack Trailing Edge DI 500mA White Structure
13490032
Modupoint Square Surface 320X58 2x Jack Trailing Edge DI 500mA Black Structure
13490109
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure
13490132
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure
13490209
Modupoint Square Surface 320X58 2x Jack 1-10V DI 500mA White Structure
13490232
Modupoint Square Surface 320X58 2x Jack 1-10V DI 500mA Black Structure
13490309
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD 1-10V DI 350mA White Structure
13490332
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD 1-10V DI 350mA Black Structure
13490409
Modupoint Square Surface 320X58 2x Jack DALI/Push-Dim DI 500mA White Structure
13490432
Modupoint Square Surface 320X58 2x Jack DALI/Push-Dim DI 500mA Black Structure
13490509
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure
13490532
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure
13493009
Modupoint Square Surface 320X58 2x Jack Casambi DI 500mA White Structure
13493032
Modupoint Square Surface 320X58 2x Jack Casambi DI 500mA Black Structure
13493109
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Casambi DI 350mA White Structure
13493132
Modupoint Square Surface 320X58 2x Jack 1800-3000K WD Casambi DI 350mA Black Structure
Modupoint Square Surface 420X58 3x
Required

Modupoint Square Surface 420X58 3x

13491009
Modupoint Square Surface 420X58 3x Jack Trailing Edge DI 500mA White Structure
13491032
Modupoint Square Surface 420X58 3x Jack Trailing Edge DI 500mA Black Structure
13491109
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Trailing Edge DI 350mA White Structure
13491132
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Trailing Edge DI 350mA Black Structure
13491209
Modupoint Square Surface 420X58 3x Jack 1-10V DI 500mA White Structure
13491232
Modupoint Square Surface 420X58 3x Jack 1-10V DI 500mA Black Structure
13491309
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD 1-10V DI 350mA White Structure
13491332
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD 1-10V DI 350mA Black Structure
13491409
Modupoint Square Surface 420X58 3x Jack DALI/Push-Dim DI 500mA White Structure
13491432
Modupoint Square Surface 420X58 3x Jack DALI/Push-Dim DI 500mA Black Structure
13491509
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA White Structure
13491532
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD DALI/Push-Dim DI 350mA Black Structure
13494009
Modupoint Square Surface 420X58 3x Jack Casambi DI 500mA White Structure
13494032
Modupoint Square Surface 420X58 3x Jack Casambi DI 500mA Black Structure
13494109
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Casambi DI 350mA White Structure
13494132
Modupoint Square Surface 420X58 3x Jack 1800-3000K WD Casambi DI 350mA Black Structure

3. Decorative Accessories
Modupoint LED Stick

Modupoint LED Stick

13240009
Stick Modupoint 100 White Structure
13240032
Stick Modupoint 100 Black Structure
13240109
Stick Modupoint 200 White Structure
13240132
Stick Modupoint 200 Black Structure
13240209
Stick Modupoint 300 White Structure
13240232
Stick Modupoint 300 Black Structure
Modupoint LED Stick Curved

Modupoint LED Stick Curved

13242209
Stick Modupoint Curved 90° White Structure
13242232
Stick Modupoint Curved 90° Black Structure
13242309
Stick Modupoint Curved 180° White Structure
13242332
Stick Modupoint Curved 180° Black Structure

4. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units
Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Compatible with

Show
Show

Modupoint Round Deep Recessed

Modupoint Round Deep Recessed Trimless

Modupoint Round Panel Mount Recessed

Modupoint Round Recessed

Modupoint Round Recessed Trimless

  • +2

Modupoint Round Surface

Modupoint Square Surface

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
    • CRI_1014209_V6HD_935.jpg
    • CRI_1014208_V6HD_930.jpg
    • CRI_1014207_V6HD_927.jpg
    • TM30_1014208_V6HD_930.jpg
    • TM30_1014207_V6HD_927.jpg
    • TM30_1014209_V6HD_935.jpg
  • Tender text
  • SKP file
    • OBJ_134230XX_MARBULITO-JACK_01.obj
    • OBJ_114630XX_MINUDE-45-ADJ-JACK_01.obj
    • FBX_114630XX_MINUDE-45-ADJ-JACK_01.fbx
    • FBX_114630XX_MINUDE-45-ADJ-JACK_01.fbx
  • CAD 3D files
    • LINED_114630XX_01.pdf
    • LINED_TST_01.pdf
    • CAD3D_114630XX_MINUDE-45-ADJ-JACK_01.dwg
    • CAD2D_MINUDE-JACK_01.dwg
    • 3DS_114630XX_MINUDE-45-ADJ-JACK_01.3ds
    • FBX_114630XX_MINUDE-45-ADJ-JACK_01.fbx
    • OBJ_134230XX_MARBULITO-JACK_01.obj
    • SKP_114630XX_MINUDE-45-ADJ-JACK_01.skp
    • 3DS_114630XX_MINUDE-45-ADJ-JACK_01.3ds
    • OBJ_114630XX_MINUDE-45-ADJ-JACK_01.obj
    • FBX_114630XX_MINUDE-45-ADJ-JACK_01.fbx
    • ELABEL_Bridgelux_V6HD_4000K.pdf
    • ELABEL_Bridgelux_V6HD_3500K.pdf
    • ELABEL_Bridgelux_V6HD_3000K.pdf
    • ELABEL_Bridgelux_V6HD_2700K.pdf
    • REACH_MINUDE_06.pdf
    • CE_11463109_04.pdf
    • UKCA_11463109_02.pdf
  • Product compatibility matrix
  • Technical document

Like what you see and want more?

If you are an interior professional who is looking for lighting to complement their concept, get in touch to request a lighting design or a quote. Are you a consumer? Visit Where to buy to find one of our partners who can provide all the support you require locally.

Request a lighting designRequest a quote

Where to buy

Looking for something?

Type a keyword in the search field and we’ll help you find it

Modular Lighting Instruments logo white

Products

  • Surface mounted lighting for ceiling
  • Recessed lighting for ceiling
  • Suspended lighting for ceiling
  • Profile systems for ceiling
  • Track systems
  • All ceiling lighting
  • Surface mounted lighting for wall
  • Recessed lighting for wall
  • All wall lighting

Projects

  • Residential
  • Office
  • Hospitality
  • Retail
  • Healthcare
  • All projects

Modular Lighting Instruments

  • Services
  • Technology
  • Where to buy
  • Personalised Project Consultation
  • Document library
  • Local offices
  • Showrooms
  • Sustainability
  • Jobs
  • Blog
  • Sitemap

Subscribe to our newsletter

Subscribe

Follow us on

  • Privacy notice
  • Cookie notice
  • Terms of use
  • About
Global | EN
