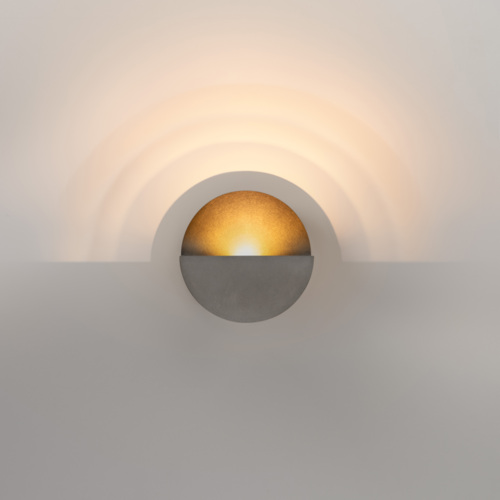

Impulse Round Wall 1x

13770204
LED 2700K DALI/Push-Dim DI Cast Grey Matt
7.7W 489lm 64lm/W CRI90
2700K LED Driver Included
Impulse Round Wall 1x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_137700XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
120
CIE Flux Code
0, 0, 11, 0, 77
Electrical Class
I
Dimming Protocol
Dali, Push-dim
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
1010
Net Weight (g)
755
Delivered Lumens (lm)
489
Luminaire Power (W)
7.7
Efficacy (lm/W)
64
Glare Rating (UGR)
1
  • Recommended installation height min. 185 cm

1. Smart Lighting Accessories
Casambi Module

Casambi Module

13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_3018934_PCB-IMPULSE-927_01.JPG
    • CRI_3018935_PCB-IMPULSE-930_01.JPG
    • CRI_3018936_PCB-IMPULSE-935_01.JPG
    • TM30_3018934_PCB-IMPULSE-927_01.JPG
    • TM30_3018935_PCB-IMPULSE-930_01.JPG
    • TM30_3018936_PCB-IMPULSE-935_01.JPG
  • Tender text
    • REACH_IMPULSE_06.pdf
    • EPD_MODULAR_IMPULSE_ROUND_WALL_1X_IP44_LED_DE_EU_01.pdf
    • EPD_MODULAR_IMPULSE_ROUND_WALL_1X_LED_DI_EU_01.pdf
    • UKCA_13770204_02.pdf
    • CE_13770204_04.pdf
  • Line drawings
  • SKP files
    • FBX_137700XX_IMPULSE_ROUND_01.3ds
    • OBJ_137700XX_IMPULSE_ROUND_01.obj
    • CAD3D_137700XX_IMPULSE_ROUND_01.dwg
    • SKP_137700XX_IMPULSE_ROUND_01.skp
    • 3DS_137700XX_IMPULSE_ROUND_01.3ds
    • CAD2D_SURF_IMPULSE_01.dwg
    • ELABEL_IMPULSE_2700K.pdf
    • ELABEL_IMPULSE_3000K.pdf
    • ELABEL_IMPULSE_3500K.pdf
