Duell Duell WallUp/Down 2x

Article numberUS_11074903
Ordering codeDUELL-W-UD-2X-27-DP-010P-DI-BLBA-BLMT
LED 2700K Damp Location 0-10V and phase (LE + TE) DI Black Brushed Anodised - Black Matt
11.7W 606lm 52lm/W CRI90
Duell Wall Up/Down 2x
Spec sheet IES file download
Request a quote
Specifications
1 Installation Accessories 2 Optical Accessories
Compatible with Downloads

Specifications
LINED_US_110706XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
120-277v universal
Delivered Lumens (lm)
606
Luminaire Power (W)
11.7
Efficacy (lm/W)
52
Glare Rating (UGR)
17
LED Type
LED COB
Number of Light Sources
2
CCT
2700K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
61
productCIEFluxCode
80, 99, 100, 50, 48
Dimming Protocol
0-10v and phase (le + te)
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (lb)
2.6
Net Weight (lb)
2.34
Light Source Type
LED
Lamp Included
Yes
Input Voltage
120-277v universal
LED Type
LED COB
Number of Light Sources
2
CCT
2700K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
61
productCIEFluxCode
80, 99, 100, 50, 48
Dimming Protocol
0-10v and phase (le + te)
Location Rating
Damp Location
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (lb)
2.6
Net Weight (lb)
2.34
Delivered Lumens (lm)
606
Luminaire Power (W)
11.7
Efficacy (lm/W)
52
Glare Rating (UGR)
17
Modular logo Go to top Installation Accessories 1. Optical Accessories 2.

1. Installation Accessories

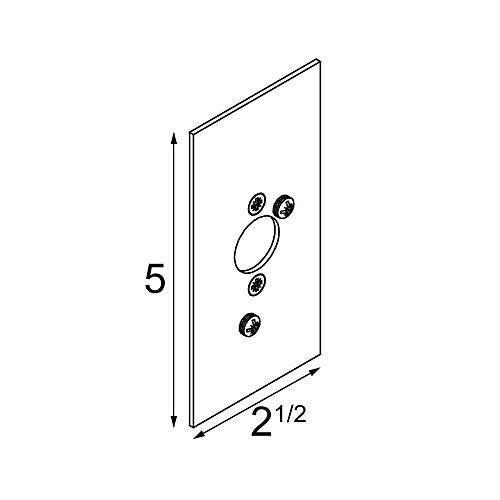

Backplate 3x2

Backplate 3x2

US_12050509
Backplate 3X2 DuellW-Trapz white struc
US_12050532
Backplate 3X2 DuellW-Trapz black struc

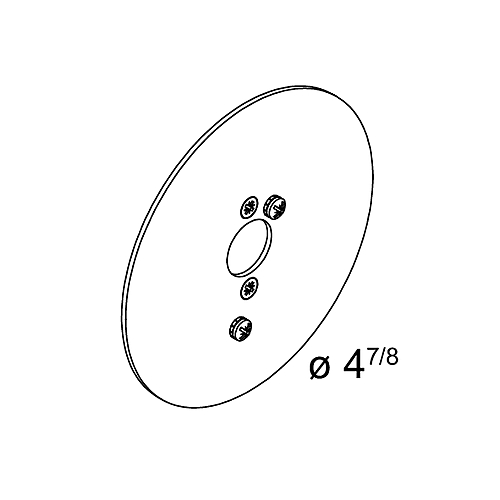

Backplate 4x4

Backplate 4x4

US_12050409
Backplate 4X4 DuellW-Trapz white struc
US_12050432
Backplate 4X4 DuellW-Trapz black struc

2. Optical Accessories

Frosted Lens Duell

Frosted Lens Duell

US_11070001
Duell frosted lens (2)

Downloads

Download all ;
  • Data sheets
  • Installation instructions
  • LDT files
  • IES files
    • .Jpg

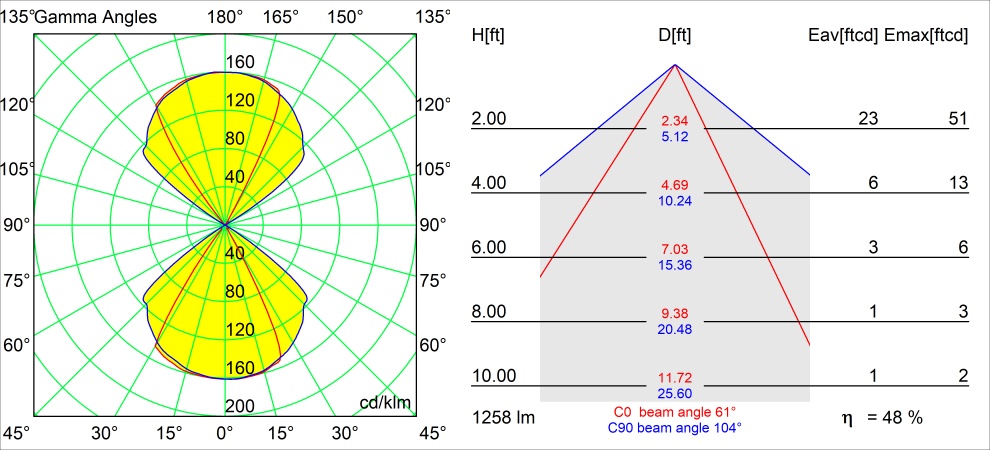

    • POLB_US_11074903_SURF_DUELL_LED-2700K_02.Jpg
    • CRI_1011276_V8 927.jpg
    • CRI_1011277_V8 930.jpg
    • CRI_1011321_BRIDGELUX_V8_935.jpg
    • CRI_1011322_V8 940.jpg
    • TM30_1011276_V8 927.jpg
    • TM30_1011277_V8 930.jpg
    • TM30_1011321_BRIDGELUX_V8_935.jpg
    • TM30_1011322_V8 940.jpg
  • Line drawings
    • CAD2D_SURF_US DUELL-WALL_V0.dwg
    • CAD3D_110745XX_SURF_DUELL_LED-2700K_V0.dwg
    • ELABEL_BridgeluxV8G6_2700K.pdf
    • ELABEL_BridgeluxV8G6_4000K.pdf
    • ELABEL_BridgeluxV8G6_3500K.pdf
    • ELABEL_BridgeluxV8G6_3000K.pdf
