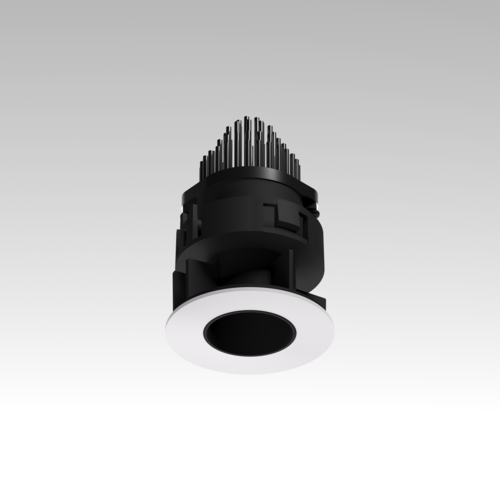

Tetrix Pinhole Tetrix Pinhole Recessed62 1x

13516238
IP55 LED 3000K Medium DE White Matt
500mA 14.4Vf 7.2W 497lm 69lm/W CRI90
Tetrix Pinhole Recessed 62 1x
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_135160XX_01.pdf
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
350 500
Delivered Lumens (lm)
367 497
LED Connected Load (W)
5 7.2
Min. LED Fwd Voltage (Vf)
13.2 13.7
Max. LED Fwd Voltage (Vf)
15 15.4
Efficacy (lm/W)
73 69
Glare Rating (UGR)
15 16
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
21.2
CIE Flux Code
99, 99, 100, 100, 70
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
151
Net Weight (g)
99
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
21.2
CIE Flux Code
99, 99, 100, 100, 70
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
151
Net Weight (g)
99
Drive Current (mA)
350 500
Delivered Lumens (lm)
367 497
LED Connected Load (W)
5 7.2
Min. LED Fwd Voltage (Vf)
13.2 13.7
Max. LED Fwd Voltage (Vf)
15 15.4
Efficacy (lm/W)
73 69
Glare Rating (UGR)
15 16
Modular logo Go to top Driver 1. Installation Accessories 2. Optical Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Driver

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 2 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 2 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 6
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 6
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 1 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 3 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 4 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 2 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 3 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 4 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 4 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 3 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 7 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 3 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 7 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 3 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 4 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 1 1 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 4 124 x 79 x 22
