  1. Go back

Tetrix Cone Tetrix Cone Recessed90 1x

13513338
IP55 LED 3000K Flood DE White Matt
500mA 14.4Vf 7.2W 746lm 103lm/W CRI90
Tetrix Cone Recessed 90 1x
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_135130XX_02.pdf
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
556 746
LED Connected Load (W)
5 7.2
Min. LED Fwd Voltage (Vf)
13.2 13.7
Max. LED Fwd Voltage (Vf)
15 15.4
Efficacy (lm/W)
111 103
Glare Rating (UGR)
16 17
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours

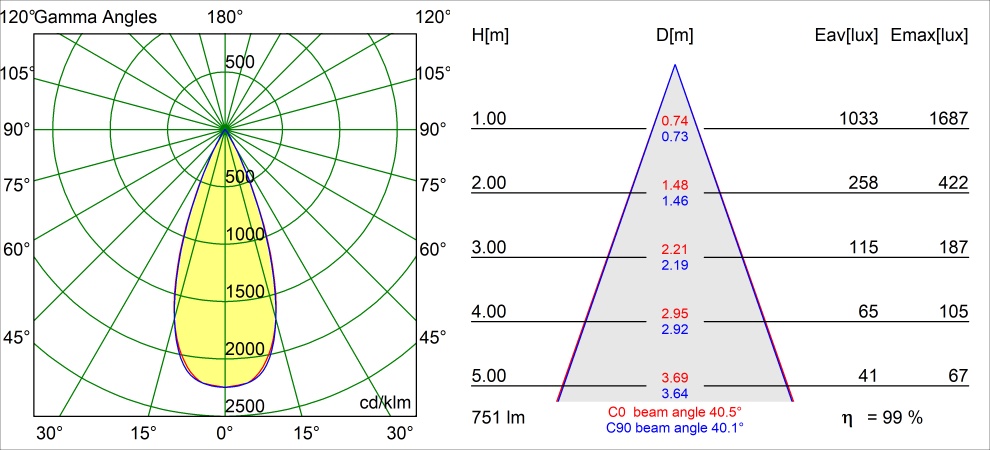

Measured Beam Angle (°)
40.5
CIE Flux Code
98, 99, 100, 100, 99
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
188
Net Weight (g)
111
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
40.5
CIE Flux Code
98, 99, 100, 100, 99
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
188
Net Weight (g)
111
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
556 746
LED Connected Load (W)
5 7.2
Min. LED Fwd Voltage (Vf)
13.2 13.7
Max. LED Fwd Voltage (Vf)
15 15.4
Efficacy (lm/W)
111 103
Glare Rating (UGR)
16 17
Modular logo Go to top Driver 1. Installation Accessories 2. Optical Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Driver

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 2 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 2 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 6
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 6
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 1 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 3 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 4 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 2 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 3 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 4 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 4 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 3 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 7 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 3 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 7 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 124 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 3 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 4 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 1 1 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 4 124 x 79 x 22
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Plaster Kit

Plaster Kit

12293230
Plaster Kit Trimless 150x150 - 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Concrete Kit

Concrete Kit

13515530
Concrete Kit 62 150x150 1x
Concrete Ring

Concrete Ring

13515630
Concrete Ring 62 Standard Installation Housing
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Gypsum Fibreboard

Gypsum Fibreboard

12292630
Gypsum Fibreboard 150x150
Installation Housing

Installation Housing

11624030
Installation Housing 140x250x100x210
Plaster Kit

Plaster Kit

12293230
Plaster Kit Trimless 150x150 - 62 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Optical Accessories

Honeycomb 33

Honeycomb 33

13515132
Honeycomb 33 Black Structure
Light Cone 44

Light Cone 44

13515232
Light Cone 44 Black Structure
13515238
Light Cone 44 White Matt
Snoot 32

Snoot 32

13515032
Snoot 32 Black Structure
13515038
Snoot 32 White Matt

4. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014994_V8-G8 927.JPG
    • CRI_1014997_V8-G8 940.JPG
    • CRI_1014996_V8-G8 935.JPG
    • CRI_1014995_V8-G8 930.JPG
    • TM30_1014994_V8-G8 927.jpg
    • TM30_1014995_V8-G8 930.JPG
    • TM30_1014997_V8-G8 940.JPG
    • TM30_1014996_V8-G8 935.JPG
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_135130XX_TETRIX-CONE_LED_01.dwg
    • SKP_135130XX_TETRIX-CONE_LED_01.skp
    • OBJ_135130XX_TETRIX-CONE_LED_01.obj
    • 3DS_135130XX_TETRIX-CONE_LED_01.3ds
    • CAD2D_REC_TETRIX_02.dwg
    • FBX_135130XX_TETRIX-CONE_LED_01.fbx
    • ELABEL_BridgeluxV8G8_4000K_02.pdf
    • ELABEL_BridgeluxV8G8_3000K_03.pdf
    • ELABEL_BridgeluxV8G8_2700K_02.pdf
    • ELABEL_Bridgelux_V8GEN8_3500K.pdf
    • Declarations_13513338
    • Declarations_13513338
    • Declarations_13513338
  • UKCA declarations
  • EPD declarations

Like what you see and want more?

If you are an interior professional who is looking for lighting to complement their concept, get in touch to request a lighting design or a quote. Are you a consumer? Visit Where to buy to find one of our partners who can provide all the support you require locally.

Request a lighting designRequest a quote

Where to buy

Looking for something?

Type a keyword in the search field and we’ll help you find it

Modular Lighting Instruments logo white

Products

  • Surface mounted lighting for ceiling
  • Recessed lighting for ceiling
  • Suspended lighting for ceiling
  • Profile systems for ceiling
  • Track systems
  • All ceiling lighting
  • Surface mounted lighting for wall
  • Recessed lighting for wall
  • All wall lighting

Projects

  • Residential
  • Office
  • Hospitality
  • Retail
  • Healthcare
  • All projects
  • Project stories

Modular Lighting Instruments

  • Services
  • Where to buy
  • Personalised Project Consultation
  • Resources
  • Local offices
  • Showrooms
  • Sustainability
  • Jobs

Subscribe to our newsletter

Subscribe ;

Follow us on

  • Privacy notice
  • Cookie notice
  • Terms of use
  • About
  • Global | EN
