Smart Smart Cake Recessed48 1x

12870032
LED 3000K Medium DE Black Structure
500mA 2.9Vf 1.45W 101lm 67lm/W CRI90
Smart Cake Recessed 48 1x
Data sheet Technical support
Request a quote
Specifications
1 Drivers 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Downloads

Specifications
LINED_128700XX_V0.pdf
Cut-Out Size (mm)
ø44
Mounting Depth (mm)
52
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
71 101
LED Connected Load (W)
1 1.45
Min. LED Fwd Voltage (Vf)
2.7 2.7
Max. LED Fwd Voltage (Vf)
3.3 3.3
Efficacy (lm/W)
71 67
Glare Rating (UGR)
12 14
LED Type
LED high power
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours

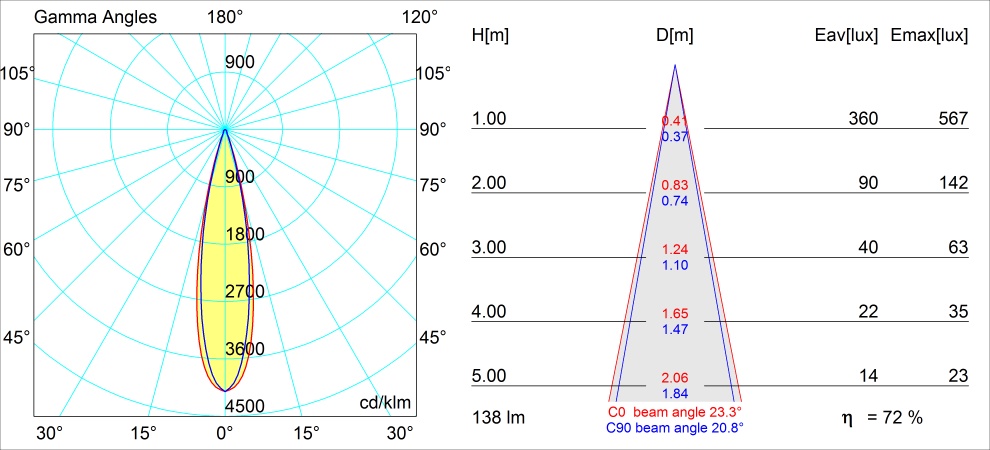

Measured Beam Angle (°)
23.3
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
131
Net Weight (g)
93
Cut-Out Size (mm)
ø44
Mounting Depth (mm)
52
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED high power
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
23.3
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
131
Net Weight (g)
93
Drive Current (mA)
350 500
Luminous flux per lamp (lm)
71 101
LED Connected Load (W)
1 1.45
Min. LED Fwd Voltage (Vf)
2.7 2.7
Max. LED Fwd Voltage (Vf)
3.3 3.3
Efficacy (lm/W)
71 67
Glare Rating (UGR)
12 14
Modular logo Go to top Drivers 1. Installation Accessories 2. Decorative Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Drivers

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 12 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 12 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 32
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 32
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 4 9 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 14 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 21 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 6 12 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 4 6 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 4 16 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 21 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 21 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 21 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 21 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 4 16 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 2 12 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 2 12 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 3 33 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 2 12 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 2 12 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 2 14 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 3 33 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 4 7 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 6 124 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 4 16 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 21 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 7 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 4 7 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 4 6 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 21 124 x 79 x 22
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Installation Housing

Installation Housing

10889530
Installation Housing 123x100x80
Plaster Kit

Plaster Kit

12290730
Plaster Kit 100x120-45 1x
12293730
Plaster Kit 44 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Decorative Accessories

Smart Mask 48 1x

Smart Mask 48 1x

13350009
Mask Smart 48 1x White Structure
13350032
Mask Smart 48 1x Black Structure
13350046
Mask Smart 48 1x Gold Matt
Smart Mask 48 2x

Smart Mask 48 2x

13350109
Mask Smart 48 2x White Structure
13350132
Mask Smart 48 2x Black Structure
13350146
Mask Smart 48 2x Gold Matt

4. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • TENDER_SMART-48_EN_05.pdf
    • TENDER_SMART48_EN_04.pdf
    • OBJ_128700XX_REC_SMART-48-CAKE_01.obj
    • OBJ_128700XX_REC_SMART-48-CAKE_01.obj
    • FBX_128700XX_REC_SMART-48-CAKE_01.fbx
    • FBX_128700XX_REC_SMART-48-CAKE_01.fbx
  • CAD 3D file
  • CAD 2D
    • REACH_SMART RANGE_06.pdf
    • CE_12870032_04.pdf
    • OBJ_128700XX_REC_SMART-48-CAKE_01.obj
    • 3DS_128700XX_REC_SMART-48-CAKE_01.3ds
    • FBX_128700XX_REC_SMART-48-CAKE_01.fbx
    • OBJ_128700XX_REC_SMART-48-CAKE_01.obj
    • 3DS_128700XX_REC_SMART-48-CAKE_01.3ds
    • FBX_128700XX_REC_SMART-48-CAKE_01.fbx
    • SKP_128700XX_REC_SMART-48-CAKE_01.skp
    • SKP_128700XX_REC_SMART-48-CAKE_01.skp
    • EPD_MODULAR_SMART_RECESSED_48_HO_IP55_EU_01.pdf
    • EPD_MODULAR_SMART_RECESSED_48_IP55_EU_01.pdf
    • EPD_MODULAR_SMART_RECESSED_48_LO_EU_01.pdf
  • Line drawings
  • UKCA declarations
