Technical overview
Spec sheet
Need technical information about this profile system? Click to download a dedicated spec sheet.- Dimensions
- 35mm x 20mm (h x w)
- Base thickness
- 1.5mm
- Techniques:
- Ceiling
- Indoor/Outdoor
- Indoor

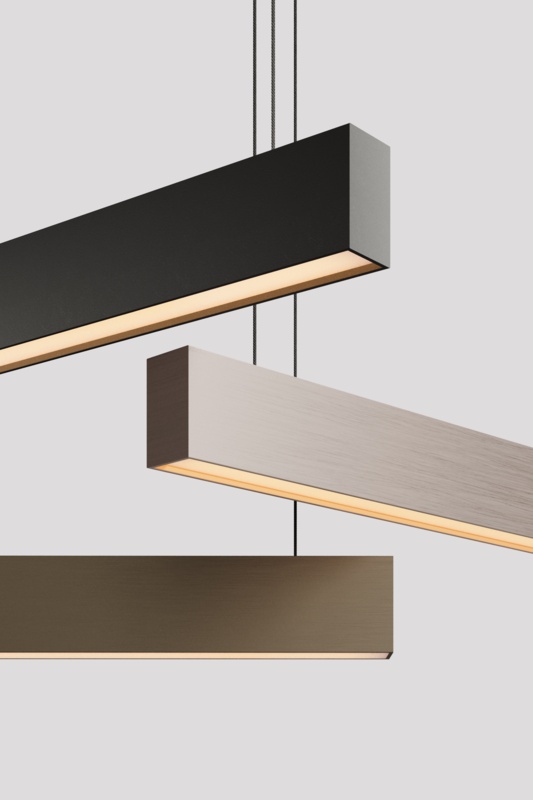

- Finish
-
Brushed anodised: bronze, champagne, silver bronze
Sanded raw aluminum ('Aluminium Silk Brushed')
Fine structured scratch resistant powder coating: black, white

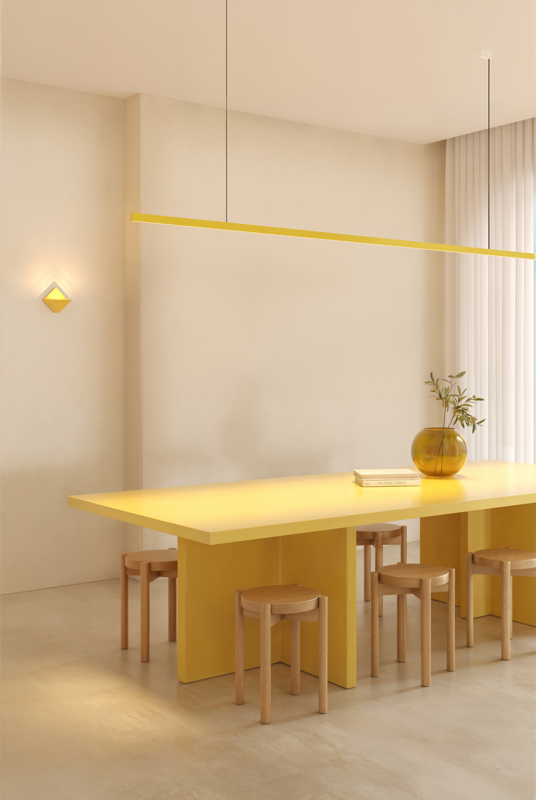

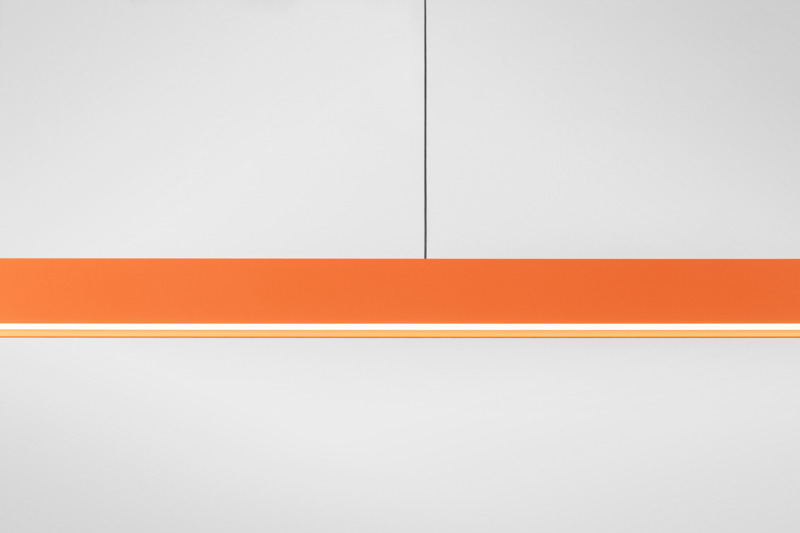

Any RAL or NCS finish possible on request - IP rating
- IP20
- Glow Wire Test
- 960°C
- CRI
- 90+
- Warranty
- 5 years on LED lamps, 5 years on drivers
- Linear Lighting module
-
Linear LED Strip 24V (IP20), 1000lm/m or 2000lm/m. Available for downlight and uplight.
2700K, 3000K, 4000K (3500K on request)
Non-dimmable, 1-10V, Dali/Pushdim
BASE PROFILE SLD20
This profile system consists of an extruded H-shaped base with a polycarbonate diffuser. The base profile is merely 20mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 3 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

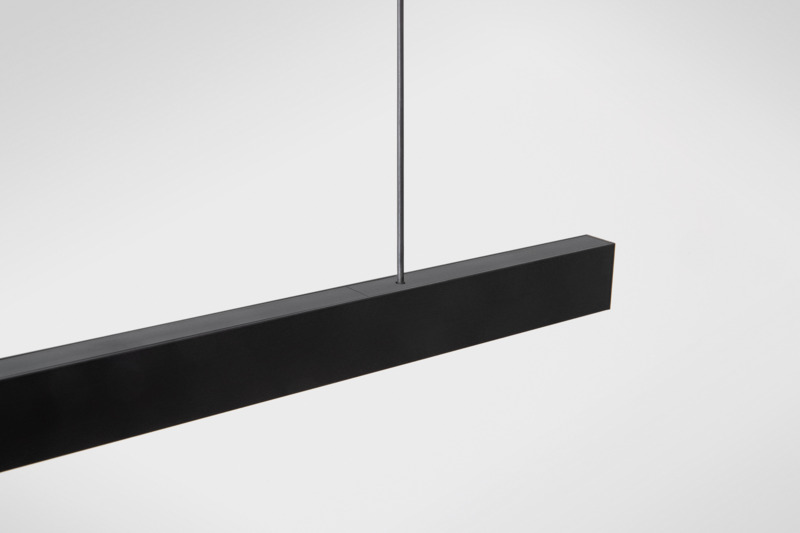

Back Cover SLD20
Designed to conceal all internal components, this cover keeps the engineering out of sight – so all you see is clean, uninterrupted design.

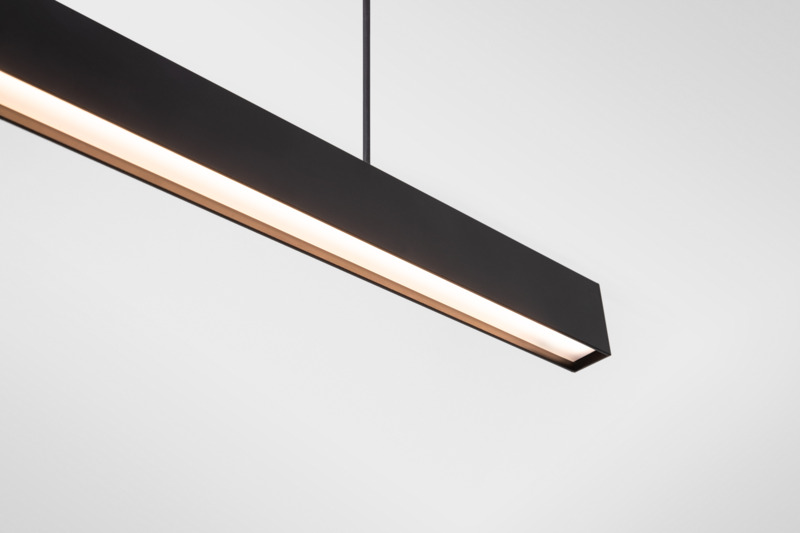

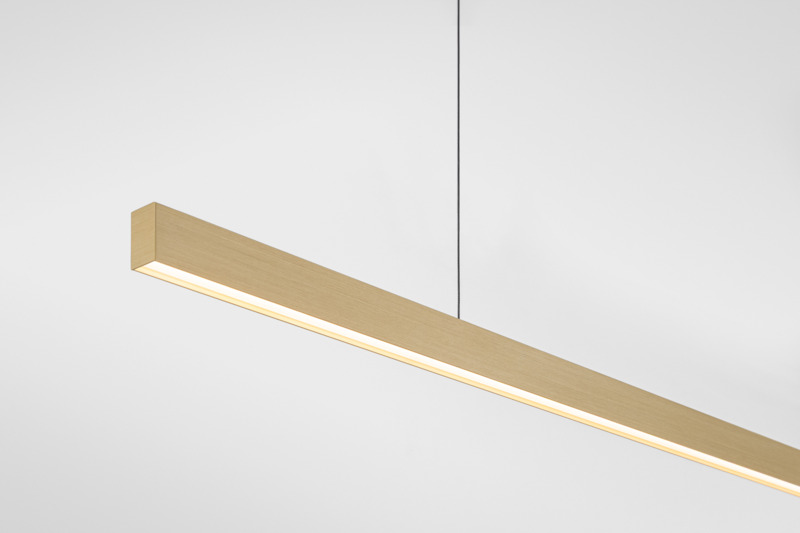

Diffuser SLD20
Opt for a diffuser that aligns seamlessly with the profile surface for a sleek, minimalist look, or go for a slightly recessed diffuser that creates a soft glow along the inner edges.
Suspension Set
Power Feed Canopy Surface
Made to measure. Made for you.
Profiles systems are made-to-measure to give you the possibility to match perfectly the requirements of your project. Choose a base profile, add lighting modules, accessories and controls to make profile systems work just the way you want. Start configuring and discover them all.
Linear light modules
Linear LED strip 24V Mounted
Basic specs
- 2700K, 3000K, 4000K (3500K on request)
- Non-dimmable, 1-10V, Dali/Pushdim
- 1000lm/m, 2000lm/m
Linear LED Strip 24V Uplight Mounted
Basic specs
- 2700K, 3000K, 4000K
- Non-dimmable, 1-10V, Dali/Pushdim
- 1000lm/m, 2000lm/m, 3600lm/m
Downloads
- Data sheet
- Tender text
-
- SKP_SLD20_POLY LOW SUSP+COVER_01.skp
- CAD2D_SLD20_01.dwg
- SKP_936310XX-SLD20 ENDPLATE_01.skp
- SKP_SLD20_POLY HIGH SUSP+COVER_01.skp
- OBJ_SLD20_POLY HIGH SUSP+ENDPLATE+COVER_01.obj
- 3DS_SLD20_POLY HIGH SUSP+ENDPLATE+COVER_01.3ds
- CAD3D_SLD20_POLY LOW SUSP+ENDPLATE+COVER_01.dwg
- FBX_SLD20_POLY HIGH SUSP+ENDPLATE+COVER_01.fbx
- 3DS_SLD20_POLY LOW SUSP+ENDPLATE+COVER_01.3ds
- FBX_SLD20_POLY LOW SUSP+ENDPLATE+COVER_01.fbx
- CAD3D_SLD20_POLY HIGH SUSP+ENDPLATE+COVER_01.dwg
- OBJ_SLD20_POLY LOW SUSP+ENDPLATE+COVER_01.obj
- IES files
