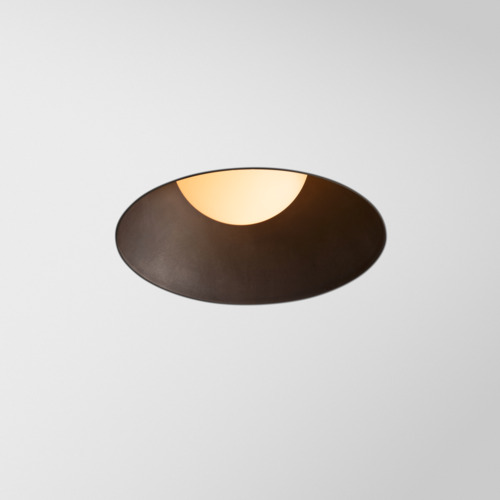

Shellby Shellby Recessed Trimless176 1x

12181104
IP55 LED 3000K DE Cast Grey Matt
500mA 16.9Vf 8.5W 215lm 25lm/W CRI90
Shellby Recessed Trimless 176 1x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Decorative Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_121810XX_02.pdf
Cut-Out Size (mm)
ø200
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
350 500 700
Delivered Lumens (lm)
160 215 279
LED Connected Load (W)
5.7 8.5 12.4
Min. LED Fwd Voltage (Vf)
14.8 15.2 15.9
Max. LED Fwd Voltage (Vf)
18 18.6 19.5
Efficacy (lm/W)
28 25 22
Glare Rating (UGR)
27 28 29
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
CIE Flux Code
48, 81, 97, 100, 22
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
1080
Net Weight (g)
860
Cut-Out Size (mm)
ø200
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
CIE Flux Code
48, 81, 97, 100, 22
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
1080
Net Weight (g)
860
Drive Current (mA)
350 500 700
Delivered Lumens (lm)
160 215 279
LED Connected Load (W)
5.7 8.5 12.4
Min. LED Fwd Voltage (Vf)
14.8 15.2 15.9
Max. LED Fwd Voltage (Vf)
18 18.6 19.5
Efficacy (lm/W)
28 25 22
Glare Rating (UGR)
27 28 29
Modular logo Go to top Led Drivers 1. Installation Accessories 2. Decorative Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Led Drivers

Required
Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 2 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 2 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 4
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 1 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 2 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 3 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 2 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 3 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 3 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 6 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 2 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 6 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 2 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 3 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 1 1 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 3 124 x 79 x 22
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Be aware! Not suitable for 'Acoustic Tiles'
Recessed Ring

Recessed Ring

12182230
Ring Recessed Trimless 177 1x
Be aware! Not suitable for 'Stretched Fabric'
Be aware! Not suitable for 'Wood'
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete
Be aware! Not suitable for 'Exposed Brick'
Concrete Kit

Concrete Kit

12182130
Concrete Kit 177 290x280 1x
Concrete Ring

Concrete Ring

12182330
Concrete Ring 177 Standard Installation Housing
Installation Housing

Installation Housing

12182030
Installation Housing 280x350x100x380
Plaster Kit

Plaster Kit

12292930
Plaster Kit Trimless 290x280 - 177 1x
Gypsum Fibreboard

Gypsum Fibreboard

12293030
Gypsum Fibreboard 290x280
Installation Housing

Installation Housing

12182030
Installation Housing 280x350x100x380
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Decorative Accessories

Shellby Skin

Shellby Skin

12183041
Skin Shellby Champagne Anodised
12183042
Skin Shellby Gold Anodised
12183082
Skin Shellby Bronze Anodised
12183084
Skin Shellby Silver Bronze Anodised
12183092
Skin Shellby Pearly White Matt

4. Smart Lighting Accessories

Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE
