Pista Linear Pista Linear Spots Track 48V429 1x

13460732
LED 3000K Flood DALI Black Structure
19W 1415lm 74lm/W CRI90
Pista Linear Spots Track 48V 429 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_134600XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
Luminous flux per lamp (lm)
1415
Luminaire Power (W)
19
Efficacy (lm/W)
74
Glare Rating (UGR)
18
  • 3500K on request
  • White Pista Track 48V linear modules come with a white track adapter. All other Pista Track 48V linear modules have a black track adapter. Exceptions are only possible on request.
LED Type
LED PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L90B20 @50,000 Hours

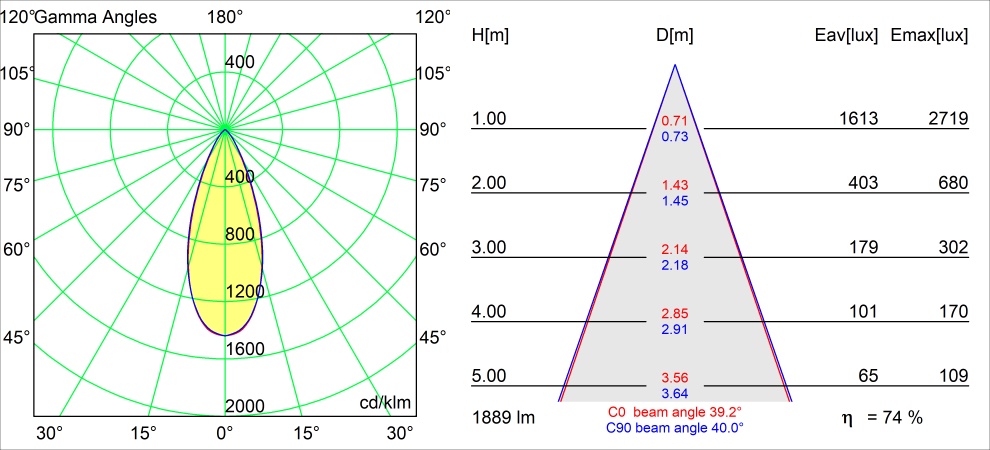

Measured Beam Angle (°)
39.2
CIE Flux Code
94, 100, 100, 100, 75
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
188
Net Weight (g)
139
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L90B20 @50,000 Hours
Measured Beam Angle (°)
39.2
CIE Flux Code
94, 100, 100, 100, 75
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
188
Net Weight (g)
139
  • 3500K on request
  • White Pista Track 48V linear modules come with a white track adapter. All other Pista Track 48V linear modules have a black track adapter. Exceptions are only possible on request.
Luminous flux per lamp (lm)
1415
Luminaire Power (W)
19
Efficacy (lm/W)
74
Glare Rating (UGR)
18

1. Smart Lighting Accessories

Casambi Module 48V

Casambi Module 48V

13470209
Track 48V Dim Module Casambi DALI In Track White Structure
13470232
Track 48V Dim Module Casambi DALI In Track Black Structure
13470302
Track 48V Dim Module Casambi DALI Remote
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_3017381_PISTA-SPOT_935.JPG
    • CRI_3016176_PISTA-SPOT_927.jpg
    • CRI_3016178_PISTA-SPOT_930.jpg
    • TM30_3016178_PISTA-SPOT_930.jpg
    • TM30_3017381_PISTA-SPOT_935.JPG
    • TM30_3016176_PISTA-SPOT_927.jpg
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_134600XX_PISTA-LS-16X_01.dwg
    • SKP_134600XX_PISTA-LS-16X_01.skp
    • OBJ_134600XX_PISTA-LS-16X_01.obj
    • 3DS_134600XX_PISTA-LS-16X_01.3ds
    • FBX_134600XX_PISTA-LS-16X_01.fbx
    • ELABEL_PistaLinearSpot16x_3000K.pdf
    • ELABEL_PistaLinearSpot16x_2700K.pdf
    • ELABEL_PisteLinearSpot16x_4000K.pdf
    • ELABEL_PistaLinearSpot16x_3500K.pdf
    • REACH_PISTA LINEAR_06.pdf
    • EPD_MODULAR_PISTA_LINEAR_SPOTS_TRACK_48V_429_1X_EU_01 .pdf
    • CE_13460732_04.pdf
    • UKCA_13460732_02.pdf

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended
