Passage Passage Track 48VAdjustable 40 1x

13982624
LED 1800-3000K WD Flood DALI Aluminium Brushed
8.6W 732lm 85lm/W CRI95
Passage Track 48V Adjustable 40 1x
Datasheet Technical support
Request a quote

Specifications
LINED_139800XX_02.pdf
Luminous flux per lamp (lm)
732
Luminaire Power (W)
8.6
Efficacy (lm/W)
85
Glare Rating (UGR)
19
  • 3500K and 4000K on request
  • White Passage Track 48V luminaires have a white track adapter. All other Passage Track 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
Colour Temperature
1800-3000K (Warm Dim)
Light Source Type
LED
Adjustability
H 360° v 0°/+90°
Lamp Included
Yes
Luminaire Power (W)
8.6
Light Sources
1
Input Voltage
48vdc
Gross Weight (g)
505
Distance to Lighted Object (m)
0,1
Electrical Class
III
IP Rating
20
Lifetime
L90B10 @50,000 Hours
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Colour Temperature
1800-3000K (Warm Dim)
Light Source Type
LED
Adjustability
H 360° v 0°/+90°
Lamp Included
Yes
Luminaire Power (W)
8.6
Light Sources
1
Input Voltage
48vdc
Gross Weight (g)
505
Distance to Lighted Object (m)
0,1
Electrical Class
III
IP Rating
20
Lifetime
L90B10 @50,000 Hours
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
  • 3500K and 4000K on request
  • White Passage Track 48V luminaires have a white track adapter. All other Passage Track 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
Luminous flux per lamp (lm)
732
Luminaire Power (W)
8.6
Efficacy (lm/W)
85
Glare Rating (UGR)
19

Downloads

Download all ;
General
  • Datasheet
  • Installation instructions
  • Line drawings
  • Tender texts
  • Energy label

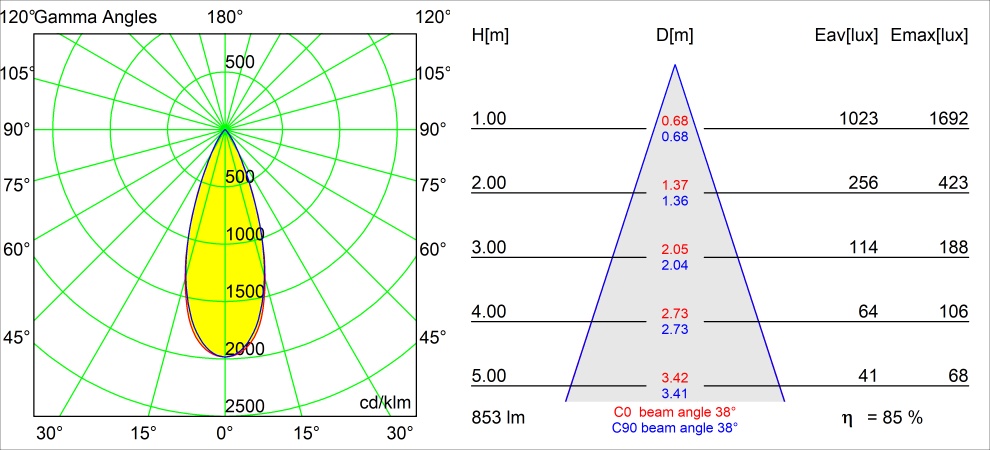

Photometrics
  • TM30 files
  • CRI Files
  • LDT files
  • IES files
  • Polar files
2D – 3D files
  • 3DS files
  • OBJ files
  • SKP files
  • CAD files
Declarations
  • UKCA declarations
  • Reach declarations
  • CE declarations

Accessories

  • Smart Lighting Accessories
  • Led Drivers
Casambi Module 48V

Casambi Module 48V

13470209
Track 48V Dim Module Casambi DALI White Structure
13470232
Track 48V Dim Module Casambi DALI Black Structure
13470302
Track 48V Dim Module Casambi DALI Remote
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI
Track 48V Remote LED Driver 48V

Track 48V Remote LED Driver 48V

12407530
LED Driver Constant Voltage 48V Non-Dim 120W DIN RAIL
12408430
LED Driver Constant Voltage 48V Non-Dim 240W DIN RAIL
12408630
LED Driver Constant Voltage 48V Non-Dim 120W
12408730
LED Driver Constant Voltage 48V Non-Dim 75W
12408930
LED Driver Constant Voltage 48V Non-Dim 240W
12409030
LED Driver Constant Voltage 48V Non-Dim 320W
13550230
LED Driver Constant Voltage 48V Non-Dim 100W
13550330
LED Driver Constant Voltage 48V Non-Dim 150W
13551530
LED Driver Constant Voltage 48V Non-Dim 150W DIN RAIL
