Minude Recessed Trimless 49 1x

13710381
IP54 LED 3000K Spot DE Black Brushed Anodised
500mA 12.2Vf 6.1W 283lm 46lm/W CRI90
3000K LED Spot (10-20°) Remote Driver Excluded
Minude Recessed Trimless 49 1x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_136400XX_02.pdf
Cut-Out Size (mm)
ø79 for use with recessed or concrete ring
Mounting Depth (mm)
100
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
54
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours

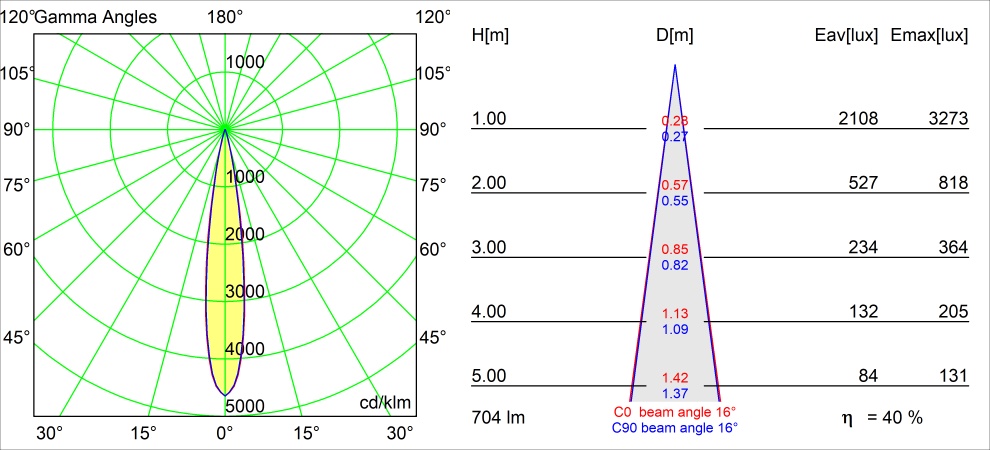

Measured Beam Angle (°)
16
CIE Flux Code
100, 100, 100, 100, 40
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
186
Net Weight (g)
154
Drive Current (mA)
350 500
Delivered Lumens (lm)
209 283
LED Connected Load (W)
4.1 6.1
Min. LED Fwd Voltage (Vf)
11.2 11.2
Max. LED Fwd Voltage (Vf)
13.2 13.2
Efficacy (lm/W)
51 46
Glare Rating (UGR)
1 1
Modular logo Go to top 1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units

1. Led Drivers

Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 3 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 3 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 8
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 8
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 2 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 3 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 5 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 2 3 111 x 52 x 22
12404930 LED Driver Constant Current Trailing Edge 500mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 4 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 5 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 5 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 5 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 5 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 4 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-900mA 10-20W 1 3 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 3 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 8 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 3 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 3 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 3 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 8 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409430 LED Driver Constant Current DALI 500mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 4 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 5 124 x 79 x 22
13550030 LED Driver Constant Current Non-Dim 500mA 12W 1 1 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 5 124 x 79 x 22
Show more

2. Installation Accessories
  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood

Be aware! Not suitable for 'Acoustic Tiles'

Recessed Ring
Required

Recessed Ring

13642030
Ring Recessed Trimless 50 1x

Be aware! Not suitable for 'Stretched Fabric'

Be aware! Not suitable for 'Wood'
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete

Be aware! Not suitable for 'Exposed Brick'

Concrete Ring
Required

Concrete Ring

13642130
Concrete Ring 50 Standard Installation Housing
Recessed Ring
Required

Recessed Ring

13642030
Ring Recessed Trimless 50 1x
  1. Concrete
  2. Tile
  3. Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units
Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
    • CRI_1015740_CLU7A3_927_01.JPG
    • CRI_1015741_CLU7A3_930_01.JPG
    • CRI_1015742_CLU7A3_935_01.JPG
    • CRI_1015743_CLU7A3_940_01.JPG
    • TM30_1015743_CLU7A3_940_01.JPG
    • TM30_1015740_CLU7A3_927_01.JPG
    • TM30_1015741_CLU7A3_930_01.JPG
    • TM30_1015742_CLU7A3_935_01.JPG
    • TENDER_MINUDE-RECESSED-TRIMLESS_EN_05.pdf
    • TENDER_MINUDE-RECESSED-TRIMLESS_EN_02.pdf
    • REACH_MINUDE_06.pdf
    • EPD_MINUDE_RECESSED_TRIMLESS_49_1X_EU_01.pdf
    • CE_13710381_04.pdf
    • UKCA_13710381_02.pdf
  • Line drawings
  • SKP files
    • CAD2D_REC_MINUDE RECESSED_01.dwg
    • CAD3D_136400XX_REC_MINUDE-REC-TRIM_01.dwg
    • SKP_136400XX_REC_MINUDE-REC-TRIM-49_01.skp
    • FBX_136400XX_REC_MINUDE-REC-TRIM_01.fbx
    • 3DS_136400XX_REC_MINUDE-REC-TRIM-49_01.3ds
    • OBJ_136400XX_REC_MINUDE-REC-TRIM-49_01.obj
    • OBJ_136400XX_REC_MINUDE-REC-TRIM-49_01.obj
    • FBX_136400XX_REC_MINUDE-REC-TRIM_01.fbx
    • ELABEL_Citizen_CLU7A3_3000K.pdf
    • ELABEL_Citizen_CLU7A3_2700K.pdf
    • ELABEL_Citizen_CLU7A3_3500K.pdf
    • ELABEL_Citizen_CLU7A3_4000K.pdf
  • Technical document
