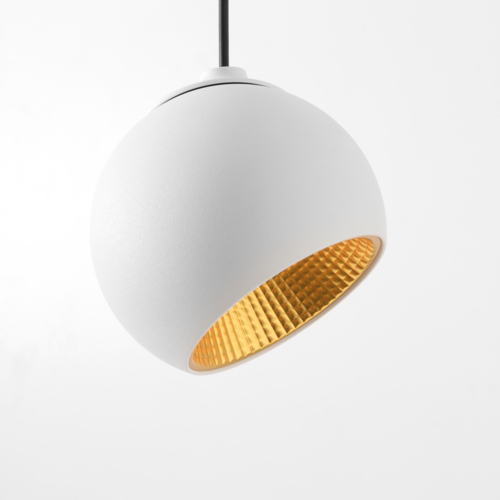

Marbul Marbul SuspendedAdjustable 109 1x

14237009
LED 2700K DE White Structure
350mA 17.3Vf 6W 634lm 106lm/W CRI90
Marbul Suspended Adjustable 109 1x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Optical Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_142370XX_02.pdf
Cut-Out Size (mm)
ø54
Mounting Depth (mm)
35
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
Drive Current (mA)
350 500
Delivered Lumens (lm)
634 852
LED Connected Load (W)
6 8.9
Min. LED Fwd Voltage (Vf)
15.3 15.8
Max. LED Fwd Voltage (Vf)
19.3 19.8
Efficacy (lm/W)
106 96
Glare Rating (UGR)
14 15
  • Longer suspension cable on request (standard length is 2 meter)
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B20 @50,000 Hours
CIE Flux Code
100, 100, 100, 100, 88
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 45°
Gross Weight (g)
949
Net Weight (g)
842
Cut-Out Size (mm)
ø54
Mounting Depth (mm)
35
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B20 @50,000 Hours
CIE Flux Code
100, 100, 100, 100, 88
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 45°
Gross Weight (g)
949
Net Weight (g)
842
  • Longer suspension cable on request (standard length is 2 meter)
Drive Current (mA)
350 500
Delivered Lumens (lm)
634 852
LED Connected Load (W)
6 8.9
Min. LED Fwd Voltage (Vf)
15.3 15.8
Max. LED Fwd Voltage (Vf)
19.3 19.8
Efficacy (lm/W)
106 96
Glare Rating (UGR)
14 15
Modular logo Go to top Led Drivers 1. Optical Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Led Drivers

Required
Required
350mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630030 LED Driver Constant Current Deep Dim DALI 350mA 20W 1 2 160 x 41.5 x 30.5
11630330 LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W 1 2 160 x 41.5 x 30.5
11630630 LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11630930 LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 2 111 x 35 x 20
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 2 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 3 124 x 79 x 22
12404230 LED Driver Constant Current Trailing Edge 350mA 18W 2 2 111 x 52 x 22
12404830 LED Driver Constant Current Trailing Edge 350mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 3 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 3 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 3 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-700mA 10-20W 1 2 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 2 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 2 5 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 2 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 2 5 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409330 LED Driver Constant Current DALI 350mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 2 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 3 124 x 79 x 22
13550130 LED Driver Constant Current Non-Dim 350mA 15W 1 2 115 x 34 x 19
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13551930 LED Driver Constant Current Trailing Edge 200-350mA 4-14W 2 2 128.8 x 32 x 25.7
13552030 LED Driver Constant Current Trailing Edge 350-700mA 4-14W 1 1 128.8 x 32 x 25.7
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 3 124 x 79 x 22
Show more

2. Optical Accessories

Required
Required
Magnetic Reflector 82

Magnetic Reflector 82

10216830
Reflector 82 Super Spot Aluminium Anodised
10216930
Reflector 82 Super Spot Champagne Anodised
10217030
Reflector 82 Super Spot Gold Anodised
10217130
Reflector 82 Medium Aluminium Anodised
10217230
Reflector 82 Medium Champagne Anodised
10217330
Reflector 82 Medium Gold Anodised
10217430
Reflector 82 Flood Aluminium Anodised
10217530
Reflector 82 Flood Champagne Anodised
10217630
Reflector 82 Flood Gold Anodised

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1013912_CREE1507_3500K.jpg
    • CRI_1013911_CREE1507_3000K.jpg
    • CRI_1013910_CREE1507_2700K.jpg
    • TM30_1013910_CREE1507_2700K.jpg
    • TM30_1013911_CREE1507_3000K.jpg
    • TM30_1013912_CREE1507_3500K.jpg
    • TENDER_MARBUL-SUSPENSION-ADJUSTABLE_EN_02.pdf
    • TENDER_MARBUL-SUSPENSION-ADJUSTABLE_DE_02.pdf
    • TENDER_MARBUL-SUSPENSION-ADJUSTABLE_FR_02.pdf
    • TENDER_MARBUL-SUSPENSION-ADJUSTABLE_NL_02.pdf
    • REACH_MARBUL_06.pdf
    • CE_14237009_04.pdf
    • UKCA_14237009_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_142370XX_SURF_MARBUL-SUSPENSION-ADJUSTABLE-GE_V0.dwg
    • OBJ_142370XX_SURF_MARBUL-SUSPENSION-ADJUSTABLE-GE_01.obj
    • SKP_142370XX_SURF_MARBUL-SUSPENSION-ADJUSTABLE-GE_01.skp
    • 3DS_142370XX_SURF_MARBUL-SUSPENSION-ADJUSTABLE-GE_01.3ds
    • FBX_142370XX_SURF_MARBUL-SUSPENSION-ADJUSTABLE-GE_01.fbx
    • ELABEL_Cree_1507_4000K.pdf
    • ELABEL_Cree_1507_3500K.pdf
    • ELABEL_Cree_1507_3000K.pdf
    • ELABEL_Cree_1507_2700K.pdf
