Kogel Surface Adjustable 58 2x

13561332
LED 2700K Trailing Edge DI Black Structure
20.5W 651lm 64lm/W CRI90
2700K LED Driver Included
Kogel Surface Adjustable 58 2x
Datasheet Technical support
Request a quote
Specifications
1 Optical Accessories 2 Smart Lighting Accessories
Compatible with Downloads

Specifications
LINED_135610XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED COB
Light Sources
2
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B20 @50,000 Hours
CIE Flux Code
98, 100, 100, 100, 66
Electrical Class
I
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 50°
Gross Weight (g)
2190
Net Weight (g)
1834
Delivered Lumens (lm)
651
Luminaire Power (W)
20.5
Efficacy (lm/W)
64
Glare Rating (UGR)
20
Modular logo Go to top 1 Optical Accessories 2 Smart Lighting Accessories

1. Optical Accessories
Magnetic Reflector 51
Required

Magnetic Reflector 51

10219930
Reflector 51 Spot Aluminium Anodised
10220030

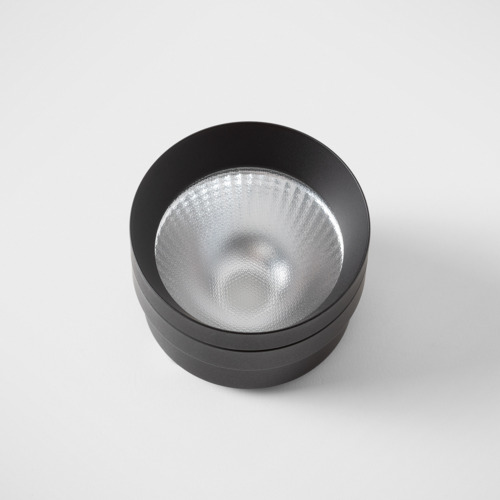

Reflector 51 Medium Aluminium Anodised
10220130
Reflector 51 Flood Aluminium Anodised

2. Smart Lighting Accessories
Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

Downloads

Download all
  • Datasheet
  • Installation instructions
    • LDT_135603XX-10219930_SURF_KOGEL_2700K_01.zip
    • LDT_135603XX_SURF_KOGEL_2700K_01.zip
    • IES_135603XX-10219930_SURF_KOGEL_2700K_01.zip
    • IES_135603XX_SURF_KOGEL_2700K_01.zip
    • POLB_135603XX-10220030_SURF_KOGEL_2700K-M_01.Jpg
    • POLB_135603XX_SURF_KOGEL_2700K_01.zip
    • CRI_1015283_V6HD-G8 927.JPG
    • CRI_1015285_V6HD-G8 935.JPG
    • CRI_1015284_V6HD-G8 930.JPG
    • CRI_1015286_V6HD-G8 940.JPG
    • TM30_1015284_V6HD-G8 930.JPG
    • TM30_1015285_V6HD-G8 935.JPG
    • TM30_1015283_V6HD-G8 927.JPG
    • TM30_1015286_V6HD-G8 940.JPG
    • TENDER_KOGEL_EN_02.pdf
    • TENDER_KOGEL_EN_02.pdf
    • TENDER_KOGEL_EN_02.pdf
    • REACH_KOGEL_06.pdf
    • CE_13561332_04.pdf
    • UKCA_13561332_02.pdf
  • Line drawings
  • SKP files
    • OBJ_135610XX_SURF_KOGEL-2X_01.obj
    • FBX_135610XX_SURF_KOGEL-2X_01.fbx
    • CAD3D_135610XX_SURF_KOGEL 2XLED_02.zip
    • SKP_135610XX_SURF_KOGEL-2X_01.skp
    • 3DS_135610XX_SURF_KOGEL-2X_01.3ds
    • CAD2D_SURF_KOGEL_01.dwg
    • CAD3D_135610XX_SURF_KOGEL-2X_01.dwg
    • ELABEL_Bridgelux_V6HDG8_2700K.pdf
    • ELABEL_Bridgelux_V6HDG8_3000K.pdf
    • ELABEL_Bridgelux_V6HDG8_3500K.pdf
    • ELABEL_Bridgelux_V6HDG8_4000K.pdf
