K K 77 RecessedAdjustable 77 1x

14051232
LED 2700K Flood Trailing Edge RD Black Structure
9.5W 668lm 70lm/W CRI90
K 77 Recessed Adjustable 77 1x
Datasheet Technical support
Request a quote
Specifications
1 Installation Accessories 2 Decorative Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_140500XX_V0.pdf
Cut-Out Size (mm)
ø70
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
Luminous flux per lamp (lm)
668
Luminaire Power (W)
9.5
Efficacy (lm/W)
70
Glare Rating (UGR)
21
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours

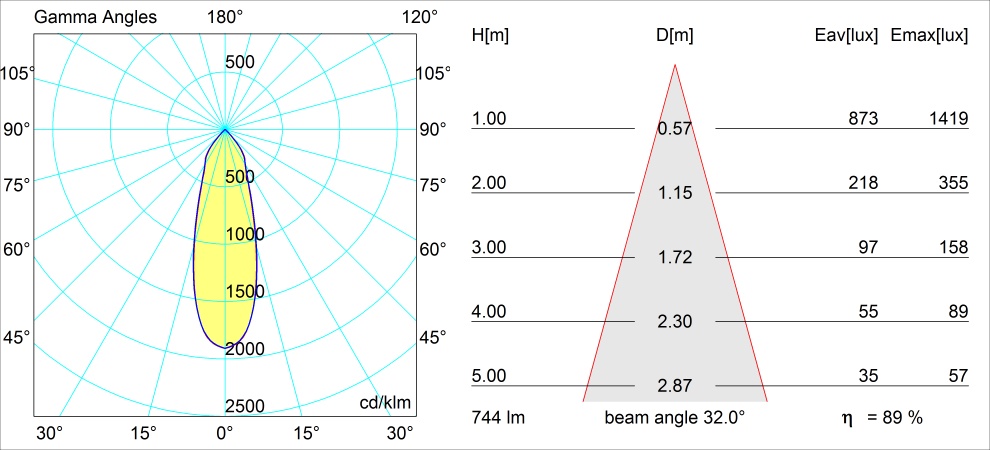

Measured Beam Angle (°)
32
CIE Flux Code
95, 100, 100, 100, 90
Electrical Class
II
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v -30°/+30°
Gross Weight (g)
208
Net Weight (g)
155
Cut-Out Size (mm)
ø70
Mounting Depth (mm)
60
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
32
CIE Flux Code
95, 100, 100, 100, 90
Electrical Class
II
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v -30°/+30°
Gross Weight (g)
208
Net Weight (g)
155
Luminous flux per lamp (lm)
668
Luminaire Power (W)
9.5
Efficacy (lm/W)
70
Glare Rating (UGR)
21
Modular logo Go to top Installation Accessories 1. Decorative Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. In-situ concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Installation Housing

Installation Housing

10889830
Installation Housing 192x190x130
Plaster Kit

Plaster Kit

12290130
Plaster Kit 190X190 - 70 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

2. Decorative Accessories

K-Set

K-Set

14052009
K-Set 77 1x White Structure
14052032
K-Set 77 1x Black Structure
14052109
K-Set 77 2x White Structure
14052132
K-Set 77 2x Black Structure

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
General
  • Datasheet
  • Installation instructions
  • Line drawings
  • Tender texts
    • ELABEL_BridgeluxV8G8_4000K.pdf
    • ELABEL_BridgeluxV8G8_3000K.pdf
    • ELABEL_BridgeluxV8G8_2700K.pdf
    • ELABEL_Bridgelux_V8GEN8_3500K.pdf
Photometrics
    • TM30_1014994_V8-G8 927.jpg
    • TM30_1014995_V8-G8 930.JPG
    • TM30_1014997_V8-G8 940.JPG
    • TM30_1014996_V8-G8 935.JPG
    • CRI_1014994_V8-G8 927.JPG
    • CRI_1014997_V8-G8 940.JPG
    • CRI_1014996_V8-G8 935.JPG
    • CRI_1014995_V8-G8 930.JPG
  • LDT files
  • IES files
  • Polar files
2D – 3D files
  • 3DS files
  • FBX files
  • OBJ files
  • SKP files
    • CAD3D_140501XX_REC_K77_LED_V0.dwg
    • CAD2D_REC_K72-K77_V0.dwg
Declarations
  • UKCA declarations
  • Reach declarations
  • CE declarations
