Lotis Round Lotis Round Recessed86 1x

11456208
FFD_ IP55 LED GU10 2700K Medium Leading Edge Black Structure
Lotis Round Recessed 86 1x
Datasheet Technical support
Request a Project Consultation
Specifications Installation Accessories Downloads

Specifications

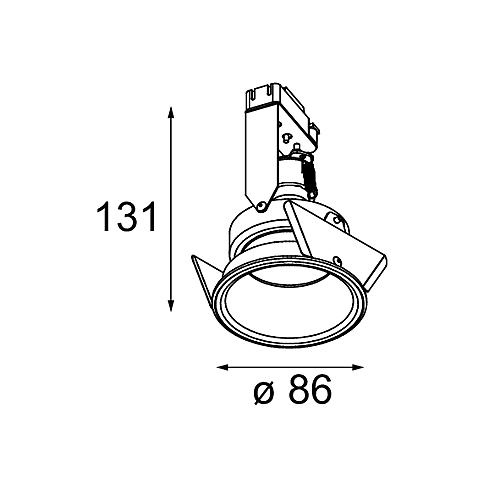

LINED_114562XX_REC_LOTIS BATHROOM_LED 350lm_V0.pdf
Cut-Out Size (mm)
ø79
Mounting Depth (mm)
135
Light Source Type
LED GU10
Lamp Included
Yes
Input Voltage
230v
IP Rating
55
  • This is not a complete product. Light module required.
Socket Type
Gu10
Max Lamp Wattage (W)
5.5
Dimming Protocol
Leading edge
Electrical Class
II
Gross Weight (g)
305
Net Weight (g)
220
Cut-Out Size (mm)
ø79
Mounting Depth (mm)
135
Light Source Type
LED GU10
Lamp Included
Yes
Input Voltage
230v
IP Rating
55
Socket Type
Gu10
Max Lamp Wattage (W)
5.5
Dimming Protocol
Leading edge
Electrical Class
II
Gross Weight (g)
305
Net Weight (g)
220
  • This is not a complete product. Light module required.

1. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. In-situ concrete
  3. Plastered Brick/Concrete
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
Installation Housing

Installation Housing

10889830
Installation Housing 192x190x130
Plaster Kit

Plaster Kit

12290230
Plaster Kit 190X190 - 80 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

Downloads

Download all ;
General
  • Datasheet
  • Installation instructions
  • Line drawings

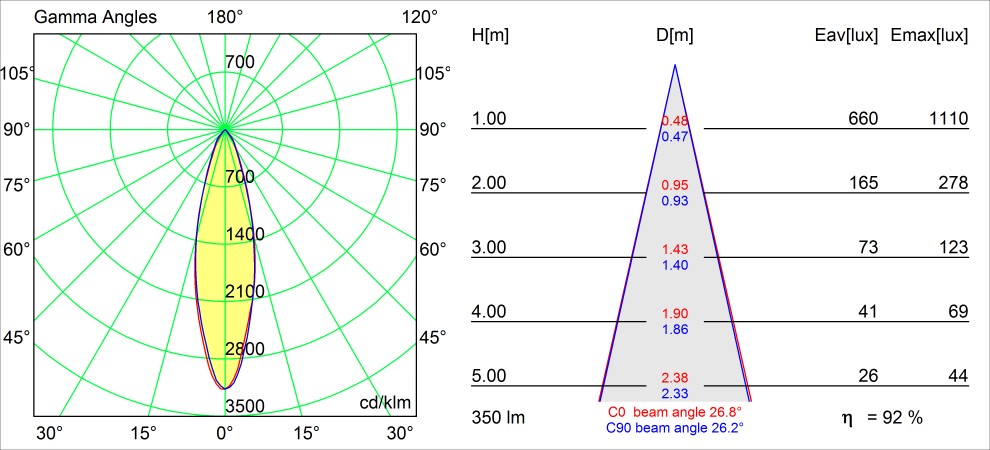

Photometrics
  • LDT files
  • IES files
  • Polar files
2D – 3D files
  • 3DS files
  • OBJ files
  • SKP files
  • CAD files
Declarations
  • UKCA declarations
  • Reach declarations
  • CE declarations
