Resumen técnico

Ficha técnica

¿Necesita información técnica sobre este sistema de perfiles? Haga clic para descargar una hoja de especificaciones dedicada.

Descargar

Dimensiones: 100mm x 75mm (h x w)
Grosor de la base: 1.5mm
Techniques:: Ceiling
Interio/Exterior: Indoor
Acabado: Anodised: aluminium
Fine structured scratch resistant powder coating: black, white
Clasificación del IP: IP20

Prueba del hilo incandescente: 960°C
CRI: 90+
Garantía: 5 years on LED lamps, 5 years on drivers
Módulo de iluminación lineal: High power LED line
2700K, 3000K, 4000K (3500K bajo pedido)
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
Available in preset dimmed version 50%

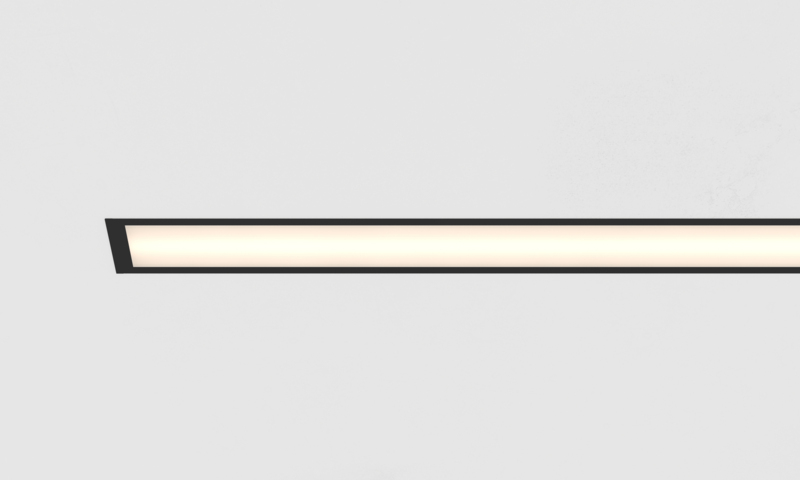

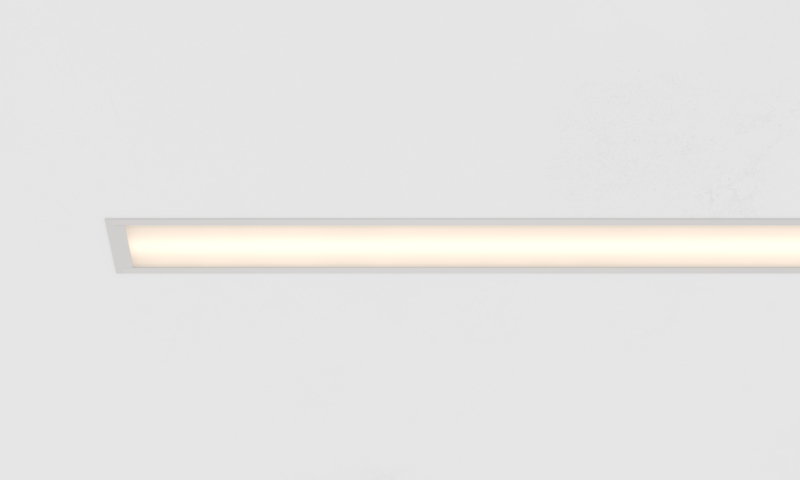

Base Profile SLD75 Recessed

This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

Diffuser PMMA SLD75

This milky diffuser made of PMMA offers maximum lumen output perfect for projects where a lot of light is required.

Diffuser Polycarbonate SLD75

Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

Diffuser Prismatic SLD75

Prismatic diffusers offer maximum reduction of glare and improve the UGR rating profiles. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.
