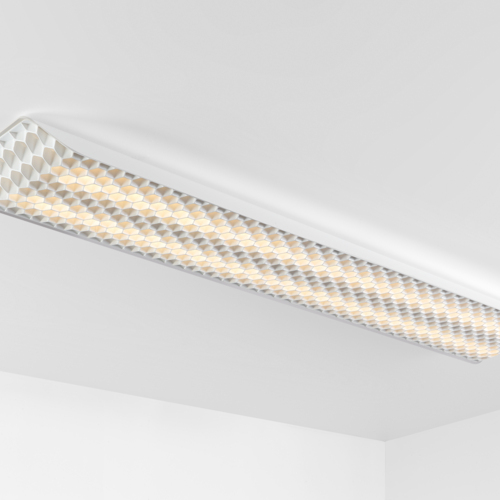

Vaeder Surface 1x

14083273
LED 4000K DALI/Push-Dim DI White Structure - White Matt
36W 2669lm 74lm/W CRI90
4000K LED Driver Included
Vaeder Surface 1x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications

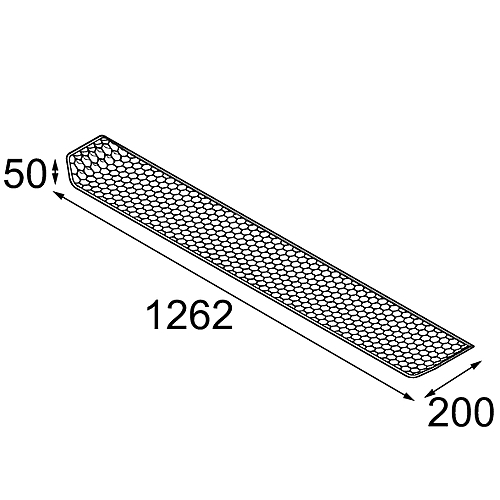

LINED_140801XX_V0.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
4000K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
CIE Flux Code
63, 87, 97, 100, 61
Electrical Class
I
Dimming Protocol
Dali, Push-dim
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
5076
Net Weight (g)
3510
Delivered Lumens (lm)
2669
Luminaire Power (W)
36
Efficacy (lm/W)
74
Glare Rating (UGR)
17

1. Smart Lighting Accessories
Casambi Module

Casambi Module

13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files

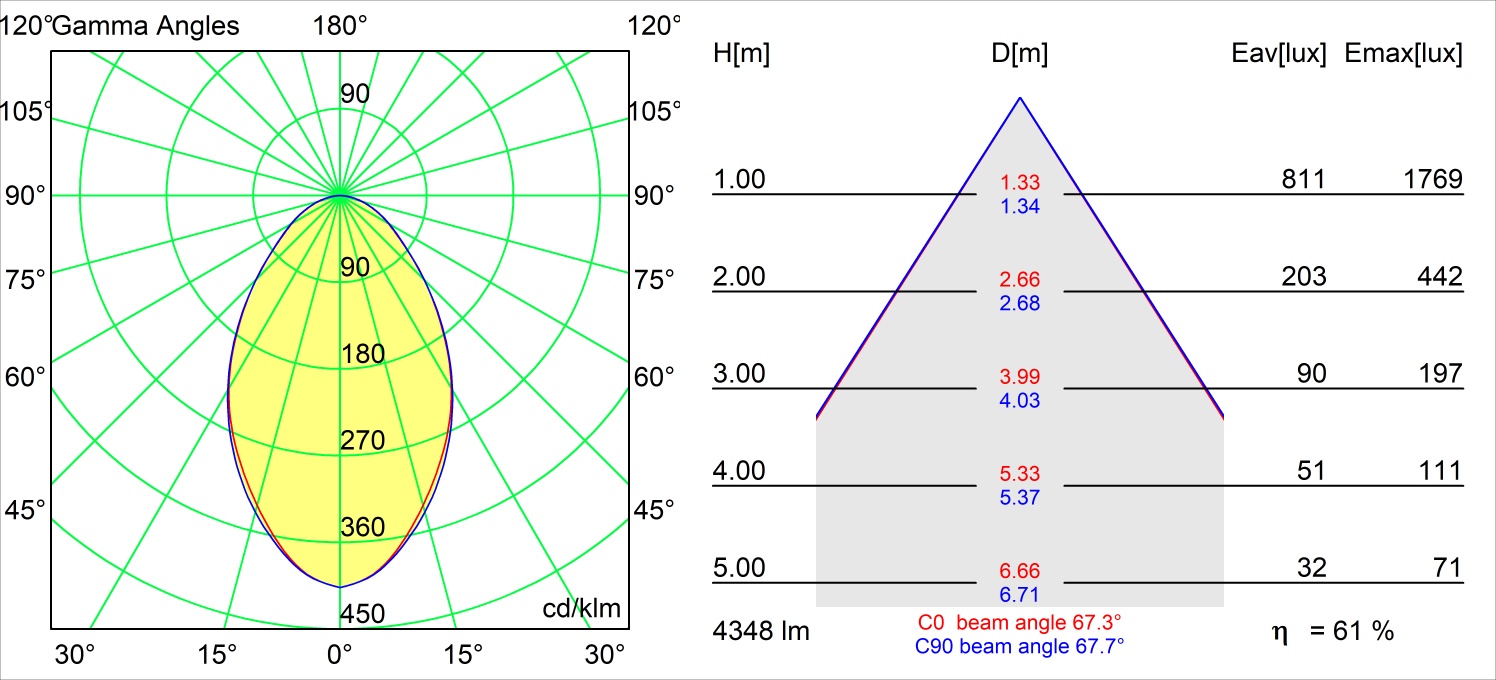

  • POLAR files

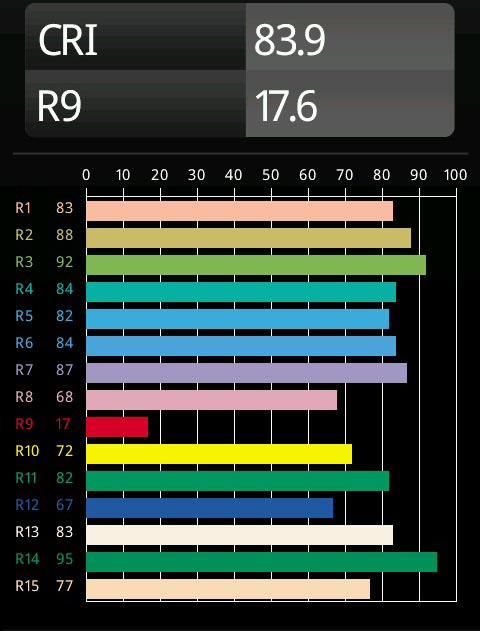

    • CRI_FORTIMO-LEDLINE_4000K_CRI80_1011282.jpg

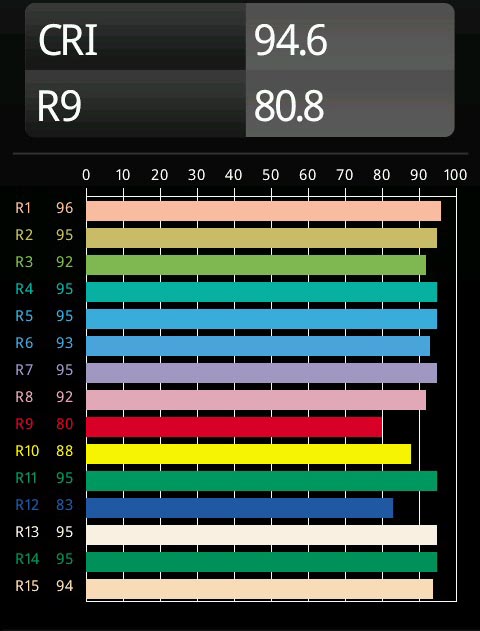

    • CRI_FORTIMO-LEDLINE_3000K_CRI90_3013326.jpg

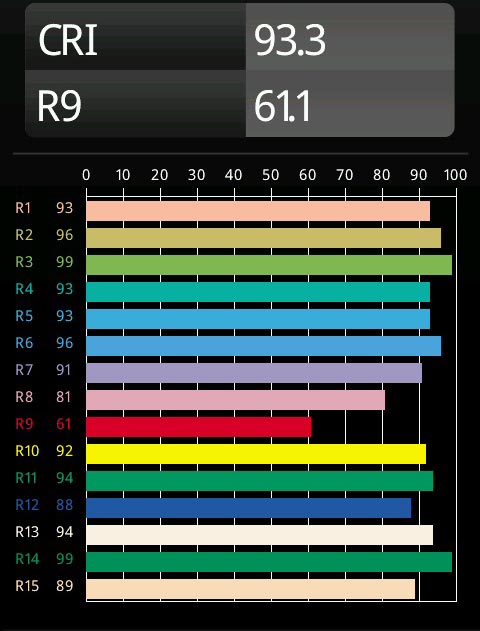

    • CRI_FORTIMO_LEDLINE_2700K_CRI90_3013325.jpg
  • TM30 files
  • Tender text
    • REACH_VAEDER_06.pdf
    • CE_14083273_04.pdf
    • UKCA_14083273_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_140801XX_SURF_VAEDER_V0.dwg
    • CAD2D_SURF_VAEDER_LED_V0.dwg
    • OBJ_140801XX_SURF_VAEDER_01.obj
    • SKP_140801XX_SURF_VAEDER_01.skp
    • 3DS_140801XX_SURF_VAEDER_01.3ds
    • FBX_140801XX_SURF_VAEDER_01.fbx
    • ELABEL_NLP_3000K.pdf
    • ELABEL_NLP_2700K.pdf
    • ELABEL_NLP_4000K.pdf
