  1. Go back

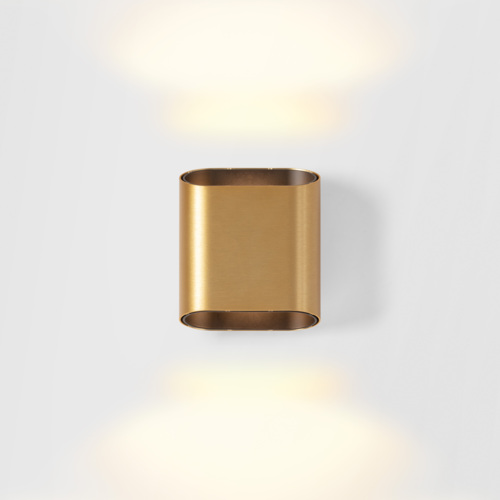

Trapz Trapz WallUp/Down 2x

12591096
LED 2700K 1-10V/Push-Dim DI Champagne Brushed Anodised - Black Matt
12W 564lm 47lm/W CRI90
Trapz Wall Up/Down 2x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_1259X0XX_SURF_TRAPZ_V0.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
Delivered Lumens (lm)
564
Luminaire Power (W)
12
Efficacy (lm/W)
47
Glare Rating (UGR)
16
LED Type
LED COB
Light Sources
2
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours

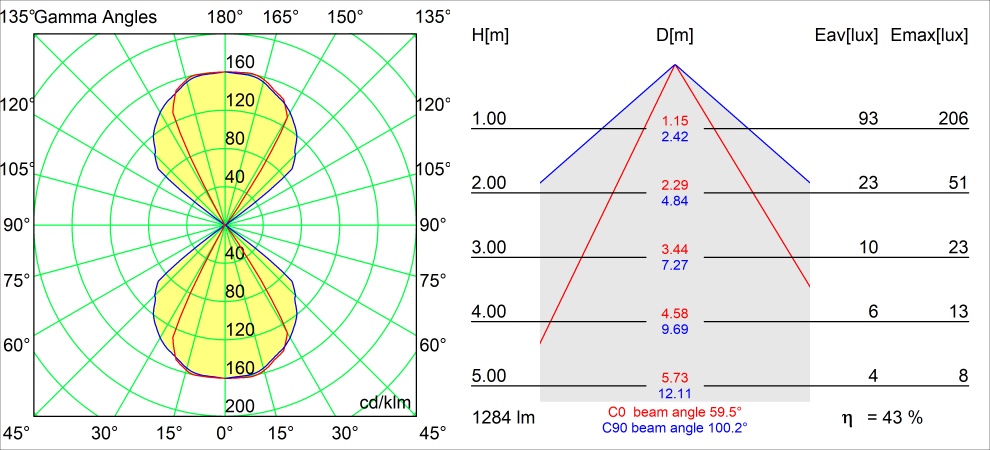

CIE Flux Code
69, 92, 98, 50, 58
Electrical Class
I
Dimming Protocol
1-10v, Push-dim
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
1188
Net Weight (g)
969
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED COB
Light Sources
2
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
CIE Flux Code
69, 92, 98, 50, 58
Electrical Class
I
Dimming Protocol
1-10v, Push-dim
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
1188
Net Weight (g)
969
Delivered Lumens (lm)
564
Luminaire Power (W)
12
Efficacy (lm/W)
47
Glare Rating (UGR)
16

1. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014994_V8-G8 927.JPG
    • CRI_1014997_V8-G8 940.JPG
    • CRI_1014996_V8-G8 935.JPG
    • CRI_1014995_V8-G8 930.JPG
    • TM30_1014994_V8-G8 927.jpg
    • TM30_1014995_V8-G8 930.JPG
    • TM30_1014997_V8-G8 940.JPG
    • TM30_1014996_V8-G8 935.JPG
    • REACH_TRAPZ_06.pdf
    • CE_12591096_04.pdf
    • UKCA_12591096_02.pdf
  • Line drawings
  • 2D/3D files
    • ELABEL_BridgeluxV8G8_4000K_02.pdf
    • ELABEL_BridgeluxV8G8_3000K_03.pdf
    • ELABEL_BridgeluxV8G8_2700K_02.pdf
    • ELABEL_Bridgelux_V8GEN8_3500K.pdf
