Tetrix Tetrix Straight Recessed62 1x

13740183
IP55 LED 1800-3000K WD Medium DE Black Matt
250mA 33Vf 8.3W 544lm 66lm/W CRI95
Tetrix Straight Recessed 62 1x
Data sheet Technical support
Request a quote
Specifications
1 Driver 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories 5 Back-Up Units
Compatible with Downloads

Specifications
LINED_135110XX_01.pdf
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
250
Delivered Lumens (lm)
544
LED Connected Load (W)
8.3
Min. LED Fwd Voltage (Vf)
29.5
Max. LED Fwd Voltage (Vf)
35.8
Efficacy (lm/W)
66
Glare Rating (UGR)
16
LED Type
LED COB
Light Sources
1
Colour Temperature
1800-3000K (Warm Dim)
Binning (SDCM)
3
Lifetime
L90B10 @50,000 Hours

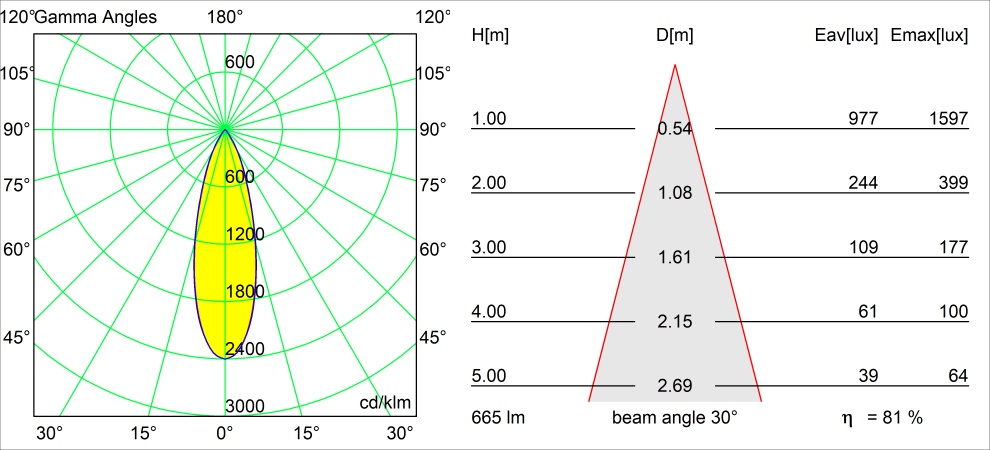

Measured Beam Angle (°)
30
CIE Flux Code
99, 100, 100, 100, 82
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
146
Net Weight (g)
94
Cut-Out Size (mm)
ø68 for Frame Recessed; ø89 for Frame Recessed TrimLess
Mounting Depth (mm)
110
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
1800-3000K (Warm Dim)
Binning (SDCM)
3
Lifetime
L90B10 @50,000 Hours
Measured Beam Angle (°)
30
CIE Flux Code
99, 100, 100, 100, 82
Electrical Class
III
Glow Wire Rating
850°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
146
Net Weight (g)
94
Drive Current (mA)
250
Delivered Lumens (lm)
544
LED Connected Load (W)
8.3
Min. LED Fwd Voltage (Vf)
29.5
Max. LED Fwd Voltage (Vf)
35.8
Efficacy (lm/W)
66
Glare Rating (UGR)
16
Modular logo Go to top Driver 1. Installation Accessories 2. Optical Accessories 3. Smart Lighting Accessories 4. Back-Up Units 5.

1. Driver

Required
Required
250mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11631230 LED Driver Constant Current Deep Dim DALI 250mA 20W 1 1 160 x 41.5 x 30.5
11631330 LED Driver Constant Current Deep Dim 0-10V/1-10V 250mA 20W 1 1 160 x 41.5 x 30.5
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 1 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 1 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 1 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 3 124 x 79 x 22
12409230 LED Driver Constant Current DALI 250mA 10W WD 1 1 145 x 31 x 21
12409630 LED Driver Constant Current Trailing Edge 250mA 12W 1 1 111 x 52 x 22
13551930 LED Driver Constant Current Trailing Edge 200-350mA 4-14W 1 1 128.8 x 32 x 25.7
Show more

2. Installation Accessories

  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Plaster Kit

Plaster Kit

12293230
Plaster Kit Trimless 150x150 - 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Concrete Kit

Concrete Kit

13515530
Concrete Kit 62 150x150 1x
Concrete Ring

Concrete Ring

13515630
Concrete Ring 62 Standard Installation Housing
Recessed Ring

Recessed Ring

13510038
Ring Recessed 62 1x IP55 White Matt
13510083
Ring Recessed 62 1x IP55 Black Matt
13515430
Ring Recessed Trimless 62 1x
Gypsum Fibreboard

Gypsum Fibreboard

12292630
Gypsum Fibreboard 150x150
Installation Housing

Installation Housing

11624030
Installation Housing 140x250x100x210
Plaster Kit

Plaster Kit

12293230
Plaster Kit Trimless 150x150 - 62 1x
  1. Concrete
  2. Tile
  3. Wood
Be aware! Not suitable for 'Concrete'
Be aware! Not suitable for 'Tile'
Be aware! Not suitable for 'Wood'

3. Optical Accessories

Honeycomb 33

Honeycomb 33

13515132
Honeycomb 33 Black Structure
Light Cone 44

Light Cone 44

13515232
Light Cone 44 Black Structure
13515238
Light Cone 44 White Matt
Light Cone 64

Light Cone 64

13515332
Light Cone 64 Black Structure
13515338
Light Cone 64 White Matt
Snoot 32

Snoot 32

13515032
Snoot 32 Black Structure
13515038
Snoot 32 White Matt

4. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

5. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
  • CRI files
  • TM30 files
    • TENDER_TETRIX_EN_02.pdf
    • TENDER_TETRIX-GU10_EN_01.pdf
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD2D_REC_TETRIX_02.dwg
    • CAD3D_135110XX_TETRIX-STRAIGHT_LED_01.dwg
    • SKP_135110XX_TETRIX-STRAIGHT_LED_01.skp
    • 3DS_135110XX_TETRIX-STRAIGHT_LED_01.3ds
    • FBX_135110XX_TETRIX-STRAIGHT_LED_01.fbx
    • OBJ_135110XX_TETRIX-STRAIGHT_LED_01.obj
  • Energy Label
    • REACH_TETRIX_06.pdf
    • EPD_TETRIX_STRAIGHT_RECESSED_62_1X_NON_GU10_EU_01.pdf
    • CE_13740183_04.pdf
    • UKCA_13740183_02.pdf
