Technical overview

Spec sheet

Need technical information about this profile system? Click to download a dedicated spec sheet.

Download

Dimensions: 35mm x 20mm (h x w)
Base thickness: 1.5mm
Techniques:: Ceiling
Indoor/Outdoor: Indoor

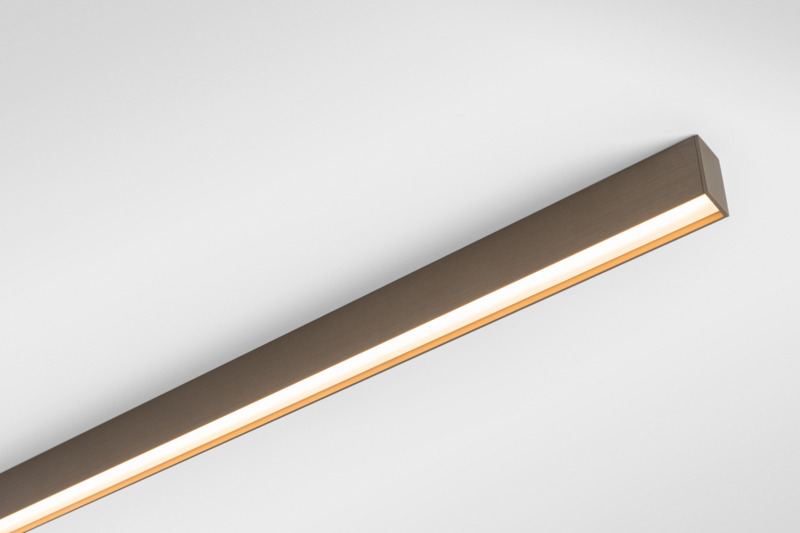

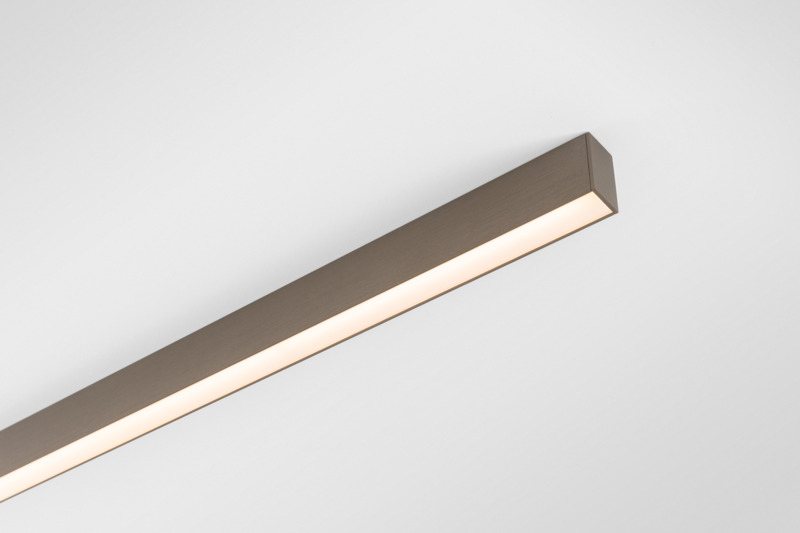

Finish: Brushed anodised: bronze, champagne, silver bronze
Fine structured scratch resistant powder coating: black, white

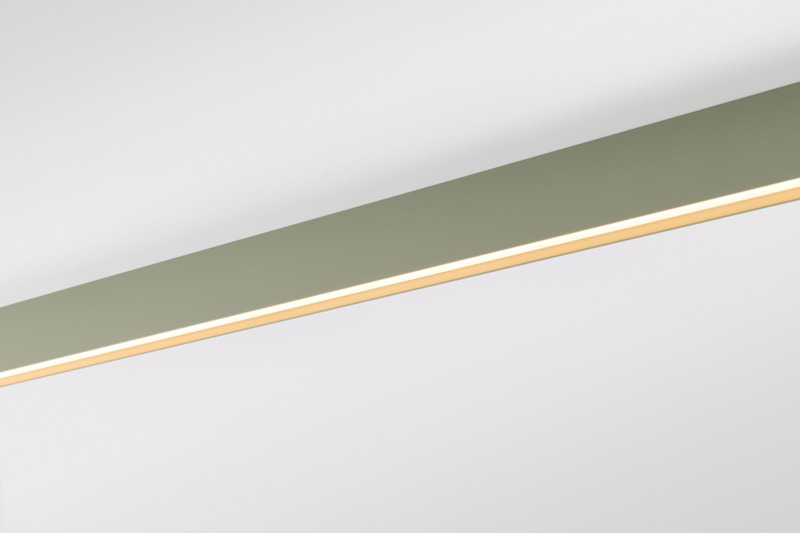

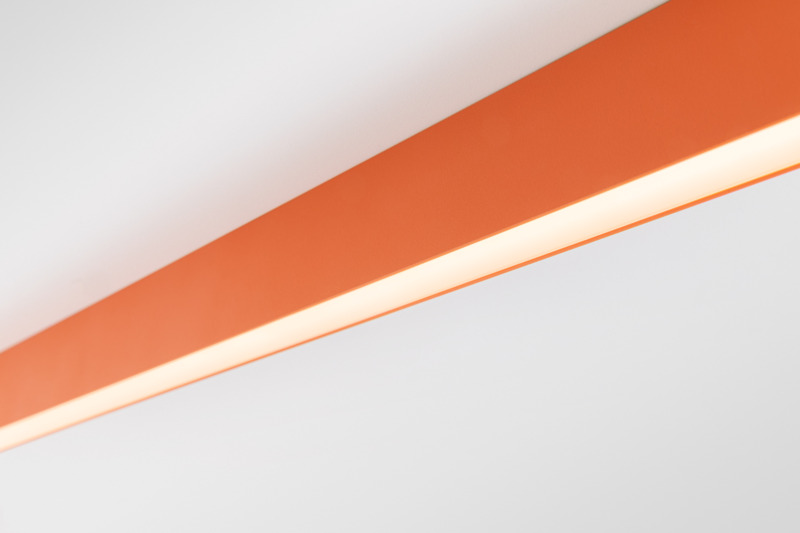

Any RAL or NCS finish possible on request
IP rating: IP20, IP44 (only when used with IP65 flexible LED strip)

Glow Wire Test: 960°C
CRI: 90+
Warranty: 5 years on LED lamps, 5 years on drivers
Linear Lighting module: Linear LED Strip 24V (IP20 or IP65):
LED Strip
2700K, 3000K, 4000K (3500K on request)
Non-dimmable, 1-10V, Dali/Pushdim

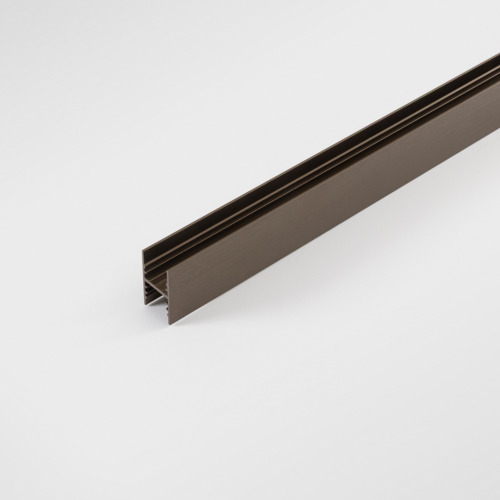

BASE PROFILE SLD20

This profile system consists of an extruded H-shaped base with a polycarbonate diffuser. The base profile is merely 20mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 3 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

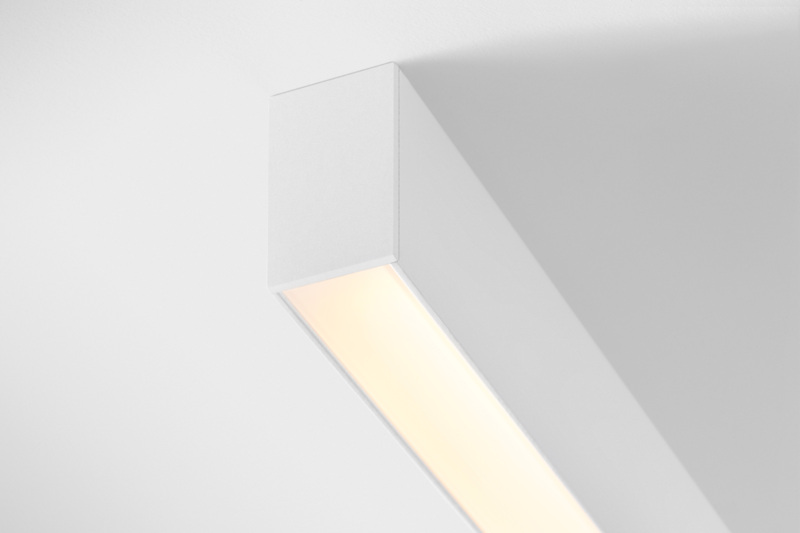

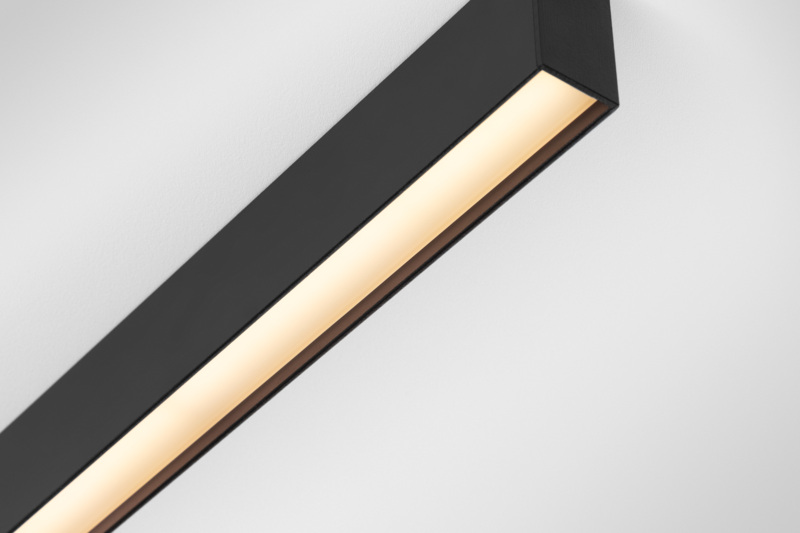

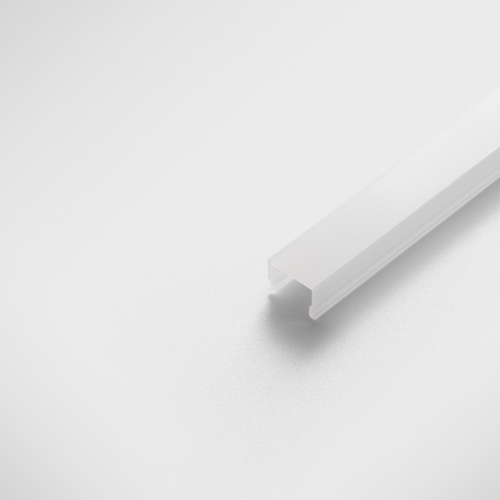

Diffuser SLD20

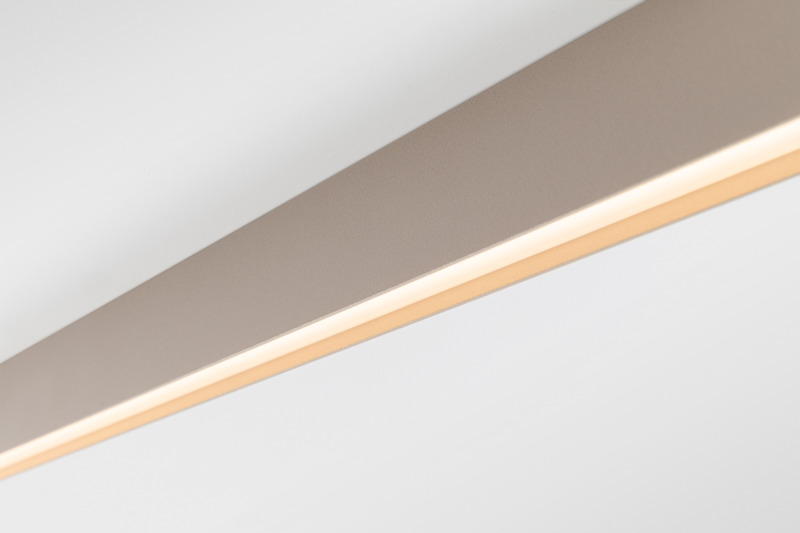

Opt for a diffuser that aligns seamlessly with the profile surface for a sleek, minimalist look, or go for a slightly recessed diffuser that creates a soft glow along the inner edges.

Made to measure. Made for you.

Profiles systems are made-to-measure to give you the possibility to match perfectly the requirements of your project. Choose a base profile, add lighting modules, accessories and controls to make profile systems work just the way you want. Start configuring and discover them all.

Configure now
