12181204

IP55 LED 1800-3000K WD DE Cast Grey Matt

350mA 33.8Vf 12W 247lm 28lm/W CRI95

Specifications

Cut-Out Size (mm): ø200
Mounting Depth (mm): 100
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 55

LED Type: LED COB
Light Sources: 1
Colour Temperature: 1800-3000K (Warm Dim)
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours

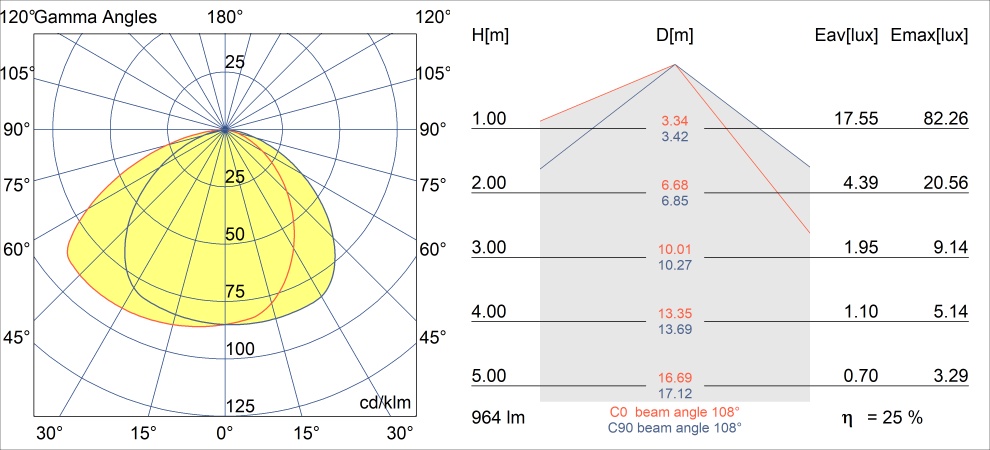

CIE Flux Code: 47, 81, 97, 100, 26

Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: Not applicable
Gross Weight (g): 1080
Net Weight (g): 860

Drive Current (mA)

350

Delivered Lumens (lm)

247

LED Connected Load (W)

Min. LED Fwd Voltage (Vf)

30.6

Max. LED Fwd Voltage (Vf)

Efficacy (lm/W)

Glare Rating (UGR)

1. Led Drivers

Required

350mA

Article no.	Driver	Min products	Max products	Dimension
11630030	LED Driver Constant Current Deep Dim DALI 350mA 20W	1	1	160 x 41.5 x 30.5
11630330	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W	1	1	160 x 41.5 x 30.5
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	2	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	1	111 x 35 x 20
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	1	1	111 x 52 x 22
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	2	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	2	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	1	146.5 x 44 x 30
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	1	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	1	1	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	1	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	1	3	124 x 79 x 22
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	1	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	2	124 x 79 x 22
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	2	124 x 79 x 22

Be aware! Not suitable for 'Acoustic Tiles'

Required

Recessed Ring

12182230

Ring Recessed Trimless 177 1x

Be aware! Not suitable for 'Stretched Fabric'

Be aware! Not suitable for 'Wood'

Exposed Brick
Exposed Concrete
Plastered Brick/Concrete

Be aware! Not suitable for 'Exposed Brick'

Required

Concrete Kit

12182130

Concrete Kit 177 290x280 1x

Required

Concrete Ring

12182330

Concrete Ring 177 Standard Installation Housing

Installation Housing

12182030

Installation Housing 280x350x100x380

Required

Plaster Kit

12292930

Plaster Kit Trimless 290x280 - 177 1x

Gypsum Fibreboard

12293030

Gypsum Fibreboard 290x280

Installation Housing

12182030

Installation Housing 280x350x100x380

Concrete
Tile
Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Decorative Accessories

Shellby Skin

12183041

Skin Shellby Champagne Anodised

12183042

Skin Shellby Gold Anodised

12183082

Skin Shellby Bronze Anodised

12183084

Skin Shellby Silver Bronze Anodised

12183092

Skin Shellby Pearly White Matt

4. Smart Lighting Accessories

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000152

Switch Dimmer Hue White

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White
