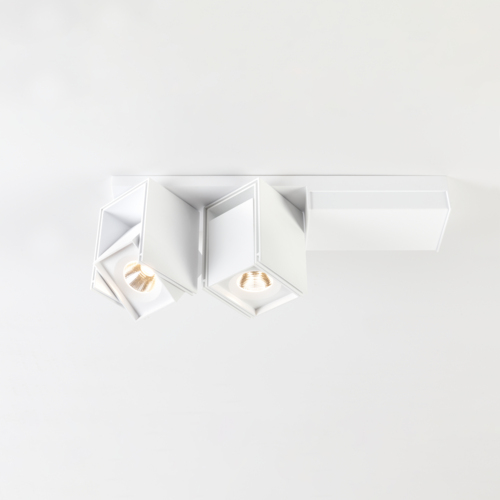

Rektor Rektor SurfaceAdjustable 78x78 2x

14247009
LED 3000K Medium 1-10V/Push-Dim DI White Structure - White Structure
25.7W 900lm 70lm/W CRI90
Rektor Surface Adjustable 78x78 2x
Datasheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_142450XX_V0.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
Luminous flux per lamp (lm)
900
Luminaire Power (W)
25.7
Efficacy (lm/W)
70
Glare Rating (UGR)
22
LED Type
LED COB
Light Sources
2
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
22.9
Electrical Class
I
Dimming Protocol
1-10v, Push-dim
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v -90°/+90°
Gross Weight (g)
2300
Net Weight (g)
2011
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED COB
Light Sources
2
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B20 @50,000 Hours
Measured Beam Angle (°)
22.9
Electrical Class
I
Dimming Protocol
1-10v, Push-dim
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v -90°/+90°
Gross Weight (g)
2300
Net Weight (g)
2011
Luminous flux per lamp (lm)
900
Luminaire Power (W)
25.7
Efficacy (lm/W)
70
Glare Rating (UGR)
22

1. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files

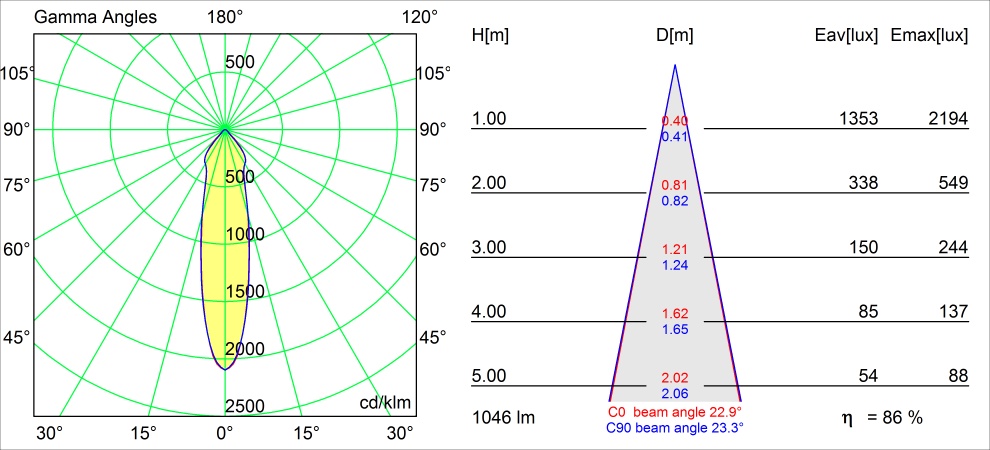

  • POLAR files
    • CRI_1010802_VERO13 927.jpg
    • CRI_1010592_VERO13 930.jpg
    • CRI_1011323_VERO13 935.JPG
    • CRI_1011211_VERO13 940.jpg
    • TM30_1010802_VERO13 927.jpg
    • TM30_1010592_VERO13 930.jpg
    • TM30_1011323_VERO13 935.JPG
    • TM30_1011211_VERO13 940.jpg
  • Tender text
    • REACH_REKTOR_06.pdf
    • CE_14247009_04.pdf
    • UKCA_14247009_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_142450XX_SURF_REKTOR-2XLED-GI_V0.dwg
    • CAD2D_SURF_REKTOR_V3.dwg
    • OBJ_142450XX_SURF_REKTOR-2XLED-GI_01.obj
    • 3DS_142450XX_SURF_REKTOR-2XLED-GI_01.3ds
    • FBX_142450XX_SURF_REKTOR-2XLED-GI_01.fbx
    • SKP_130581XX_SURF_MARBUL-3XLED_01.skp
    • ELABEL_BridgeluxVero13_4000K.pdf
    • ELABEL_BridgeluxVero13_3500K.pdf
    • ELABEL_BridgeluxVero13_3000K.pdf
    • ELABEL_BridgeluxVero13_2700K.pdf
