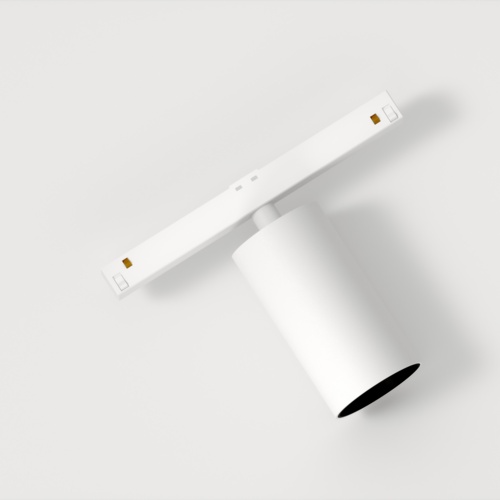

Nyto Nyto Track 48VAdjustable 50 1x

13840809
LED 2700K Medium DALI White Structure
19.3W 1234lm 64lm/W CRI90
Nyto Track 48V Adjustable 50 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications

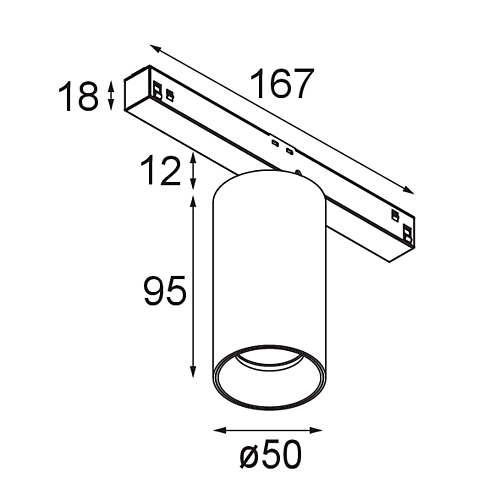

LINED_138401XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
Luminous flux per lamp (lm)
1234
Luminaire Power (W)
19.3
Efficacy (lm/W)
64
Glare Rating (UGR)
14
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
28
CIE Flux Code
99, 100, 100, 100, 91
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 0°/+90°
Gross Weight (g)
309
Net Weight (g)
244
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
28
CIE Flux Code
99, 100, 100, 100, 91
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI-2
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 0°/+90°
Gross Weight (g)
309
Net Weight (g)
244
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
Luminous flux per lamp (lm)
1234
Luminaire Power (W)
19.3
Efficacy (lm/W)
64
Glare Rating (UGR)
14

1. Smart Lighting Accessories

Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Downloads

Download all ;
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1015283_V6HD-G8 927.JPG
    • CRI_1015285_V6HD-G8 935.JPG
    • CRI_1015284_V6HD-G8 930.JPG
    • CRI_1015286_V6HD-G8 940.JPG
    • TM30_1015284_V6HD-G8 930.JPG
    • TM30_1015285_V6HD-G8 935.JPG
    • TM30_1015283_V6HD-G8 927.JPG
    • TM30_1015286_V6HD-G8 940.JPG
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD2D_TRACK_48V_NYTO_01.dwg
    • SKP_138401XX_NYTO_TRACK_48V_ADJ 50_1_10V_01.skp
    • CAD3D_138401XX_NYTO_TRACK_48V_ADJ 50_1_10V_01.dwg
    • 3DS_138401XX_NYTO_TRACK_48V_ADJ 50_1_10V_01.3ds
    • FBX_138401XX_NYTO_TRACK_48V_ADJ 50_1_10V_01.fbx
    • OBJ_138401XX_NYTO_TRACK_48V_ADJ 50_1_10V_01.obj
    • ELABEL_Bridgelux_V6HDG8_2700K.pdf
    • ELABEL_Bridgelux_V6HDG8_3000K.pdf
    • ELABEL_Bridgelux_V6HDG8_3500K.pdf
    • ELABEL_Bridgelux_V6HDG8_4000K.pdf
    • REACH_NYTO_06.pdf
    • EPD_NYTO TRACK 48V ADJUSTABLE 50 1X_EU_01.pdf
    • UKCA_13840809_02.pdf
    • CE_13840809_04.pdf

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended
