13824009

LED 2700K Spot DE White Structure

350mA 11.7Vf 4.1W 374lm 91lm/W CRI90

Specifications

Cut-Out Size (mm): ø40
Mounting Depth (mm): 110
Light Source Type: LED
Lamp Included: Yes
Input Voltage: Constant current driver required
IP Rating: 20

LED Type: LED COB
Light Sources: 1
Colour Temperature: 2700K
Binning (SDCM): 3
Lifetime: L80B10 @50,000 Hours

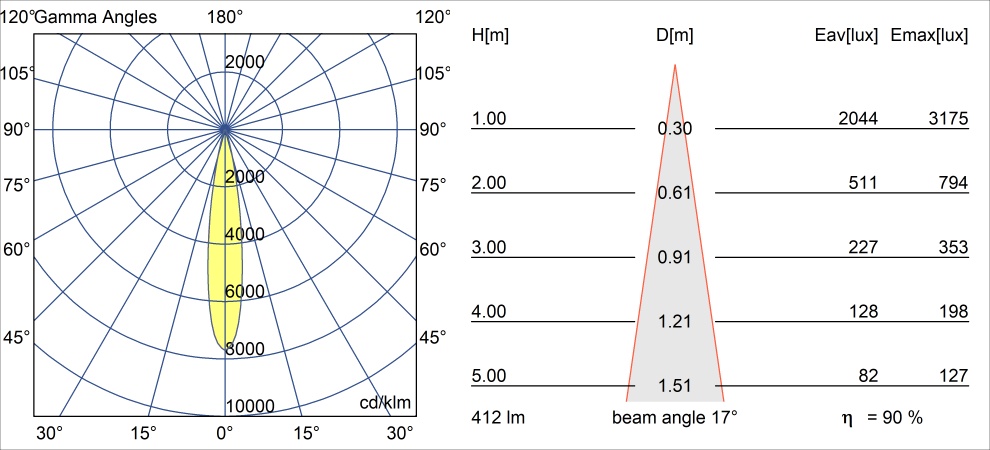

Measured Beam Angle (°): 17

CIE Flux Code: 100, 100, 100, 100, 91
Electrical Class: III
Glow Wire Rating: 960°C
Indoor/Outdoor: Indoor
Adjustability: H 360° v 0°/+90°
Gross Weight (g): 191

Net Weight (g): 110

Drive Current (mA)

350

Delivered Lumens (lm)

374

LED Connected Load (W)

4.1

Min. LED Fwd Voltage (Vf)

11.4

Max. LED Fwd Voltage (Vf)

12.2

Efficacy (lm/W)

Glare Rating (UGR)

1. Led Drivers

Required

350mA

Article no.	Driver	Min products	Max products	Dimension
11630030	LED Driver Constant Current Deep Dim DALI 350mA 20W	1	3	160 x 41.5 x 30.5
11630330	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W	1	3	160 x 41.5 x 30.5
11630630	LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD	1	8	152.5 x 76.2 x 30.1
11630930	LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD	1	8	152.5 x 76.2 x 30.1
11631430	LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W	1	3	111 x 35 x 20
12400330	LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W	1	3	166 x 46 x 34
12403430	LED Driver Constant Current Non-Dim 350-1050mA 25-50W	1	6	124 x 79 x 22
12404230	LED Driver Constant Current Trailing Edge 350mA 18W	3	4	111 x 52 x 22
12404830	LED Driver Constant Current Trailing Edge 350mA 5-10W	2	2	102 x 39 x 21
12405630	LED Driver Constant Current DALI 300-1050mA 16-36W	1	4	146.5 x 44 x 30
12406530	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD	1	6	124 x 79 x 22
12406630	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD	1	6	124 x 79 x 22
12406730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W	1	6	124 x 79 x 22
12406830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W	1	6	124 x 79 x 22
12407130	LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W	1	4	146.5 x 44 x 30
12407630	LED Driver Constant Current DALI 250-900mA 10-20W	1	4	110.4 x 52 x 22
12407730	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W	2	4	110.4 x 52 x 22
12407830	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W	2	9	124 x 79 x 22
12407930	LED Driver Constant Current DALI 250-700mA 10-20W WD	1	4	110.4 x 52 x 22
12408030	LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD	2	4	111 x 52 x 22
12408130	LED Driver Constant Current DALI 250-700mA 15-32W WD	1	3	103 x 67 x 21
12408330	LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD	2	9	124 x 79 x 22
12409130	LED Driver Constant Current 0-10V/1-10V 350-700mA 12W	1	1	135 x 30 x 20
12409330	LED Driver Constant Current DALI 350mA 10W	1	2	145 x 31 x 21
13470030	LED Driver Constant Current Casambi 300-1050mA 16-38W	1	4	146.5 x 44 x 30
13470130	LED Driver Constant Current Casambi 350-1050mA 25-60W	1	6	124 x 79 x 22
13550130	LED Driver Constant Current Non-Dim 350mA 15W	1	3	115 x 34 x 19
13551630	LED Driver Constant Current Deep Dim DALI 350-700mA 12W	1	1	135 x 30 x 20
13630100	LED Driver Constant Current Zigbee 350-1050mA 25-60W	1	6	124 x 79 x 22

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Exposed Brick
Exposed Concrete
Plastered Brick/Concrete

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Installation Housing

10889530

Installation Housing 123x100x80

Plaster Kit

12293130

Plaster Kit 100x120-40 1x

Concrete
Tile
Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Smart Lighting Accessories

Casambi Switch

13470109

Switch Casambi White

Hue Bridge

70000616

Bridge Hue EU White

70000617

Bridge Hue UK White

Hue Module

13190230

Dim Module Hue 0-10V/1-10V 150-300W

Hue Sensor

70000191

Motion Sensor Hue Outside Black

70008054

Motion Sensor Hue White

Hue Switch

70000152

Switch Dimmer Hue White

70000154

Switch Niko Pure Hue White Steel

70000155

Switch Niko Pure Hue Black Steel

70000213

Switch Smart Button Hue White

70000214

Switch Wall Module Hue

70000223

Switch Dimmer Hue White

Zigbee Module

13630200

Dim Module Zigbee DALI
