Technical overview

Spec sheet

Need technical information about this profile system? Click to download a dedicated spec sheet.

Download

Dimensions: 36mm x 78mm (h x w)
Base thickness: 1.5mm
Techniques:: Ceiling
Indoor/Outdoor: Indoor
Finish: Fine structured scratch resistant powder coating: black, white
IP rating: IP20

Glow Wire Test: 960°C
CRI: 90+
Warranty: 5 years on LED lamps, 5 years on drivers
Linear Lighting module: High power LED line
2700K, 3000K, 4000K
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
Spot Lighting module: LED Down:
LED Array:
Medium (25°), Flood (40°)
2700K, 3000K
Non-dimmable, Trailing edge, 1-10V/Pushdim, Dali

Rektor LED:
LED Array
h 360° v -90°/+90° adjustable
Medium (25°), Flood (40°)
2700K, 3000K, 4000K
Non-dimmable, Trailing edge, 1-10V/Pushdim, Dali

Base Profiles
Profile Covers
Diffusers

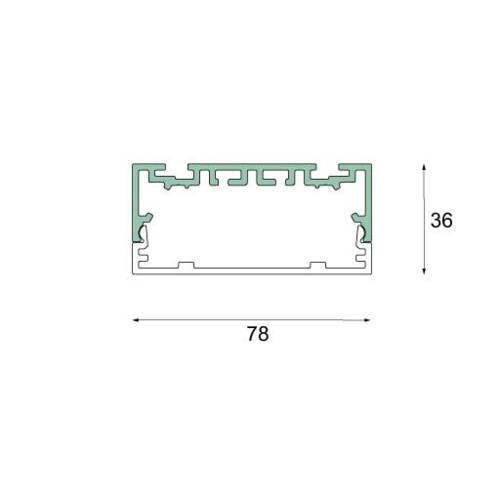

Base Profile MP78

This base profile is merely 2mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

Cover MP78

This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile.

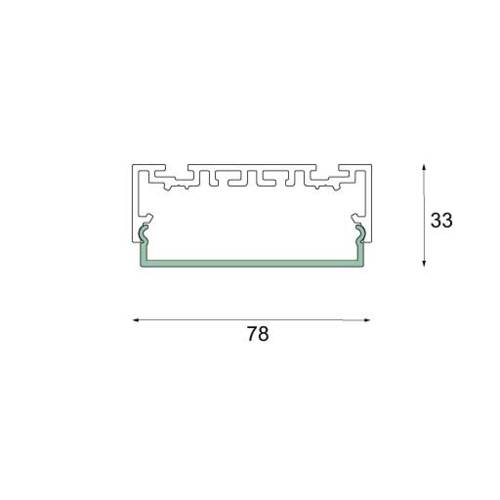

Diffuser MP78

Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

Made to measure. Made for you.

Profiles systems are made-to-measure to give you the possibility to match perfectly the requirements of your project. Choose a base profile, add lighting modules, accessories and controls to make profile systems work just the way you want. Start configuring and discover them all.
