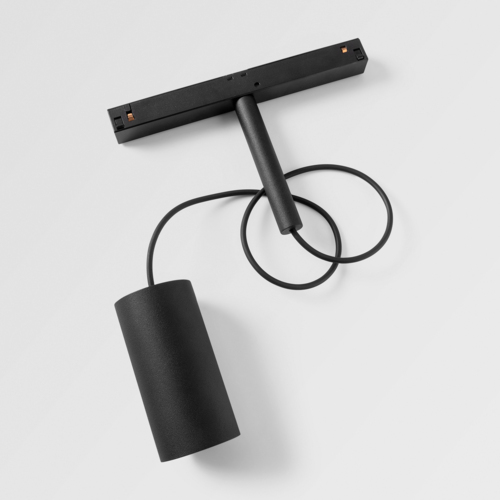

Minude Track 48V Suspended 45 1x
11462132
LED 2700K Medium DALI Black Structure
Specifications
Specifications
- Light Source Type
- LED
- Lamp Included
- Yes
- Input Voltage
- 48vdc
- IP Rating
- 20
- LED Type
- LED COB
- Light Sources
- 1
- Colour Temperature
- 2700K
- Binning (SDCM)
- 2
- Lifetime
- L80B10 @50,000 Hours
- Measured Beam Angle (°)
- 28.9
- CIE Flux Code
- 100, 100, 100, 100, 70
- Electrical Class
- III
- Dimming Protocol
- Dali
- DALI Standard
- DALI version-1
- Glow Wire Rating
- 960°C
- Indoor/Outdoor
- Indoor
- Adjustability
- Not applicable
- Gross Weight (g)
- 458
- Net Weight (g)
- 300
- Delivered Lumens (lm)
-
579 - Luminaire Power (W)
-
11 - Efficacy (lm/W)
-
53 - Glare Rating (UGR)
-
1
- White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
- This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.

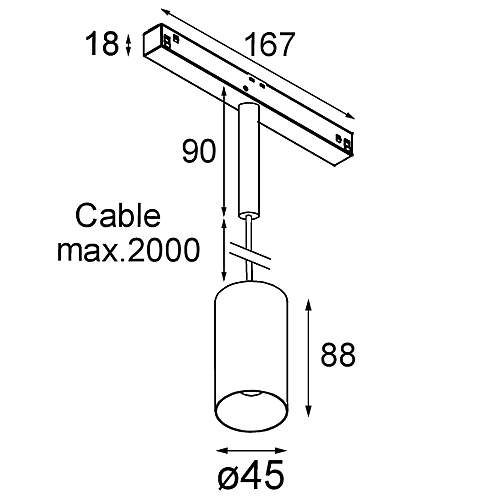

- Longer suspension cable on request (standard length is 2 meter)
1. Smart Lighting Accessories
1. Smart Lighting Accessories
Casambi Module 48V
Casambi Switch
13470109
Hue Bridge
70000616
70000617
Hue Sensor
70000191
70008054
Hue Switch
70000152
70000154
70000155
70000213
70000214
70000223
Zigbee Module
13630200
Downloads
Downloads
- Datasheet
- Installation instructions
- LDT files
- IES files
- POLAR files
- Tender text
- CAD 3D files
-
- CAD3D_114620XX_SURF_MINUDE-SUSPENSION_01.dwg
- CAD2D_SURF_MINUDE_03.dwg
- FBX_114620XX_SURF_MINUDE-SUSPENSION_01.fbx
- OBJ_114620XX_SURF_MINUDE-SUSPENSION_01.obj
- SKP_114620XX_SURF_MINUDE-SUSPENSION_01.skp
- 3DS_114620XX_SURF_MINUDE-SUSPENSION_01.3ds
- OBJ_114620XX_SURF_MINUDE-SUSPENSION_01.obj
- SKP_114620XX_SURF_MINUDE-SUSPENSION_01.skp
- 3DS_114620XX_SURF_MINUDE-SUSPENSION_01.3ds
- FBX_114620XX_SURF_MINUDE-SUSPENSION_01.fbx
