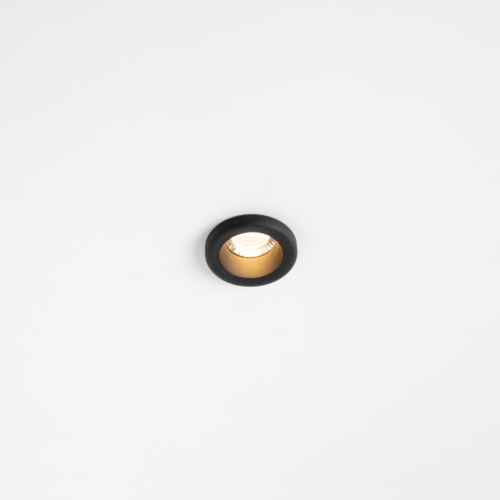

Medard Recessed 42 1x

11550532
IP55 LED 1800-3000K WD Flood DE Black Structure
350mA 17Vf 6W 342lm 57lm/W CRI95
1800-3000K (Warm Dim) LED Flood (30-50°) Remote Driver Excluded
Medard Recessed 42 1x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Compatible with Downloads

Specifications
LINED_115500XX_01.pdf
Cut-Out Size (mm)
ø40
Mounting Depth (mm)
65
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
1800-3000K (Warm Dim)
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours

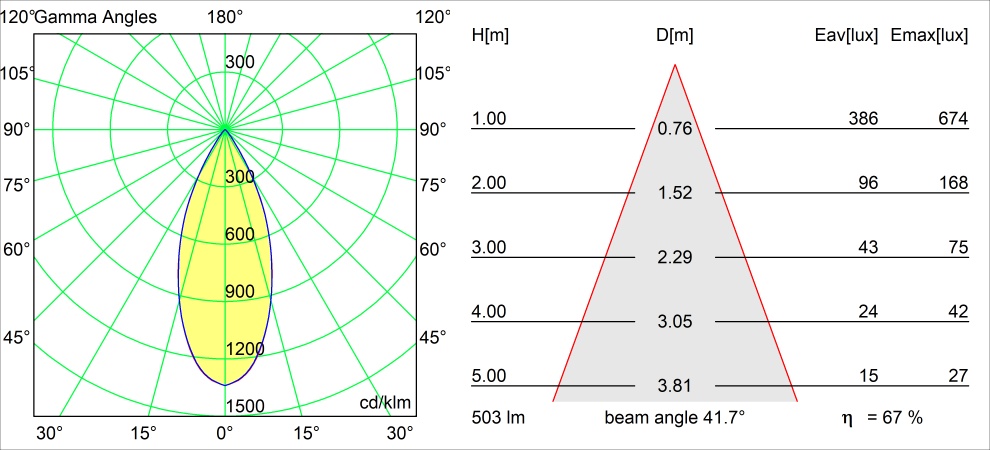

Measured Beam Angle (°)
41.7
CIE Flux Code
99, 100, 100, 100, 68
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
106
Net Weight (g)
85
Drive Current (mA)
350
Delivered Lumens (lm)
342
LED Connected Load (W)
6
Min. LED Fwd Voltage (Vf)
15.5
Max. LED Fwd Voltage (Vf)
18.5
Efficacy (lm/W)
57
Glare Rating (UGR)
18
  • 4000K on request
Modular logo Go to top 1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories 4 Back-Up Units

1. Led Drivers

Required
350mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630030 LED Driver Constant Current Deep Dim DALI 350mA 20W 1 2 160 x 41.5 x 30.5
11630330 LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 20W 1 2 160 x 41.5 x 30.5
11630630 LED Driver Constant Current Deep Dim DALI 350mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11630930 LED Driver Constant Current Deep Dim 0-10V/1-10V 350mA 50W 2 LED Output WD 1 4
152.5 x 76.2 x 30.1
11631430 LED Driver Constant Current Deep Dim Trailing Edge 350-700mA 15W 1 2 111 x 35 x 20
12404230 LED Driver Constant Current Trailing Edge 350mA 18W 2 2 111 x 52 x 22
12404830 LED Driver Constant Current Trailing Edge 350mA 5-10W 1 1 102 x 39 x 21
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 4 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 2 146.5 x 44 x 30
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 2 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 2 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 2 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 2 6 124 x 79 x 22
12409130 LED Driver Constant Current 0-10V/1-10V 350-700mA 12W 1 1 135 x 30 x 20
12409330 LED Driver Constant Current DALI 350mA 10W 1 1 145 x 31 x 21
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 2 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 4 124 x 79 x 22
13551630 LED Driver Constant Current Deep Dim DALI 350-700mA 12W 1 1 135 x 30 x 20
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 4 124 x 79 x 22
Show more

2. Installation Accessories
  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Installation Housing

Installation Housing

10889530
Installation Housing 123x100x80
Plaster Kit

Plaster Kit

12293130
Plaster Kit 100x120-40 1x
  1. Concrete
  2. Tile
  3. Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units
Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
  • CRI files
  • TM30 files
  • Tender text
    • REACH_MEDARD_06.pdf
    • CE_11550532_04.pdf
    • UKCA_11550532_02.pdf
  • Line drawings
  • SKP files
    • CAD3D_115500XX_REC_MEDARD-42-REC_01.dwg
    • OBJ_115500XX_REC_MEDARD-42-REC_01.obj
    • SKP_115500XX_REC_MEDARD-42-REC_01.skp
    • 3DS_115500XX_REC_MEDARD-42-REC_01.3ds
    • FBX_SURF_129010XX_SMART-SURFACE-TUBED-WALL-48_1XLED_01.fbx
  • Energy Label
