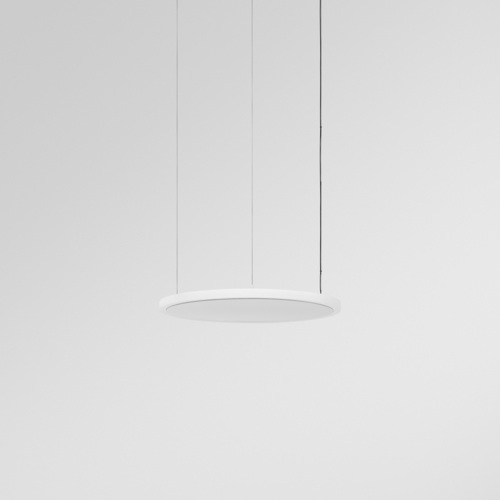

Geometry Geometry SuspendedAdjustable 672 1x

13750063
LED 3000K DE White Structure - Silver Chrome
Geometry Suspended Adjustable 672 1x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories
Compatible with Downloads

Specifications
LINED_137500XX_01.pdf
Light Source Type
LED
Input Voltage
24vdc
IP Rating
20
Luminous flux per lamp (lm)
2317
LED Connected Load (W)
21
Efficacy (lm/W)
110
Glare Rating (UGR)
20
LED Type
LED flexible PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
112
CIE Flux Code
47, 79, 95, 100, 100
Electrical Class
III
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Gross Weight (g)
13700
Net Weight (g)
9000
Light Source Type
LED
Input Voltage
24vdc
IP Rating
20
LED Type
LED flexible PCB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
112
CIE Flux Code
47, 79, 95, 100, 100
Electrical Class
III
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Gross Weight (g)
13700
Net Weight (g)
9000
Luminous flux per lamp (lm)
2317
LED Connected Load (W)
21
Efficacy (lm/W)
110
Glare Rating (UGR)
20
Modular logo Go to top Led Drivers 1. Installation Accessories 2. Smart Lighting Accessories 3.

1. Led Drivers

Required
Required
LED Driver 24V

LED Driver 24V

12409730
LED Driver Constant Voltage 24V Non-Dim/0-10V/1-10V 60W
12409830
LED Driver Constant Voltage 24V Non-Dim/0-10V/1-10V 100W
13551709
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) DALI/Push-Dim 100W (Incl. Power Feed Cable 2000) White Structure
13551732
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) DALI/Push-Dim 100W (Incl. Power Feed Cable 2000) Black Structure
13551809
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) Non-Dim 100W (Incl. Power Feed Cable 2000) White Structure
13551832
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) Non-Dim 100W (Incl. Power Feed Cable 2000) Black Structure

2. Installation Accessories

Required
Required
Power Feed Canopy

Power Feed Canopy

13720009
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 2000) White Structure
13720032
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 2000) Black Structure
13720109
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 6000) White Structure
13720132
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 6000) Black Structure
13720209
Power Feed Canopy Surface DE (Incl. Power Feed Cable 2000) White Structure
13720232
Power Feed Canopy Surface DE (Incl. Power Feed Cable 2000) Black Structure
13720309
Power Feed Canopy Surface DE (Incl. Power Feed Cable 6000) White Structure
13720332
Power Feed Canopy Surface DE (Incl. Power Feed Cable 6000) Black Structure
Suspension Kit Geometry

Suspension Kit Geometry

11060809
Suspension 4000 Geometry 672 (3) White Structure
11060832
Suspension 4000 Geometry 672 (3) Black Structure
11060909
Suspension 8000 Geometry 672 (3) White Structure
11060932
Suspension 8000 Geometry 672 (3) Black Structure
Mechanical Connection Geometry

Mechanical Connection Geometry

13750000
Connection Mechanical Geometry

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all ;
  • Datasheet
    • INST_137500XX_137510XX_A1_04.pdf
    • INST_137500XX_137510XX_B1_04.pdf
  • LDT files
  • IES files
  • POLAR files
  • CRI files
  • TM30 files
  • Tender text
    • REACH_GEOMETRY_06.pdf
    • EPD_MODULAR_GEOMETRY_SUSPENDED_ADJUSTABLE_672_1X_LED_EU_01.pdf
    • CE_13750063_04.pdf
    • UKCA_13750063_02.pdf
  • Line drawings
  • SKP files
    • CAD2D_SURF_GEOMETRY_01.dwg
    • SKP_137500XX_GEOMETRY-SUSP-ADJ-672 1XLED_01.skp
    • FBX_137500XX_GEOMETRY-SUSP-ADJ-672 1XLED_01.fbx
    • CAD3D_137500XX_GEOMETRY-SUSP-ADJ-672 1XLED_01.dwg
    • OBJ_137500XX_GEOMETRY-SUSP-ADJ-672 1XLED_01.obj
    • 3DS_137500XX_GEOMETRY-SUSP-ADJ-672 1XLED_01.3ds
  • Energy Label
