  1. Go back
Click to share

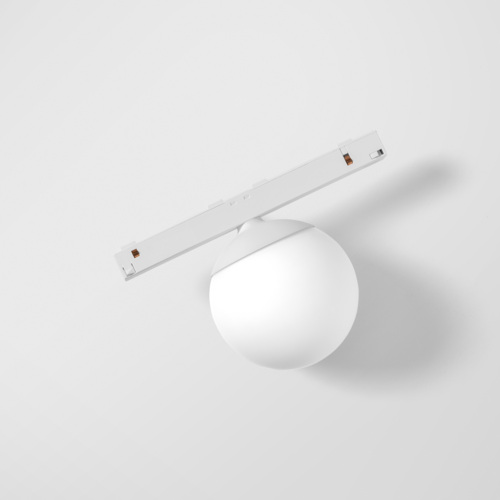

Gamin Track 48V 90 1x

13600109
LED 2700K DALI White Structure
8.5W 676lm 80lm/W CRI90
2700K LED Driver Included
Gamin Track 48V 90 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_136000XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L90B10 @50,000 Hours
CIE Flux Code
27, 53, 77, 65, 78
Electrical Class
III
Dimming Protocol
Dali
DALI Standard
DALI version-1
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
422
Net Weight (g)
282
Delivered Lumens (lm)
676
Luminaire Power (W)
8.5
Efficacy (lm/W)
80
Glare Rating (UGR)
24
  • White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
  • This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.

1. Smart Lighting Accessories
Casambi Module 48V

Casambi Module 48V

13470209
Track 48V Dim Module Casambi DALI In Track White Structure
13470232
Track 48V Dim Module Casambi DALI In Track Black Structure
13470302
Track 48V Dim Module Casambi DALI Remote
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_1014994_V8-G8 927.JPG
    • CRI_1014997_V8-G8 940.JPG
    • CRI_1014996_V8-G8 935.JPG
    • CRI_1014995_V8-G8 930.JPG
    • TM30_1014994_V8-G8 927.jpg
    • TM30_1014995_V8-G8 930.JPG
    • TM30_1014997_V8-G8 940.JPG
    • TM30_1014996_V8-G8 935.JPG
  • Tender text
    • SKP_13600XX_TRACK48V_GAMIN_01.skp
    • SKP_13600XX_TRACK48V_GAMIN_01.skp
    • OBJ_13600XX_TRACK48V_GAMIN_01.obj
    • OBJ_13600XX_TRACK48V_GAMIN_01.obj
    • FBX_13600XX_TRACK48V_GAMIN_01.fbx
    • FBX_13600XX_TRACK48V_GAMIN_01.fbx
  • CAD 3D files
  • Line drawings
    • CAD2D_TRACK48V_GAMIN_01.dwg
    • CAD3D_13600XX_TRACK48V_GAMIN_01.dwg
    • SKP_13600XX_TRACK48V_GAMIN_01.skp
    • OBJ_13600XX_TRACK48V_GAMIN_01.obj
    • 3DS_13600XX_TRACK48V_GAMIN_01.3ds
    • FBX_13600XX_TRACK48V_GAMIN_01.fbx
    • OBJ_13600XX_TRACK48V_GAMIN_01.obj
    • SKP_13600XX_TRACK48V_GAMIN_01.skp
    • 3DS_13600XX_TRACK48V_GAMIN_01.3ds
    • FBX_13600XX_TRACK48V_GAMIN_01.fbx
    • ELABEL_BridgeluxV8G8_4000K_02.pdf
    • ELABEL_BridgeluxV8G8_3000K_03.pdf
    • ELABEL_BridgeluxV8G8_2700K_02.pdf
    • ELABEL_Bridgelux_V8GEN8_3500K.pdf
    • REACH_GAMIN_06.pdf
    • CE_13600109_04.pdf
    • UKCA_13600109_02.pdf
