Smart Smart Cake Recessed160 1x

13004109
FFD_ IP55 LED 3000K Spot DE White Structure
1200mA 34.8Vf 41.8W 3998lm 95lm/W CRI90
Smart Cake Recessed 160 1x
Data sheet Technical support
Request a quote
Specifications
1 Drivers 2 Decorative Accessories 3 Smart Lighting Accessories 4 Back-Up Units
Downloads

Specifications
LINED_1300XXXX_V1.pdf
Cut-Out Size (mm)
ø146
Mounting Depth (mm)
250
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
Drive Current (mA)
500 700 1050 1200 1400
Delivered Lumens (lm)
1821 2480 3559 3998 4603
LED Connected Load (W)
16.3 23.3 36.1 41.8 49.5
Min. LED Fwd Voltage (Vf)
30.5 31.1 32.1 32.5 33
Max. LED Fwd Voltage (Vf)
35.2 35.9 37 37.5 38.1
Efficacy (lm/W)
114 106 98 95 93
Glare Rating (UGR)
15 17 18 18 19
  • 3500K on request
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours

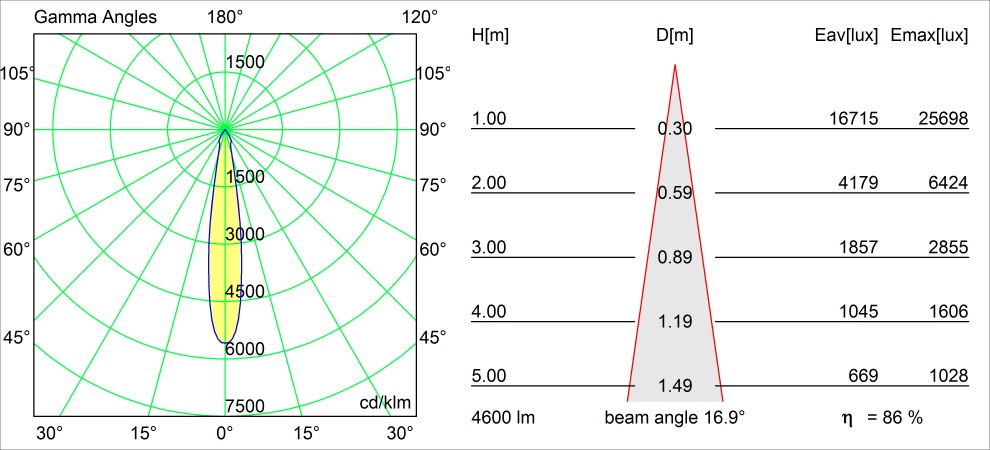

Measured Beam Angle (°)
16.9
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
984
Net Weight (g)
849
Cut-Out Size (mm)
ø146
Mounting Depth (mm)
250
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
55
LED Type
LED COB
Light Sources
1
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours
Measured Beam Angle (°)
16.9
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
984
Net Weight (g)
849
  • 3500K on request
Drive Current (mA)
500 700 1050 1200 1400
Delivered Lumens (lm)
1821 2480 3559 3998 4603
LED Connected Load (W)
16.3 23.3 36.1 41.8 49.5
Min. LED Fwd Voltage (Vf)
30.5 31.1 32.1 32.5 33
Max. LED Fwd Voltage (Vf)
35.2 35.9 37 37.5 38.1
Efficacy (lm/W)
114 106 98 95 93
Glare Rating (UGR)
15 17 18 18 19
Modular logo Go to top Drivers 1. Decorative Accessories 2. Smart Lighting Accessories 3. Back-Up Units 4.

1. Drivers

Required
Required
1200mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
12404030 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 1050-2100mA 45-55W 1 1 129 x 76 x 30
12405730 LED Driver Constant Current Trailing Edge/Push-Dim 1050-2100mA 45-50W 1 1 163 x 93 x 35
Show more

2. Decorative Accessories

Smart Mask 160 1x

Smart Mask 160 1x

13040009
Mask Smart 160 1x White Structure
13040032
Mask Smart 160 1x Black Structure

3. Smart Lighting Accessories

Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

4. Back-Up Units

Back-Up Unit Constant Current

Back-Up Unit Constant Current

12400210
Back-Up Unit Constant Current 1h DE
12400310
Back-Up Unit Constant Current 3h DE
